2.2 Connectors
The MR3000DMS provides rugged cable glands and caps, as it is shown in Figure 2.2.1:
• Power for 100-240VAC power supply or DC/DC (10-36 VDC).
• LAN. In the version for fiber optic connection, a cable gland like in Figure 2.2.1 is
provided. In case the LAN/Ethernet kit is ordered, there is an external RJ45 connector in
which an Ethernet cable can be directly inserted, as shown in Figure 2.2.2.
• GPS to connect an external GPS antenna. If the GPS antenna is not ordered, then the
connector is replaced by a cap, directly inserted in the red box.
• Relays for relay outputs.

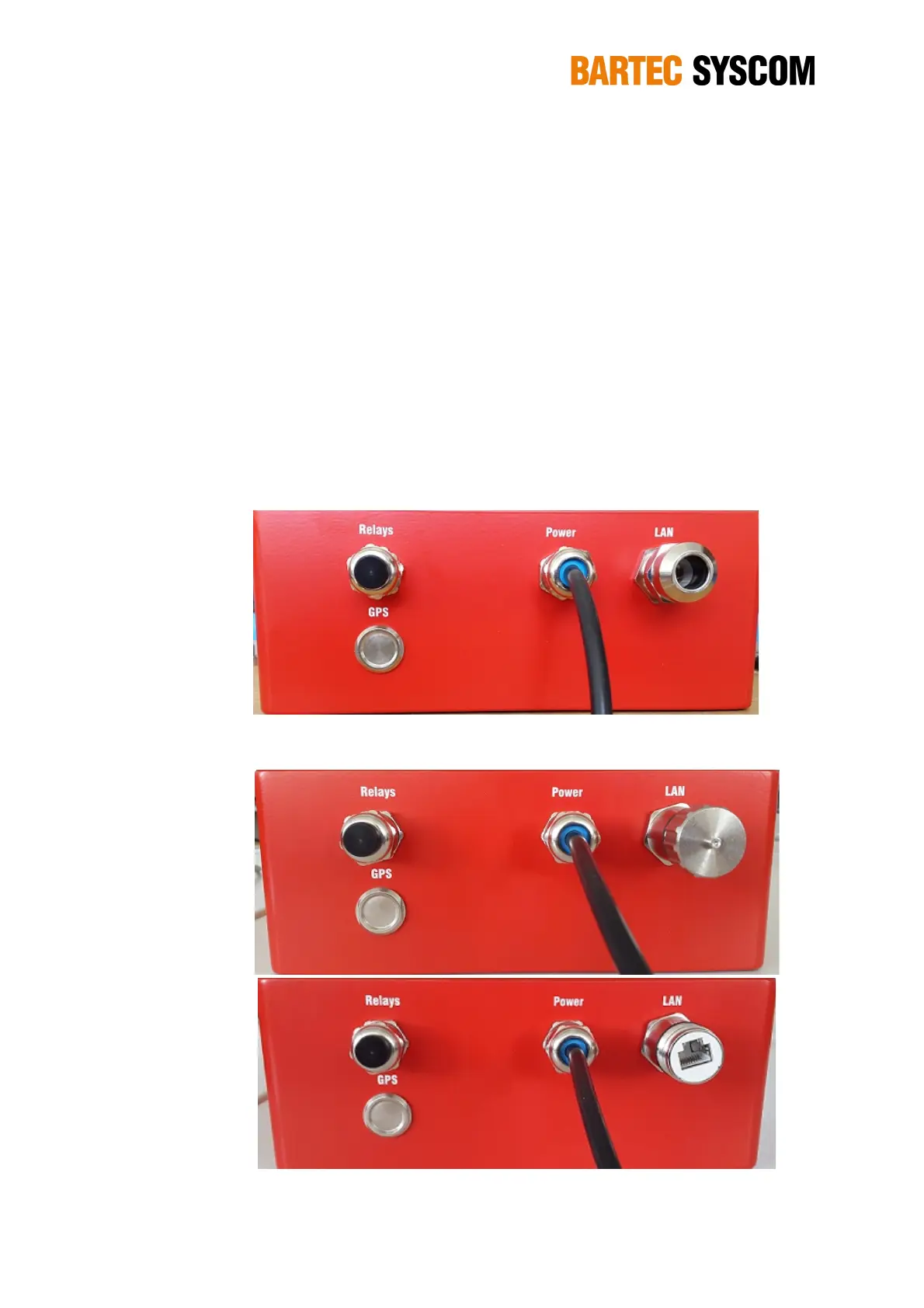

Figure 2.2.1. Face of MR3000DMS showing the sockets for Relays, Power, LAN and GPS, in case of FO kit.
a)
b)
Figure 2.2.2. Face of MR3000DMS showing the sockets for Relays, Power, LAN and GPS, in case of LAN kit,
with and without a cap on the RJ45 connector.
