2.4.12. Terminal label

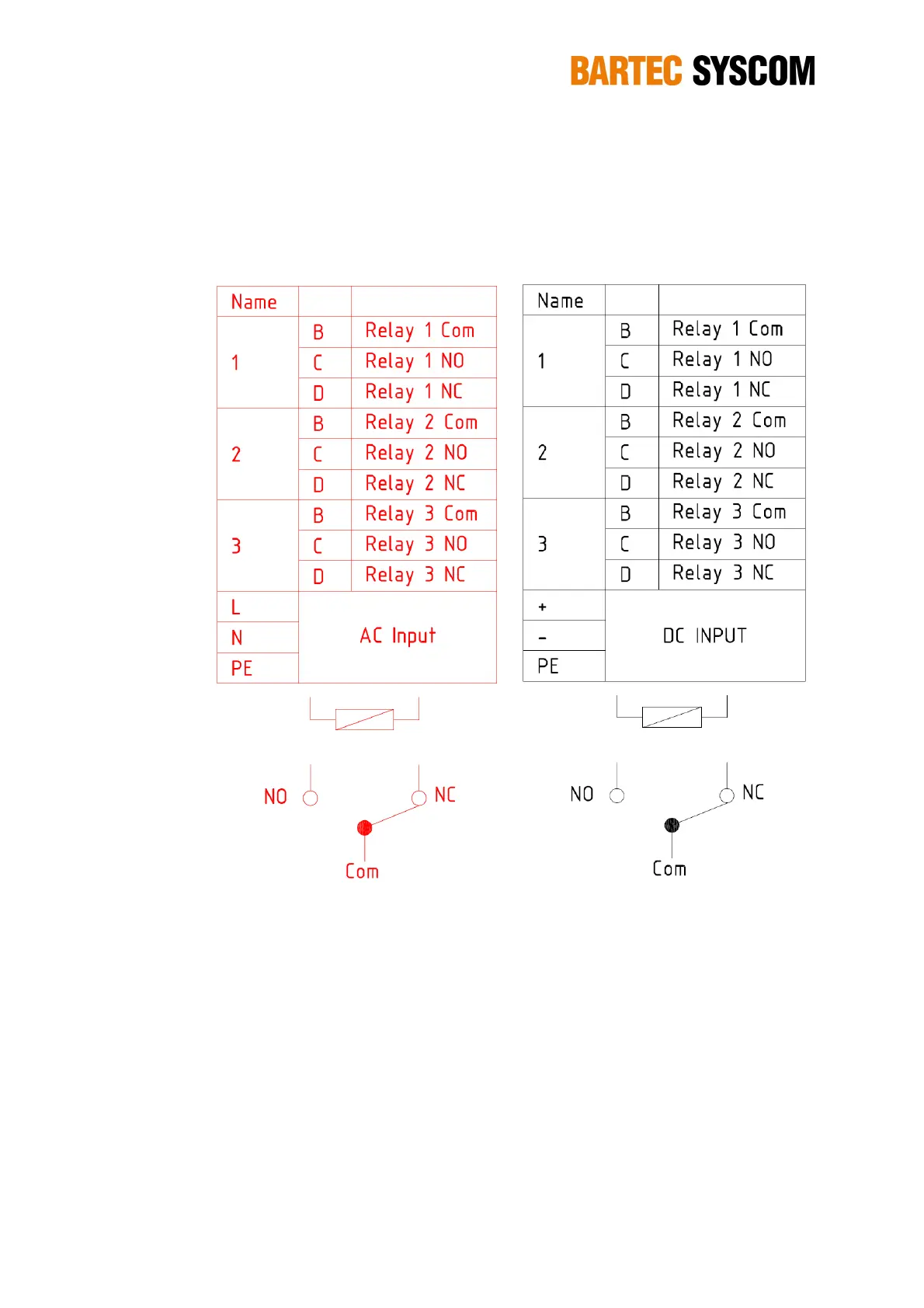

To better understand the terminals and the electric connection of the relays and the AC power, a
label with this information has been placed on the cover of the MR3000DMS. It is also represented
in Figure 2.4.12.
a) b)
Figure 2.4.12. Label with information on the terminals of relay and power for: a) MR3000DMS with AC power;
b) MR3000DMS with DC power.
2.4.13. Axis orientation
The axis orientation of the MR3000DMS depends if the installation is vertical (against a wall) or
horizontal (on the ground). In the Figure 2.4.13 the different configurations are shown.
