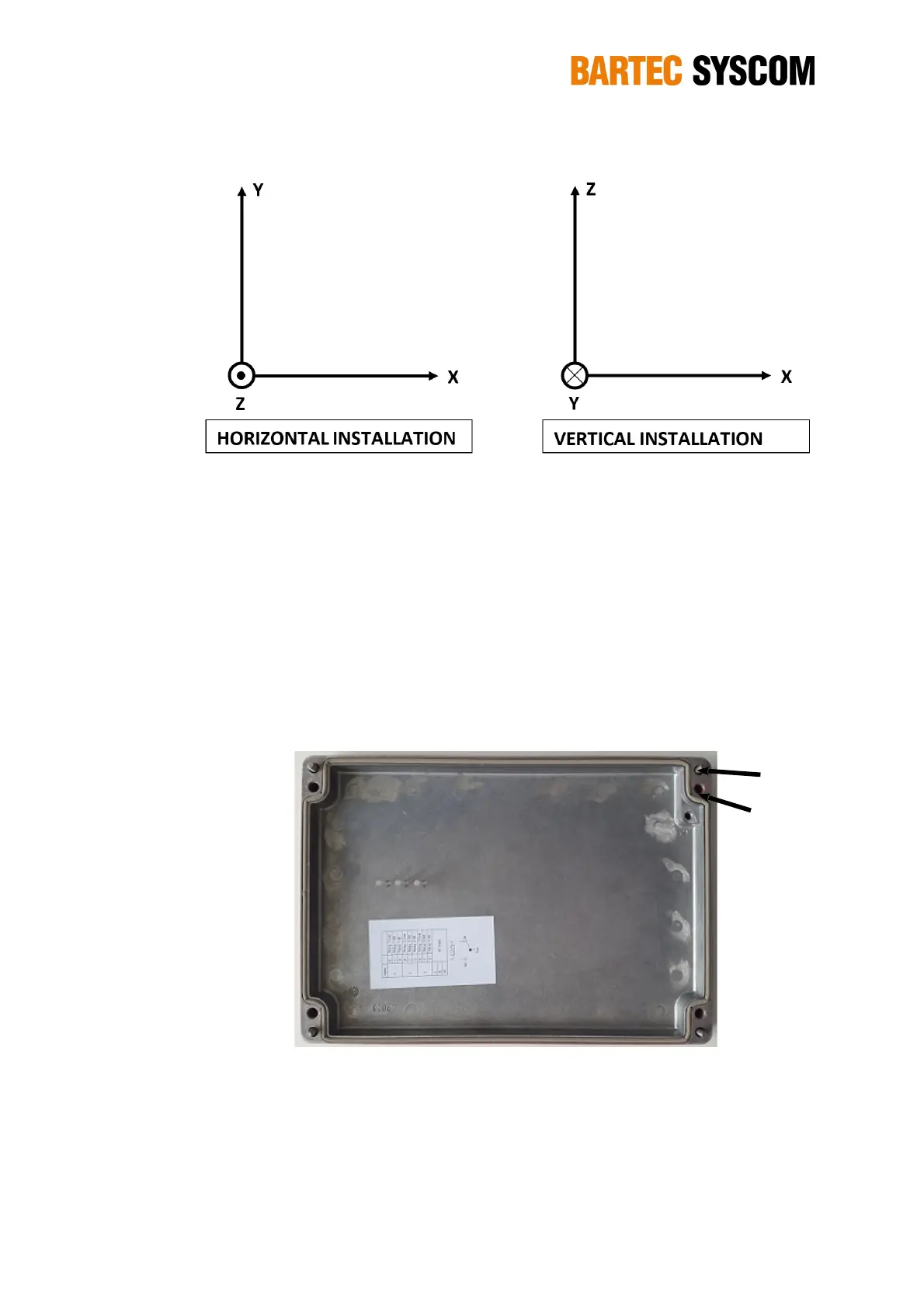

Figure 2.4.13. Axis orientation in case of horizontal and vertical installation.
2.4.14. Installation
For a fixed installation of the DMS, it is possible to directly fix the DMS or to use a mounting plate.
In the first case, the holes (number 1 in the Figures 2.4.14 and 2.4.15) close to the screws (number
2 in the same figures) can be used. The screws are used to fix the cover to the box containing all
the electronics of the DMS.
Figure 2.4.14. Cover part of the DMS, from an internal point of view.
2
1
