TS100 RIDE-ON TROWEL INSTRUCTION MANUAL
BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX 732-566-5444
Created: 06/05
Revised: 06/14
- 18 -
POWERPLANT ASSEMBLY

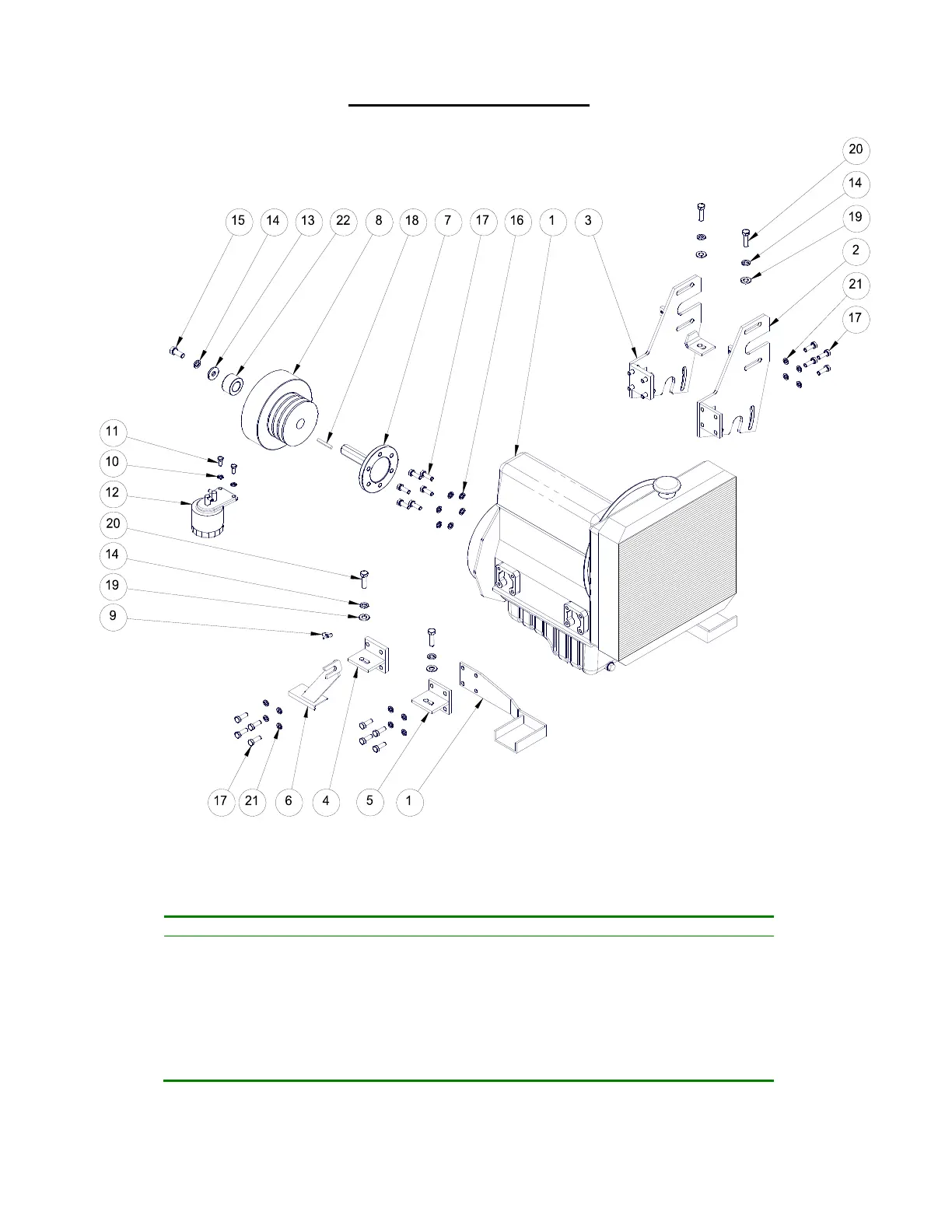

Figure 2 - Complete Powerplant
Item # Description Item # Description Item # Description
1 Engine 9 Ball Joint 17 Hex Bolt
2 Pulley Mnt Brkt 10 Locknut 18 Key
3 Pulley Mnt Brkt 11 Hex Bolt 19 Washer
4 Mounting Brkt 12 Fuel Filter 20 Hex Bolt
5 Mounting Brkt 13 Washer 21 Lockwasher
6 Throttle Bracket 14 Lockwasher 22 Spacer
7 Stub Shaft 15 Hex Bolt
8 Main Pulley 16 Lockwasher
To Next Page
