TS100 RIDE-ON TROWEL INSTRUCTION MANUAL
BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX 732-566-5444
Created: 06/05
Revised: 06/14
- 22 -
STEERING ASSEMBLY

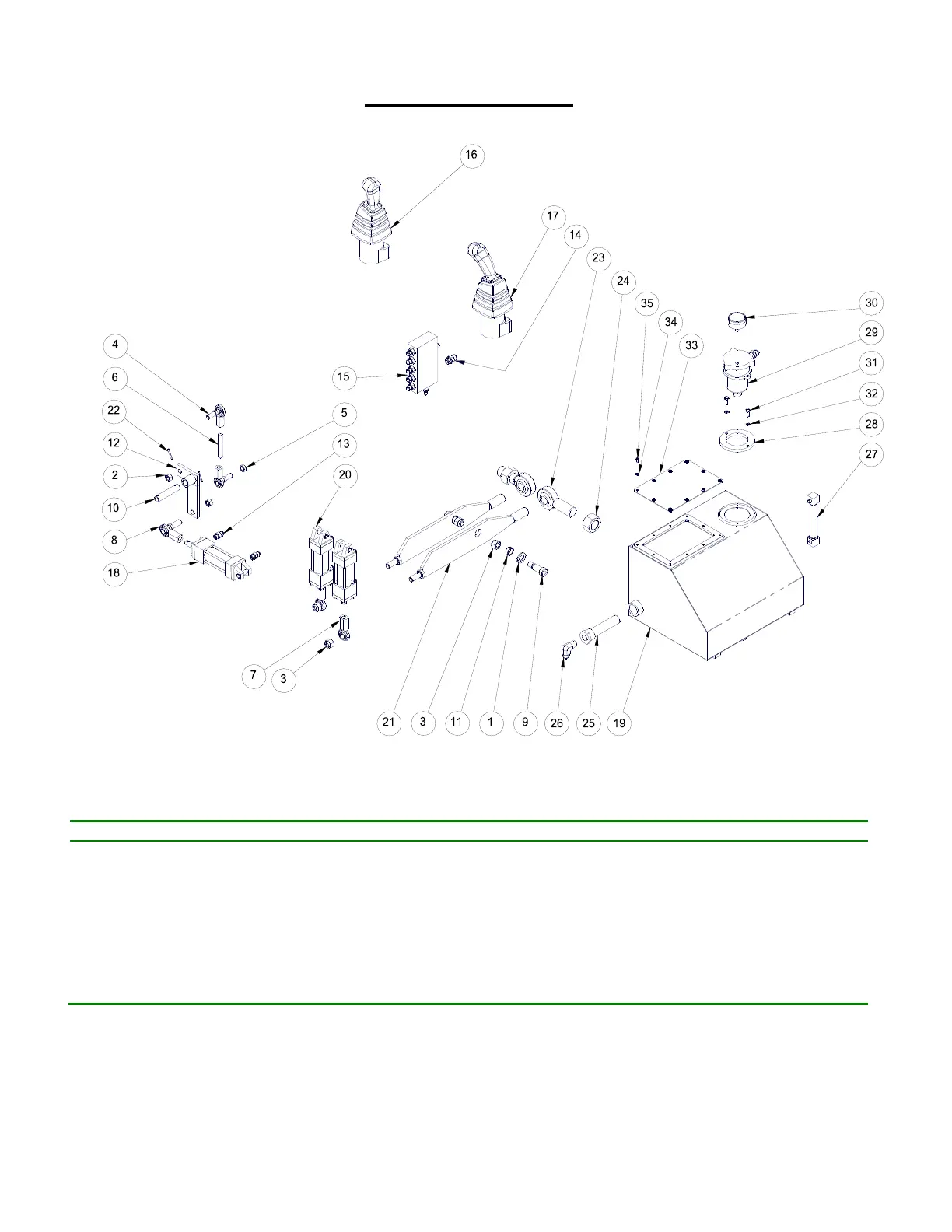

Figure 4 - Complete Steering
Item # Description Item # Description Item # Description Item # Description
1 Washer 10 Lever Pin 19 Oil Tank 28 Spacer
2 Lock Nut 11 Bushing 20 Hyd. Cylinder 29 Filter
3 Lock Nut 12 Lever 21 Pivot Arm 30 Tank Gauge
4 Rod End 13 Fitting Adapter 22 Pin 31 Hex Bolt
5 Jam Nut 14 Fitting Adaptor 23 Rod End 32 Lockwasher
6 Threaded Rod 15 Hyd. Manifold Block 24 Jam Nut 33 Tank Cover
7 Rod End 16 Hyd. Joystick 25 Suction Strainer 34 Lockwasher
8 Rod End 17 Hyd. Joystick 26 Hyd. Hose Ass'y 35 Truss Screw
9 Shoulder Bolt 18 Hyd. Cyclinder 27 Sight Gauge
