RETARDANT SPRAY SYSTEM

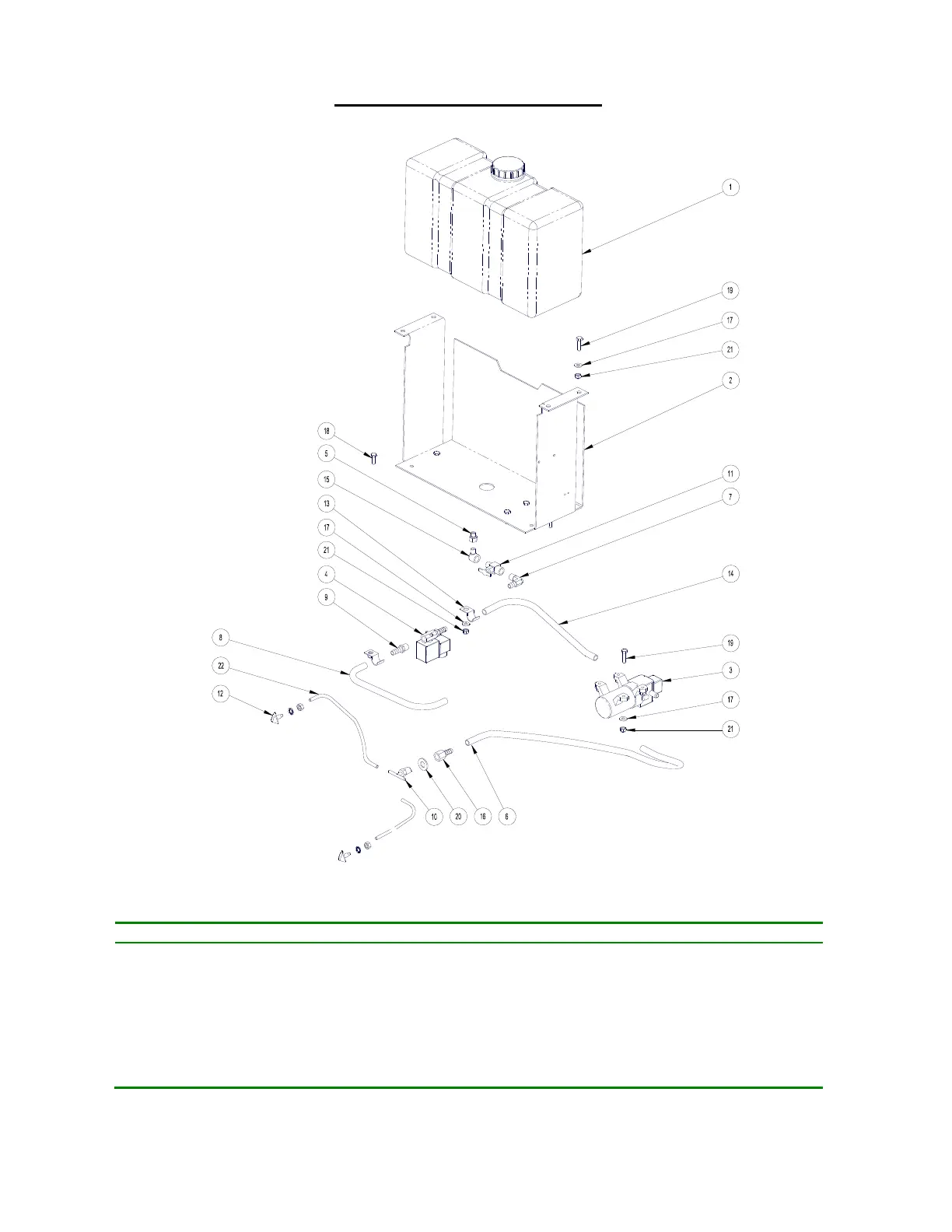

Figure 10 – Spray Kit
Item # Description Item # Description Item # Description
1 Tank 9 Fitting, Hose Barb 17 Washer
2 Tank Bracket 10 Fitting Tee Barb 18 Hex Bolt
3 Pump 11 Needle Valve 19 Hex Bolt
4 Solenoid 12 Spray Nozzle Set 20 Washer
5 Fitting 13 Hose Clamp 21 Lock Nut
6 Hose 14 Hose 22 Tubing
7 Fitting Elbow 15 Fitting Elbow
8 Hose 16 Fitting Hose Barb
