DRIVETRAIN ASSEMBLY

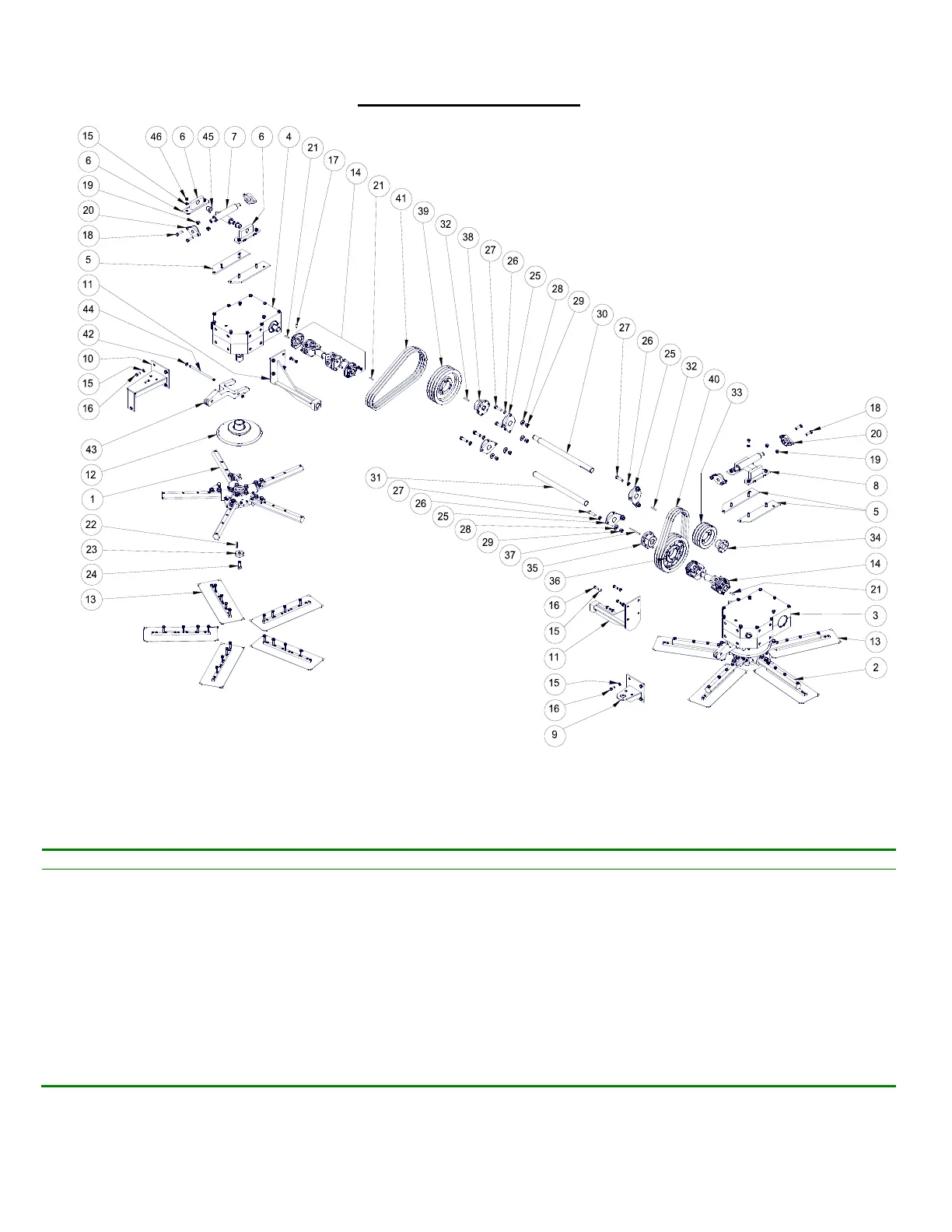

Figure 3 - Complete Drivetrain
Item # Description Item # Description Item # Description Item # Description
1 Spider Plate Ass’y 13 Trowel Blade 25 Flange Bearing 37 Key
2 Spider Plate Ass’y 14 U-Joint Drive 26 Lockwasher 38 Bushing
3 Gear Box Ass’y 15 Lockwasher 27 Hex Bolt 39 Sheave
4 Gear Box Ass’y 16 Hex Bolt 28 Washer 40 Belt
5 Mounting Plate 17 Set Screw 29 Hex Nut 41 Belt
6 Mounting Brkt– RH 18 Hex Bolt 30 Jackshaft 42 Retaining Ring Shaft
7 Pivot Brkt– RH 19 Lock Nut 31 Driveshaft 43 Yoke Arm
8 Mounting Brkt– LH 20 Bearing 32 Key 44 Yoke Arm Pin
9 Pitch Ctrl Brkt– LH 21 Key 33 Sheave 45 Flange Bushing
10 Pitch Ctrl Brkt– RH 22 Key 34 Bushing 46 Hex Nut
11 Control Arm 23 Retainer 35 Bushing
12 Pressure Plate 24 Socket Screw 36 Sheave
