Bartell TS100 - SPIDER PLATE ASSEMBLY

TS100 RIDE-ON TROWEL INSTRUCTION MANUAL
BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX 732-566-5444
Created: 06/05
Revised: 06/14
- 28 -
10
20
30

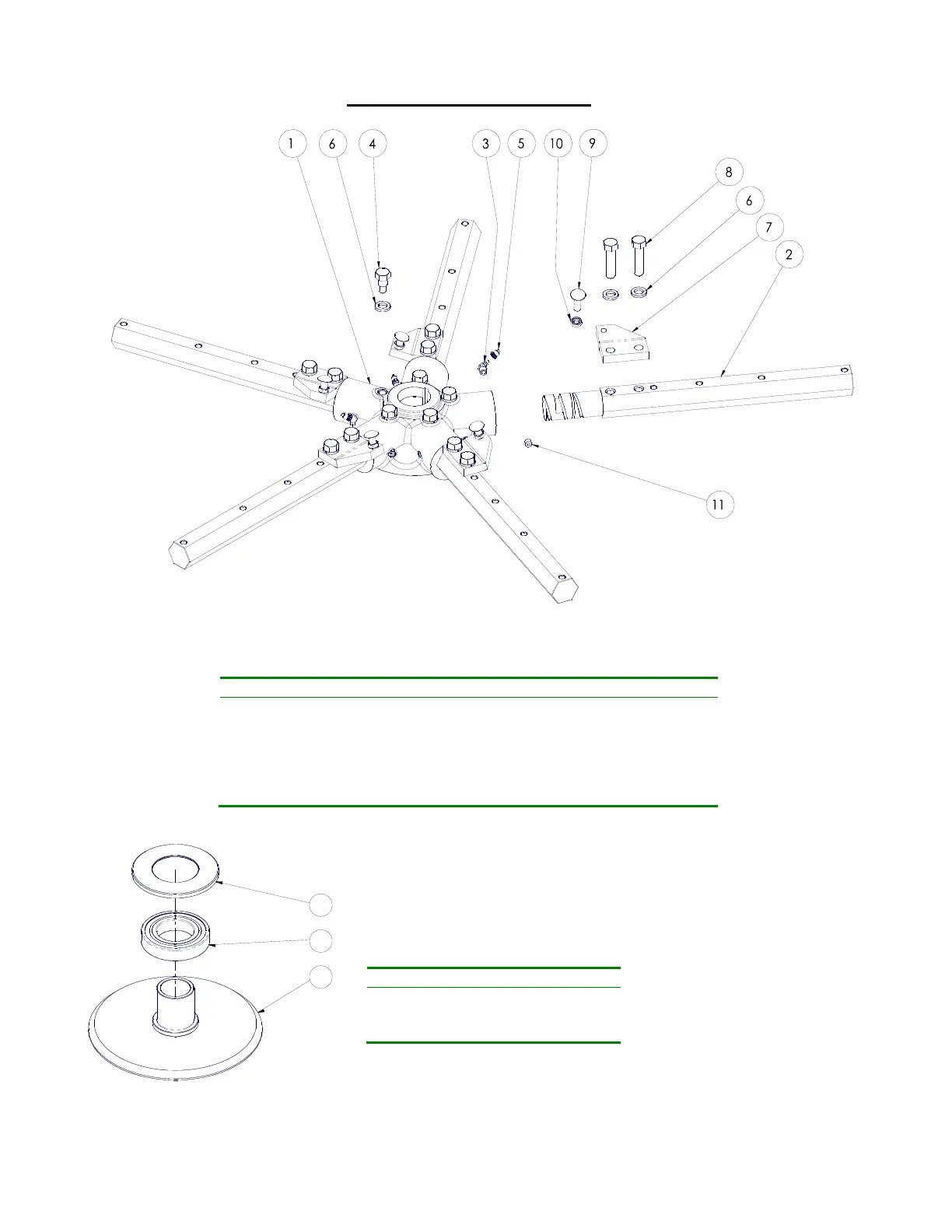

SPIDER PLATE ASSEMBLY
Figure 7 – Greased Spider Assembly
Note: 5 blade spider plate shown.
Item # Description Item # Description
1 Spider Plate 7 Lift Lever
2 Trowel Arm 8 Hex Bolt
3 Grease Fitting 9 Carriage Bolt
4 Hex Bolt 10 Hex Jam Nut
5 Cap Grease 11 Pipe Plug
6 Lockwasher
Figure 8 – Pressure Plate Assembly
Item # Description
10 Pressure Plate
20 Thrust Bearing
30 Pressure Plate Cap
