TS100 RIDE-ON TROWEL INSTRUCTION MANUAL
BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX 732-566-5444
Created: 06/05
Revised: 06/14
- 24 -
GEARBOX ASSEMBLY

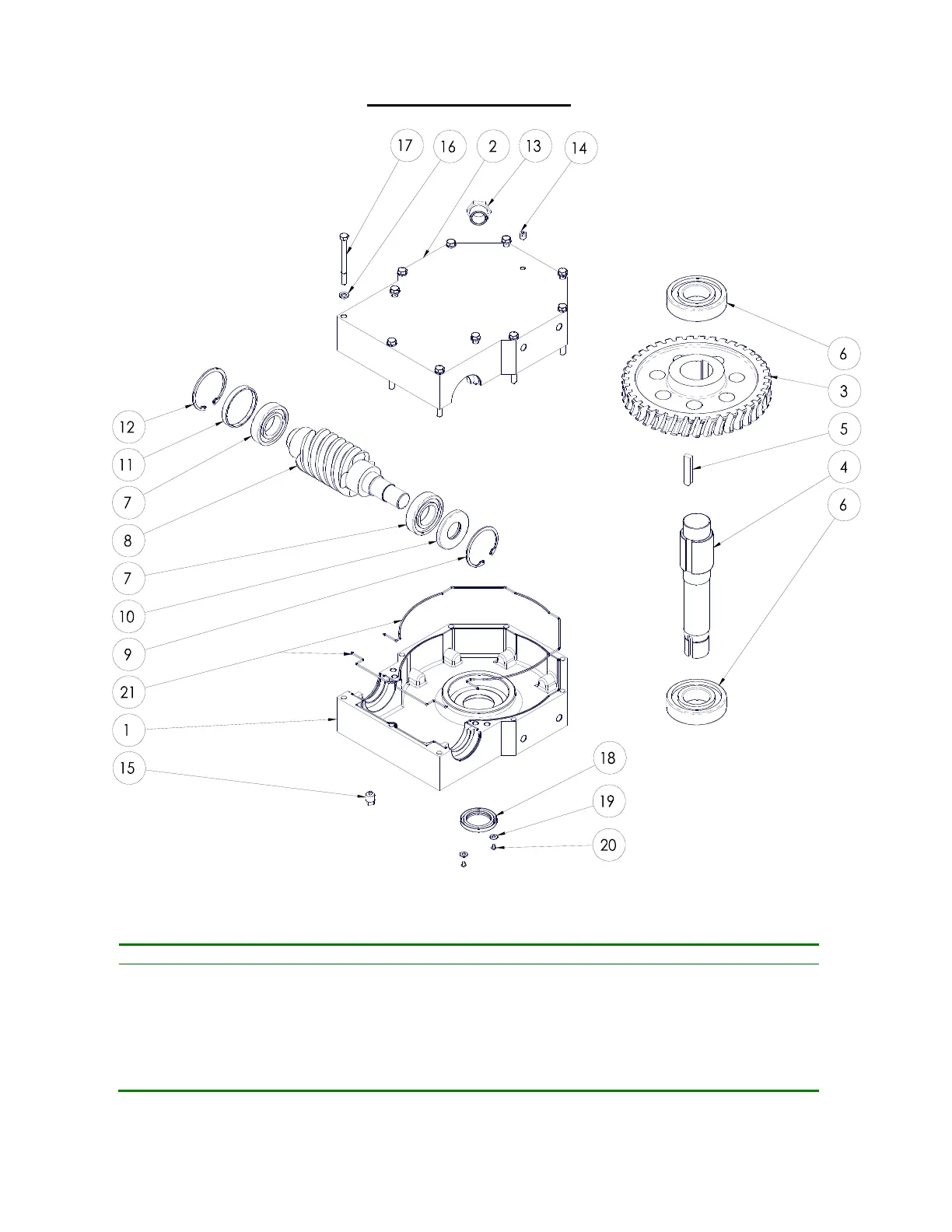

Figure 5 – Gearbox Assembly
Note: Left hand gearbox shown.
Item # Description Item # Description Item # Description
1 Gearbox – Bottom 8 Wormshaft 15 Magnetic Drain Plug
2 Gearbox – Top 9 Retaining Ring 16 Lockwasher
3 Main Gear 10 Gearbox Input Seal 17 Hex Bolt
4 Mainshaft 11 Coutershaft Cap 18 Mainshaft Seal
5 Key 12 Retaining Ring 19 Washer
6 Mainshaft Bearing 13 View Gauge 20 Machine Screw
7 Mainshaft Bearing 14 Relief Valve 21 O-Ring Seal
