19-18 9492600990
BESTlogic™Plus DECS-150
Default Logic Schemes
The default logic scheme for PSS-disabled systems is shown in Figure 19-2 and the default logic scheme
for PSS-enabled systems is shown in Figure 19-3.

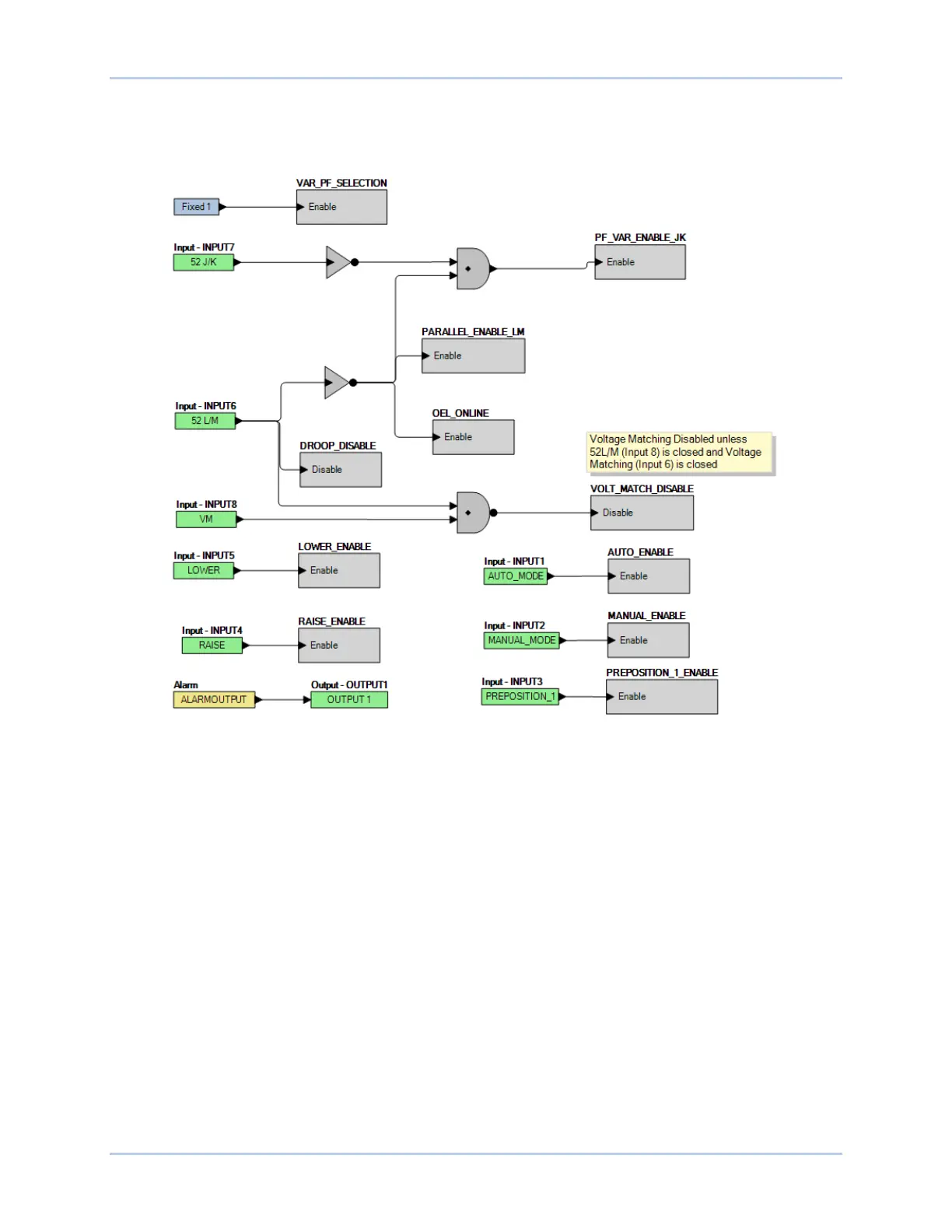

Figure 19-2. PSS-Disabled Default Logic
