DECS-150 Power System Stabilizer
generator voltage exceeds the terminal voltage setpoint. The terminal voltage limiter is enabled and
disabled by software switch SSW 8. The limit setpoint is normally selected such that the limiter will
eliminate any contribution from the PSS before the timed overvoltage or volts per hertz protection
operates.
The limiter reduces the stabilizer’s upper limit, V
PSS_ULMT
, at a fixed rate until zero is reached or
overvoltage is no longer present. The limiter does not reduce the AVR reference below its normal level; it
will not interfere with system voltage control during disturbance conditions. The error signal (terminal
voltage minus the limit start point) is processed through a conventional low-pass filter to reduce the effect
of measurement noise. The low-pass filter is controlled by a time constant.
Operational Settings
PSS settings are configured exclusively through the BESTCOMSPlus
®
interface. These settings are
illustrated in Figure 13-10 through Figure 13-13.

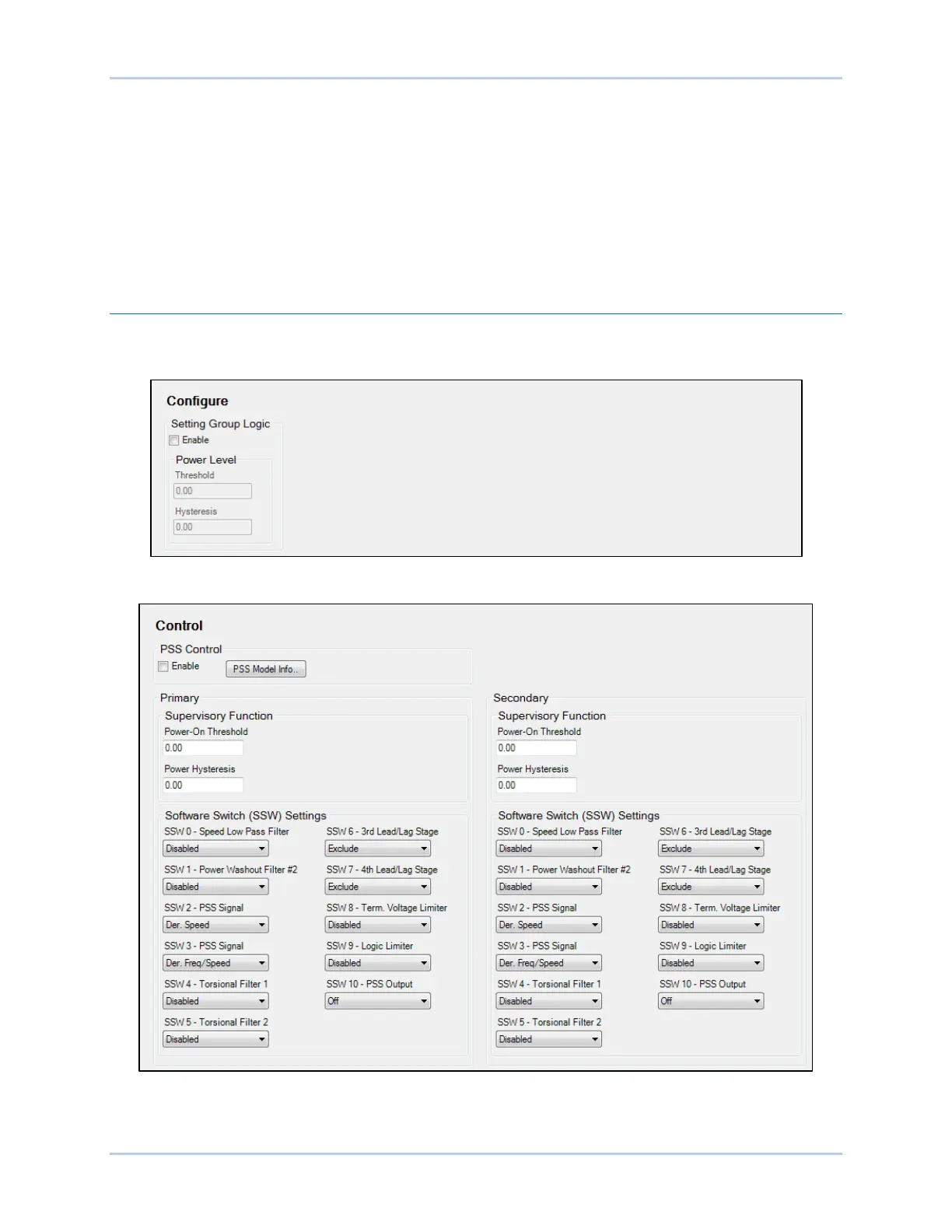

Figure 13-10. PSS Configure Screen
Figure 13-11. PSS Control Screen
