Fill Fuel Tank
1. Skidsteer must be parked on a level surface,
lift arms fully lowered, engine stopped and key
removed.
A
C
B

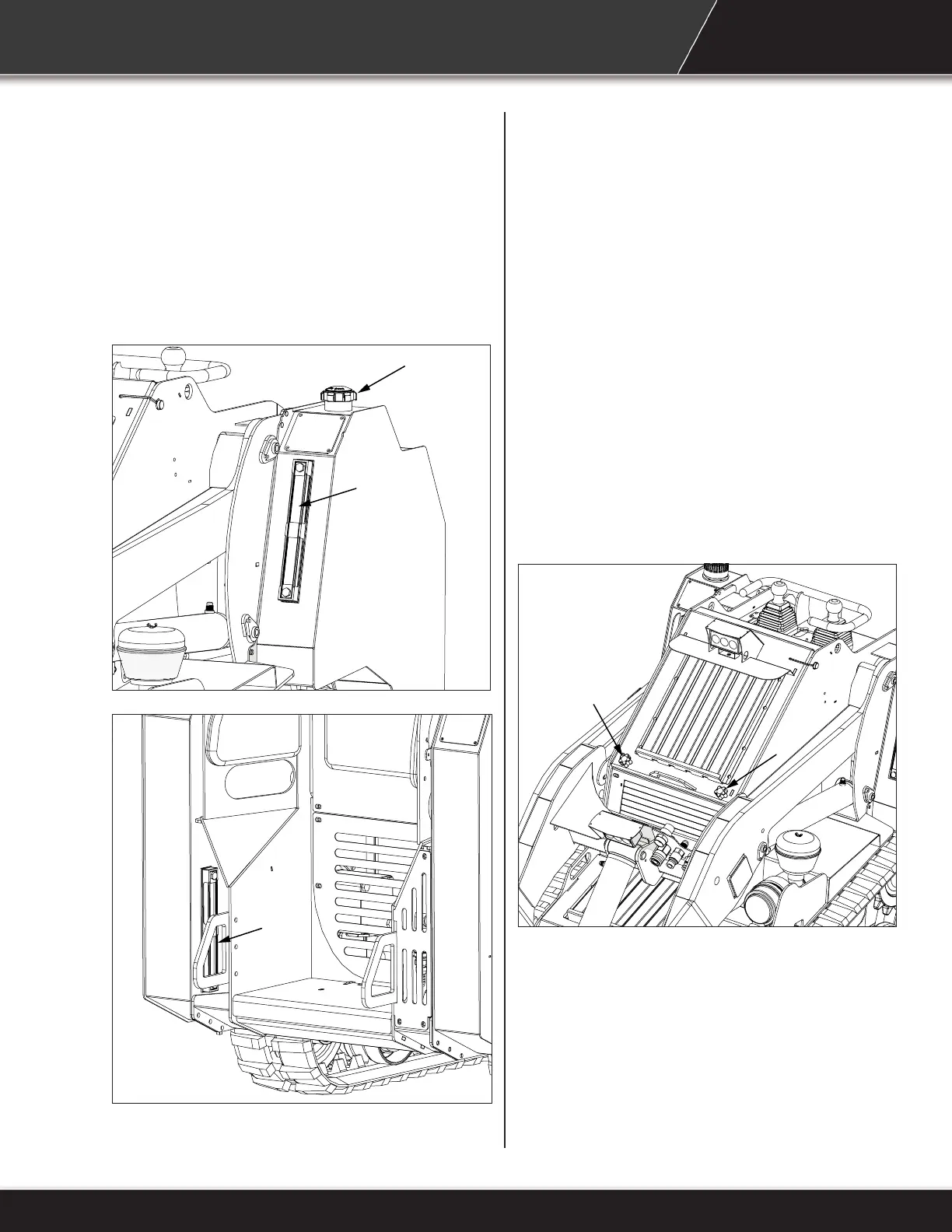

2. Check fuel level in upper level sight glass (A)
and lower level sight glass (B).
3. Clean area around fuel tank ller neck.
4. Remove cap (C) from ller neck and add diesel
fuel as needed.
5. Install cap (C) on ller neck.
Check Engine Oil Level
1. Skidsteer must be parked on a level surface,
lift arms fully lowered, engine stopped and key
removed.
2. Loosen knobs (A) and tilt hydraulic cooler up.
Engage pin to hold cooler in open position.
A
A
3. Clean around oil dipstick (B).
4. Pull out dipstick and wipe metal end clean.
5. Slide dipstick fully into dipstick tube.
6. Pull dipstick out and look at metal end.
7. If oil level is low, clean around oil ller cap and
remove cap (C).
