5.4 Every 100 Hours
Track Tension
Check track tension every 100 hours and adjust
as needed.
1. Skidsteer must be parked on a level surface,
park brake engaged, lift arms fully lowered,
engine stopped and key removed.

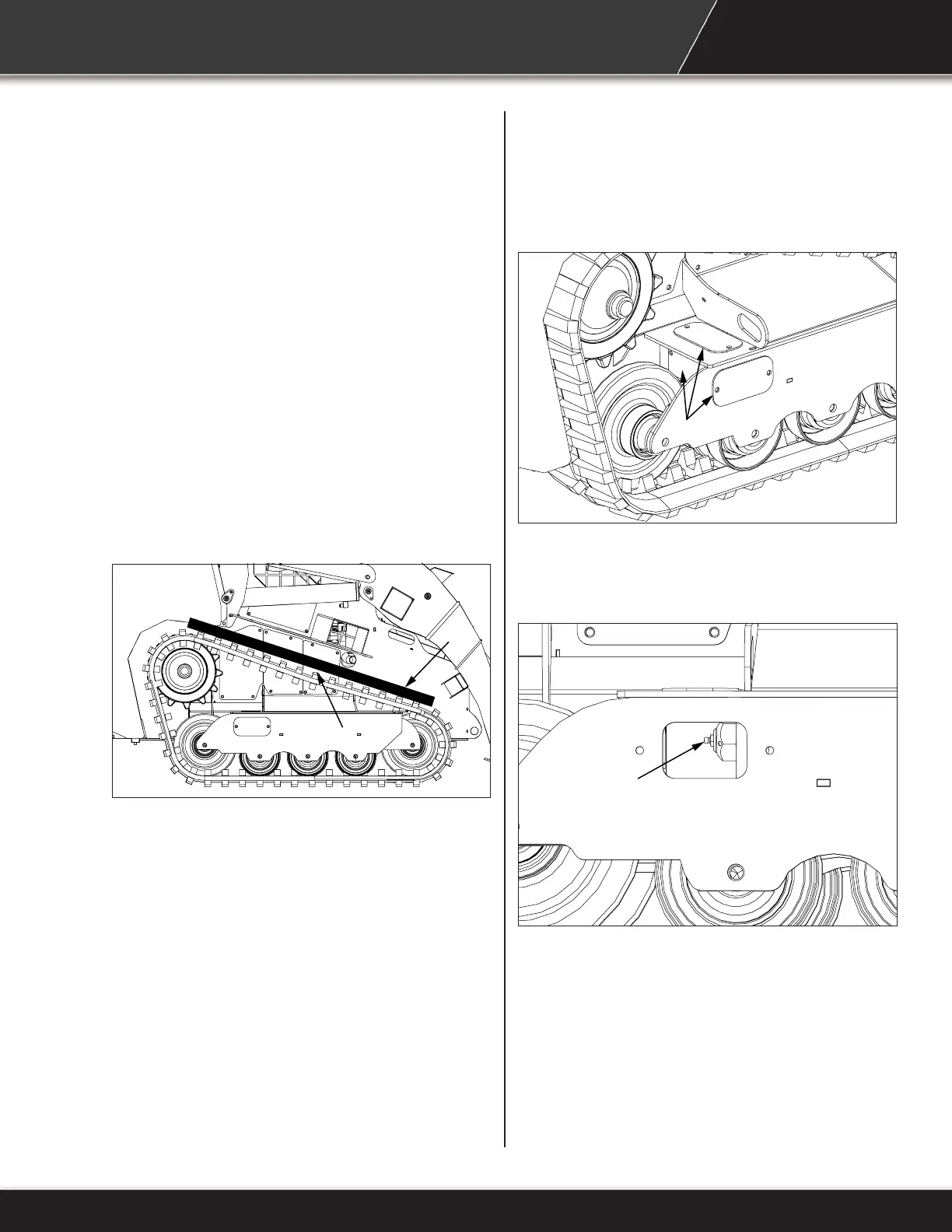

2. Place a straight edge (A) across top of track
as shown.
3. Measure dimension (B) between bottom of
straight edge and top of track. Track tension
is properly adjusted when dimension (A) is no
more than 1 in. (25 mm) when measured near
the center of track.
A
B
4. If adjustment is necessary follow steps 5-7.
5. Remove one of the three covers (C) to access
grease tting.
C
6. Pump grease into tting (D) to adjust track
tension so dimension (B) is no more than 1
in. (25 mm). Too much tension will stretch the
track.
D
7. Install covers (C).
43
