Baumalight TRL620D - Check Coolant Level

Check Coolant Level
1. Skidsteer must be parked on a level surface,
park brake engaged, lift arms fully lowered,
engine stopped and key removed. Allow engine
to cool to ambient temperature.

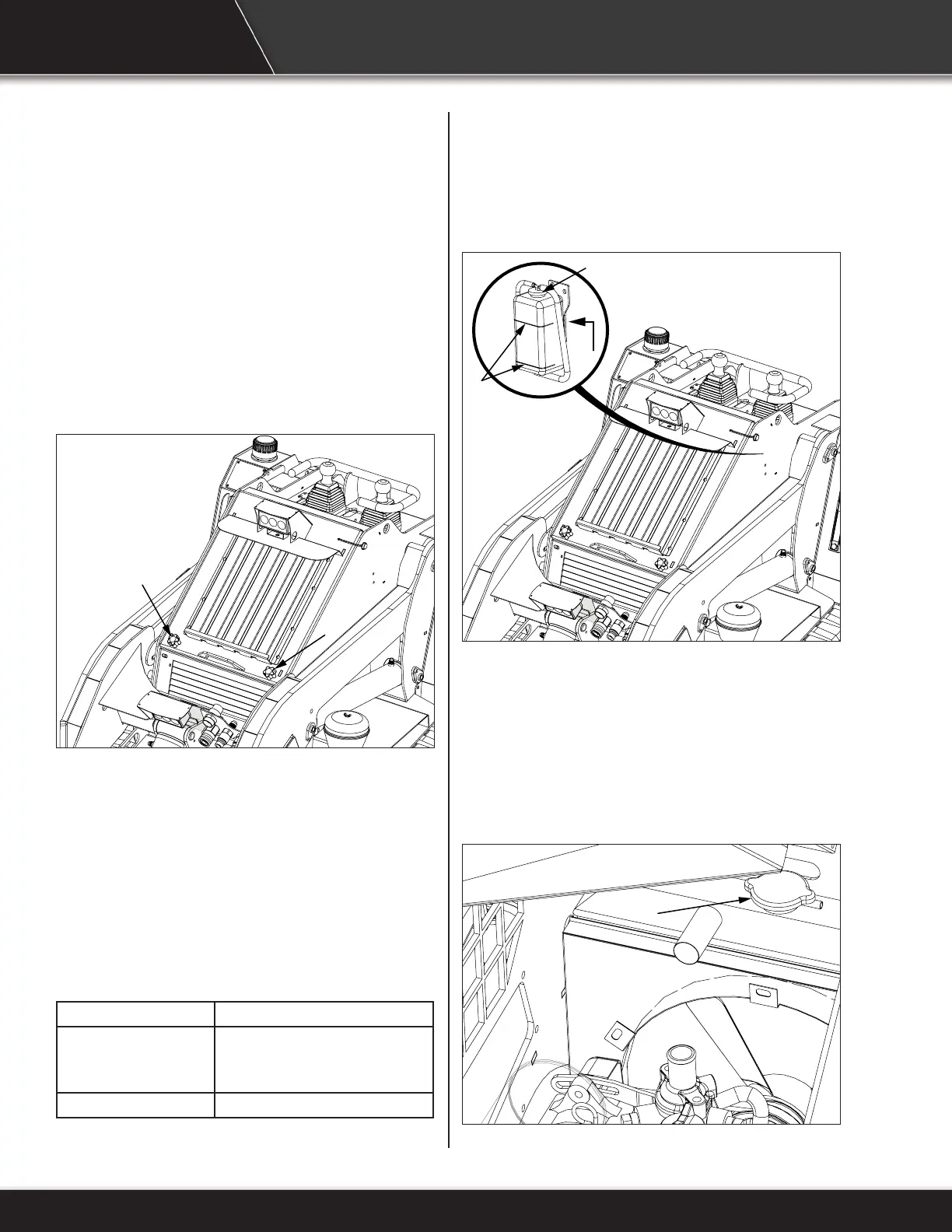

2. Loosen knobs (A) and pivot hydraulic oil cooler
upward. Engage pin to hold cooler in open
position.
A
A
Note: Expansion tank is mounted above the
engine radiator.
3. Check coolant level in expansion tank. Coolant
should be between indicator marks (B).
4. If coolant level is low, remove expansion tank
cap (C).
5. Lift tank approximately 1 in. (25 mm) and
remove from skidsteer.
Engine Model Cooling System Capacity
D1005-E4
D1105-E4
D1305-E4
0.82 gal (3.1 L)
V1505-E4 1.06 gal (4.0 L)
B
C
6. Add a premixed coolant or a 50/50 mix of water
and anti-freeze to proper level.
7. Install tank and cap.
8. Close hydraulic cooler.
9. If expansion tank is empty, check coolant level
in radiator. Remove radiator cap (D) to check
coolant level. Maintain coolant level at bottom
of ller neck.
D
40
