Baxi POWER HT+ Series Installation And Service Manual

3. Disconnect the ground wire.
4. Pull and lift the top panel.
5. Unhook the panel holding the control panel to place it on the boiler.

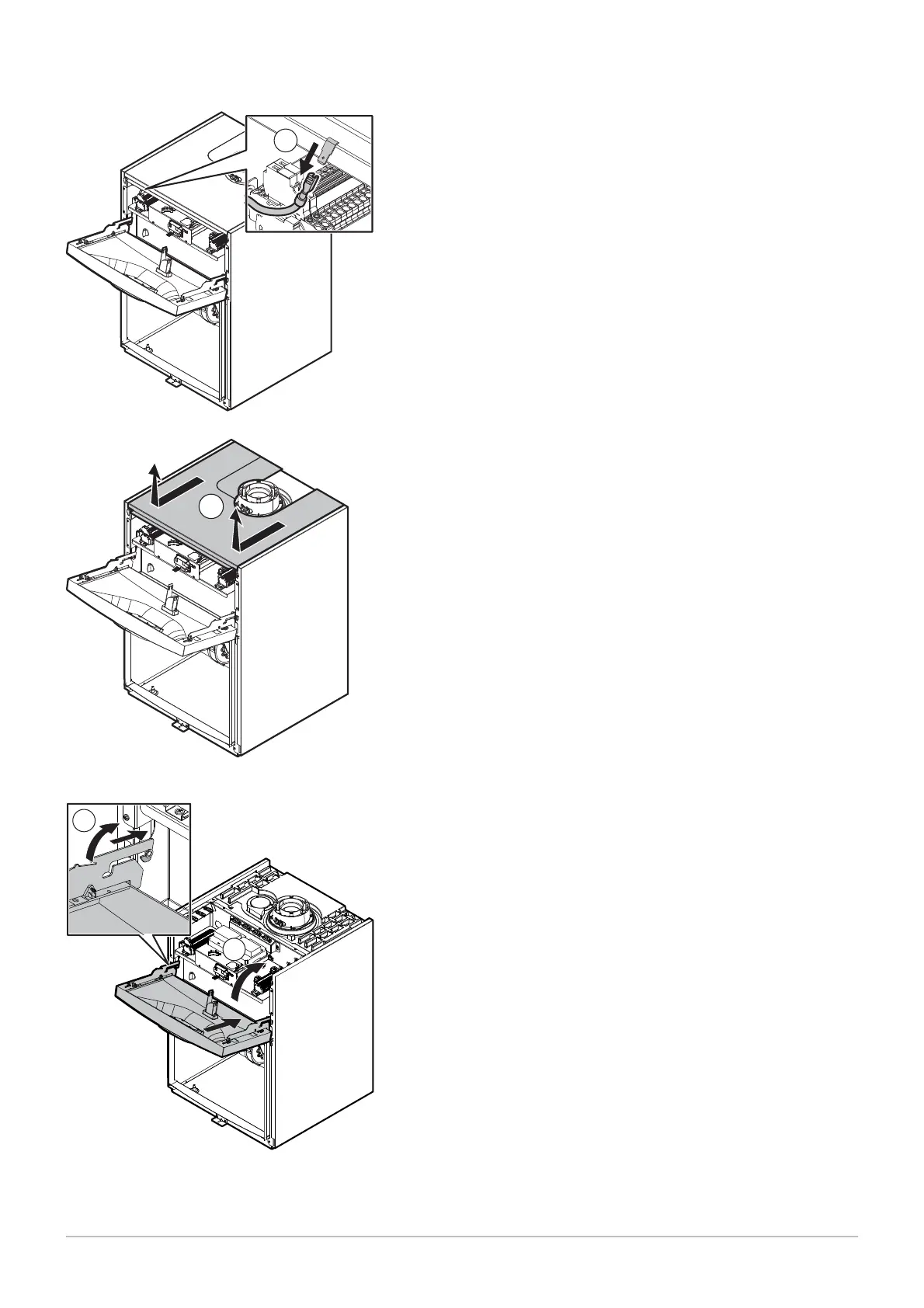

Fig.37 Ground wire
MW-3000122-01
3
Fig.38 Removing the top panel
MW-1000010-01
3
Fig.39 Unhooking the panel holding the
control panel
MW-3000025-01
5
5
6 Installation
38 7609474 - v02 - 04092014

Baxi POWER HT+ Series Specifications

General

Model	POWER HT+ Series
Category	Boiler
Installation Type	Wall-mounted
Heat Exchanger Material	Stainless Steel
Warranty	2 years
Fuel Type	Natural Gas
Control System	Integrated Control
Ignition Type	Electronic
