Baxi POWER HT+ Series Installation And Service Manual

3. Release the pressure on the spring.
The wire is attached.
6

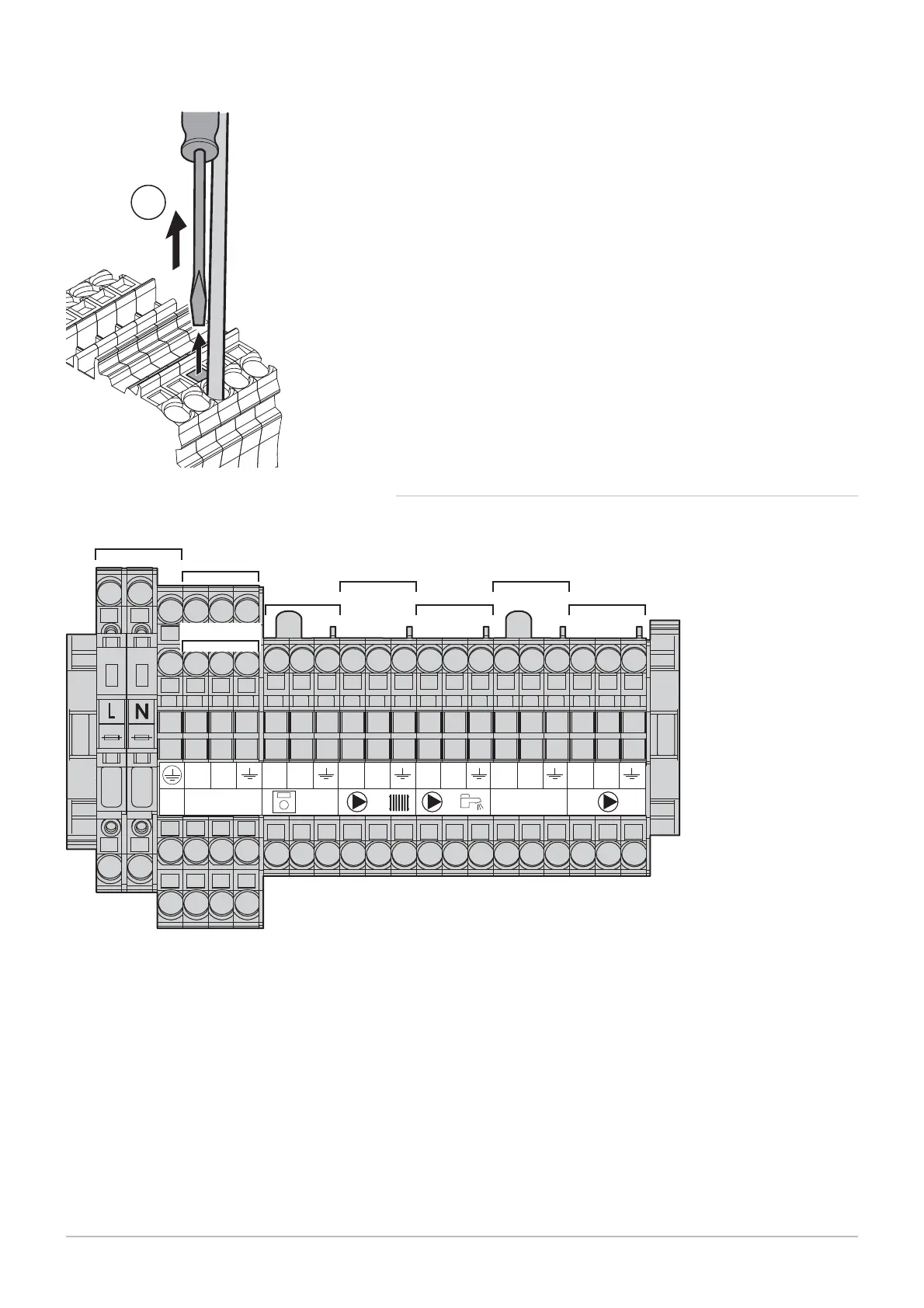

6.6.5 Description of the power supply terminal block
Fig.57 Power supply terminal block
MW-1000015-02
1
2
3
4
Aux 1-2 230 V
TA TS
LN LN L LNNLNLN
2
468
57
1
3
1
Power supply 230V 50Hz
2
Power supply auxiliary circuit 1
3
Power supply auxiliary circuit 2
4
Room thermostat
5
Heating circuit pump
6
Domestic hot water pump
7
Safety contact
8
Boiler pump
Fig.56 Attaching the wire
MW-3000039
3
6 Installation
50 7609474 - v02 - 04092014

Baxi POWER HT+ Series Specifications

General

Model	POWER HT+ Series
Category	Boiler
Installation Type	Wall-mounted
Heat Exchanger Material	Stainless Steel
Warranty	2 years
Fuel Type	Natural Gas
Control System	Integrated Control
Ignition Type	Electronic
