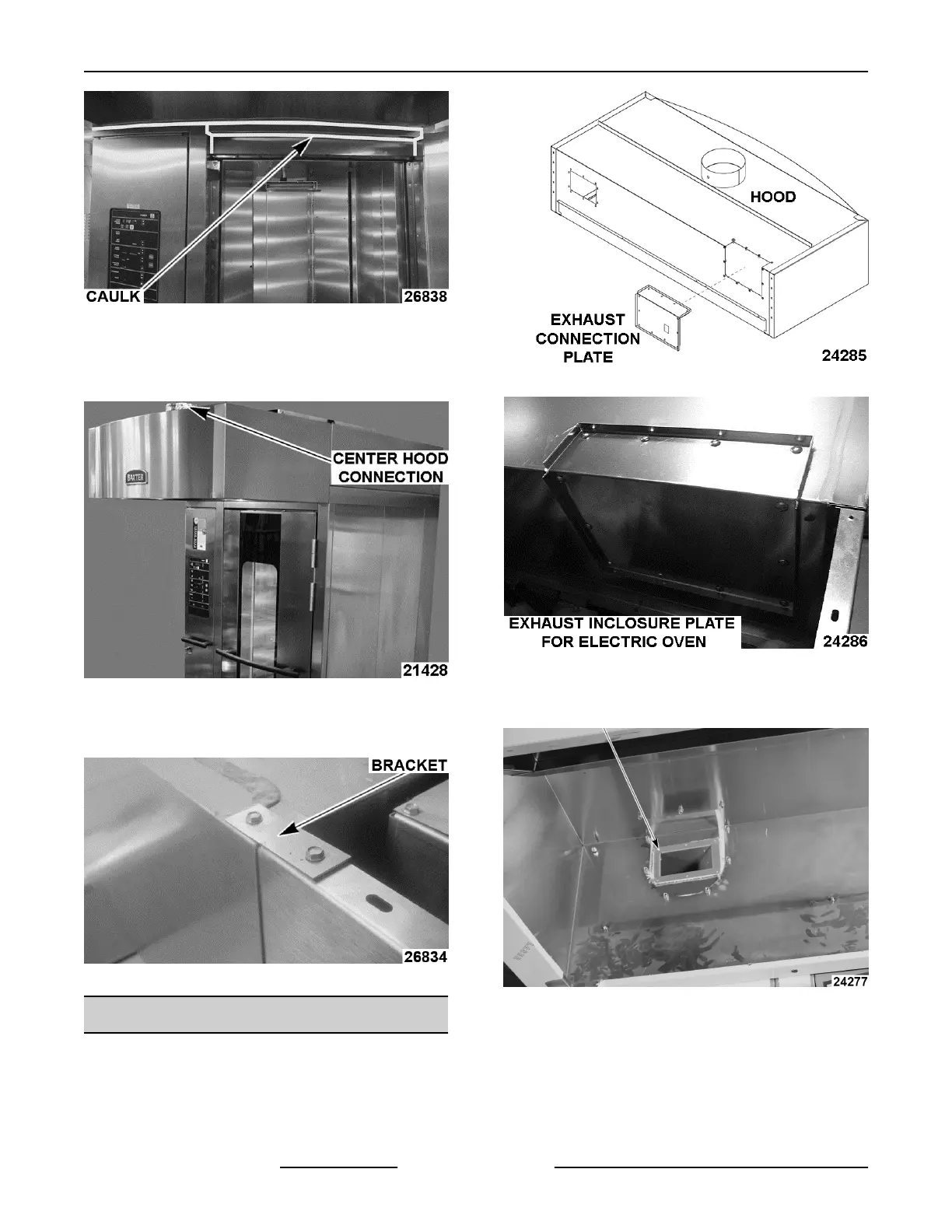

Fig. 114
6. Customer is responsible for having a flue pipe
connected to the center hood connection. See
appropriate oven specification.
Fig. 115
7.
Install bracket between top of hood and hood
side trim (2 places).
Fig. 116
HOOD VENTING
1. Install exhaust connection plate to hood
assembly.
NOTE: Electric
oven install a hood exhaust inclosure
plate to close off exhaust opening in hood.
Fig. 117
Fig. 118
2.
Insert exhaust duct thru hood and connect to
draft inducer.
Fig. 119
INSTALLATION INSTRUCTIONS OV500-EE SERIES GAS RACK OVENS AND OV500 SERIES ELECTRIC RACK
OVENS - INSTALLING OVEN
F45469 Rev. D (1019) Page 42 of 49
