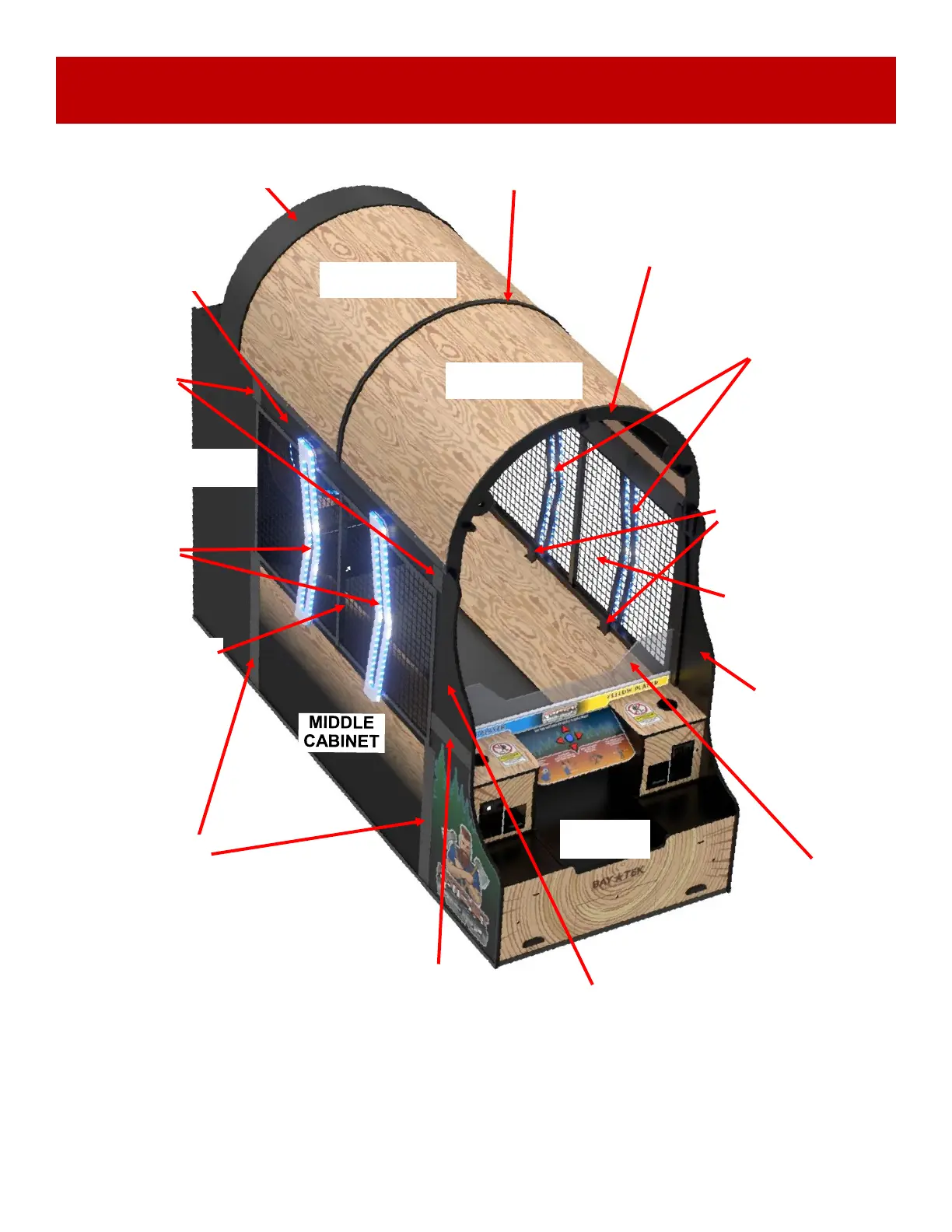

AXE MASTER SETUP

FRONT

CONSOLE

MONITOR

HOUSING

5 - CABLE COVERS (4)

Part # WACA29090

F - DOUBLE ARCH

Part # AAAR29005

E - SINGLE ARCH

Part # AAAR29000

L - FRONT RIGHT SIDE

Part # AACA29057

C - SHORT

CONNECTOR

PLATES (4)

Part # A5ME29013

REAR

CABINET

A - LONG

CONNECTOR

PLATES (4)

Part # A5ME29012

D - MEDIUM

CONNECTOR

PLATES (2)

A5ME29011

K - FRONT LEFT SIDE

Part # AACA29057

PLEXI GUARD

Part # WACA29061

H - LEFT SIDE

CAGE LIGHTS (2)

Part # AALI29000-L

1 - LEFT CAGE ASSY

Part # AAME29000-L

J - RIGHT SIDE

CAGE LIGHTS (2)

Part # AALI29000-R

2 - RIGHT CAGE ASSY

Part # AAME29000-R

NOT PICTURED:

G - BLACK PLASTIC ROOF SUPPORTS (3) Part # AACA29096

N - RIGHT UPPER CAGE SUPPORT Part # WACA29043

M - LEFT UPPER

CAGE SUPPORT

Part # WACA29059

ROOF PANEL

Part # AADE29005

ROOF PANEL

Part # AADE29005
