DC voltage
problem
Check green
LED on AC
driver board.
It should be ON
when blower is
running.
If green LED is ON, then refer to AC voltage problem below
If green LED is OFF:
Check for disconnected, loose or broken wires from Newgen Board
to AC Driver Board. Check for continuity on CE5815 cable.
Check tor 12 volt DC at power on between the red and black
CE5815 wires into the AC driver board.
If no 12 volts - Replace Newgen Board # AANEWGEN1-PJ/RBN
If 12 volts ok - Replace AC Driver Board. Part # AABD5029-A
AC voltage
problem
Faulty Fuse
Faulty cable.
Disconnected,
loose or broken
wires.
Blower Issue
Replace 5 Amp mini fuse on AC Driver Board. Part # A5FUSE4
There is a constant 110 Volts AC on the CE5803 into the AC Driver
Board from power strip. Check for 110 Volts AC on the AABL3200
cable going to the blower at game power on while green LED is on.
(If green LED is not on, refer to DC voltage problem above)
If no 110 Volts AC going to the blower, replace AC Driver Board.
Part # AABD5029-A
Refer to “How to Access Blower” to ensure blower is not jammed.
Refer to “How to Remove Blower” to replace the blower if faulty.
Part # AABL3201-QD for 110 VAC game
Part # AABL1180-QD for 2200 VAC game
Blower
not
working
Balls are
all in the
bottom of
the game
Bower
should
run at
power
on, and
at the
start of
every
game.
No Sound
Motherboard cre-
ates sound, the
Audio Amplifier
boards amplifies it.
Volume set to mute enabled in
Main Menu or game volume/
attract volume set to zero.
Disconnected, loose or broken
wires.
Verify 12 Volts DC to Audio
Amplifier Boards
Faulty speaker.
Enter Main Menu and verify:
Game Volume & Attract Volume is not zero.
Mute is set to Disabled
Refer to wiring diagram. Check connections and reseat
audio cable from motherboard to speakers. Cables #
A5CEAU010, A5CE2300, CE5828, CE5825, AACE8811
Unplug audio cable (A5CE2300) from motherboard, plug
into MP3 player or phone and see if music is amplified
and comes out of speaker.
If Yes - then motherboard is faulty.
If No - then cable or amplifier board is faulty
Replace speaker. AACE8811
Jackpot Display
not working
Refer to wiring diagram
5 Volt DC power into board is
missing
Communication cable issue.
Pinched, broken, or
disconnected wiring
Faulty display board.
Display is wired from Newgen Board to Splitter Board, up
to Display Board
Check cables from power supply to the display. CE5842,
CE3454, CE3892 Check fuse inside CE3454 cable.
Part # A5FUSE11, 5 amp fuse
Check flat ribbon cables CE5843 from Newgen Board to
Splitter Board (AACB3904), to Display Board CE5841
Replace Display Board if needed. A5LD1058
Refer to “How to Change Jackpot Display Board”
Problem
Probable Cause Remedy

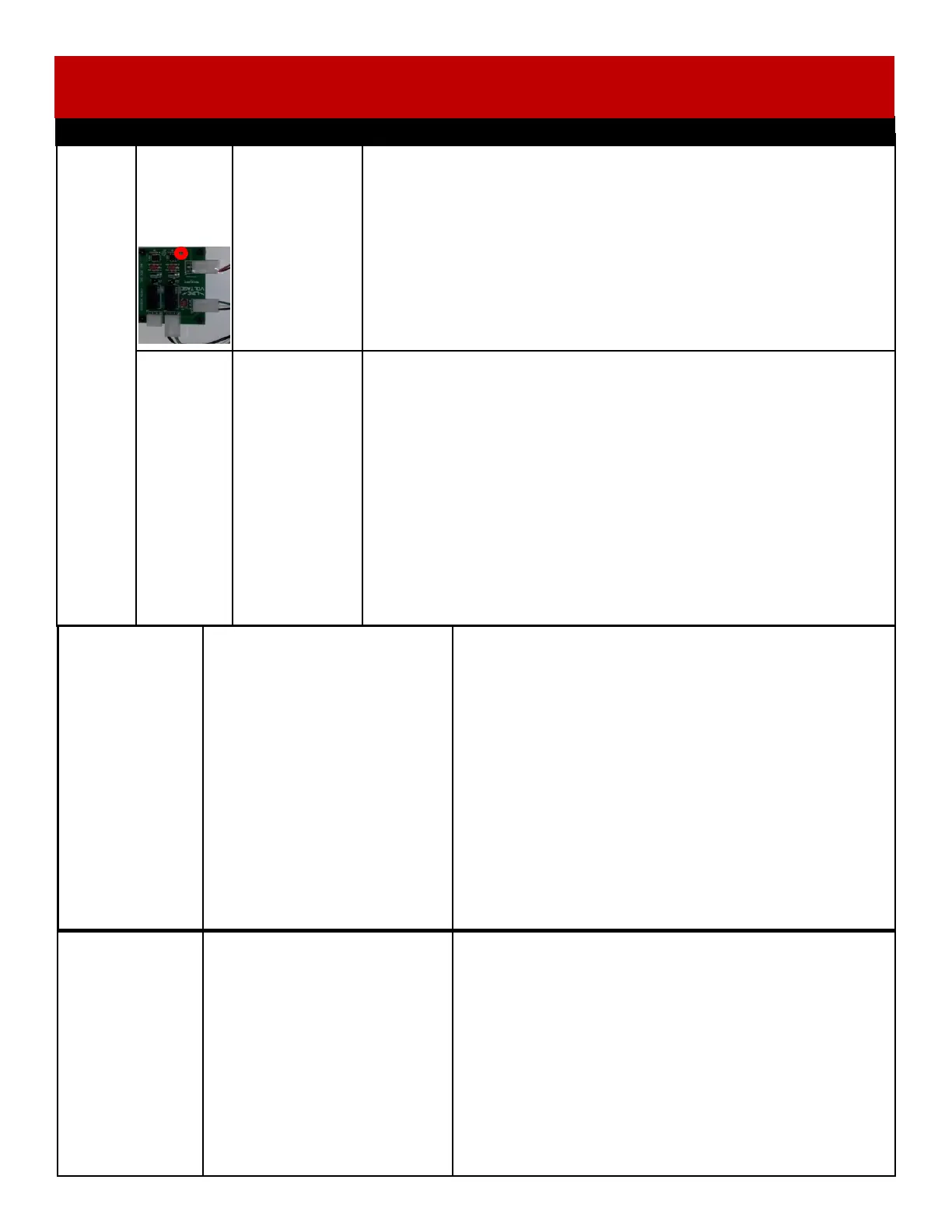

TROUBLESHOOTING GUIDE
