TX1500 Manual V3.5 Dec 07 Page 27 of 40 MATRIX PROGRAMMING/USER GUIDE
TX1500 USER GUIDE

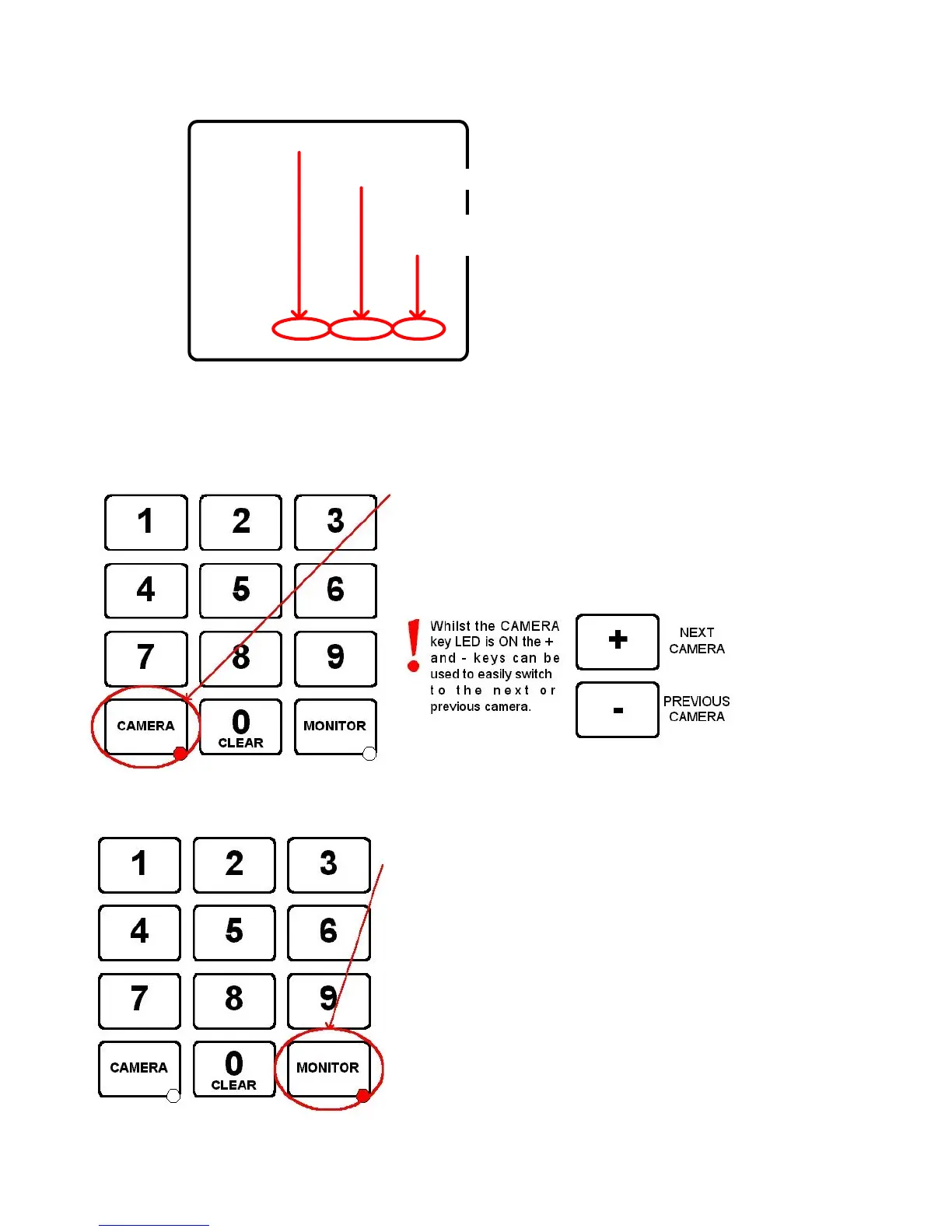

Monitor outputs 1,2,3 & 4 have an On Screen
Display as shown on the left.
The Monitor number along with current Camera
number is shown permanently.
Kbd is displayed whenever a keyboard is
driving a camera.
Monitor outputs 5,6,7 & 8 are not equipped with On Screen Displays and are generally used as spot, park or
public display monitors.
SELECTING A CAMERA
Use the number keys followed by the CAMERA key.
If the keyboard AND monitor are allowed to display the camera then the
current monitor will now display this camera.
If not then the command is ignored.
SELECTING A MONITOR
Use the number keys followed by the MONITOR key.
If the keyboard is not allowed to control this monitor then the command
is ignored.
Otherwise the keyboard can now control the camera displayed on the
new monitor
Mon 1 Cam 01 Kbd 1
Monitor Number
Current Camera Number
Keyboard Number
driving camera
