TX1500 Manual V3.5 Dec 07 Page 29 of 40 MATRIX PROGRAMMING/USER GUIDE

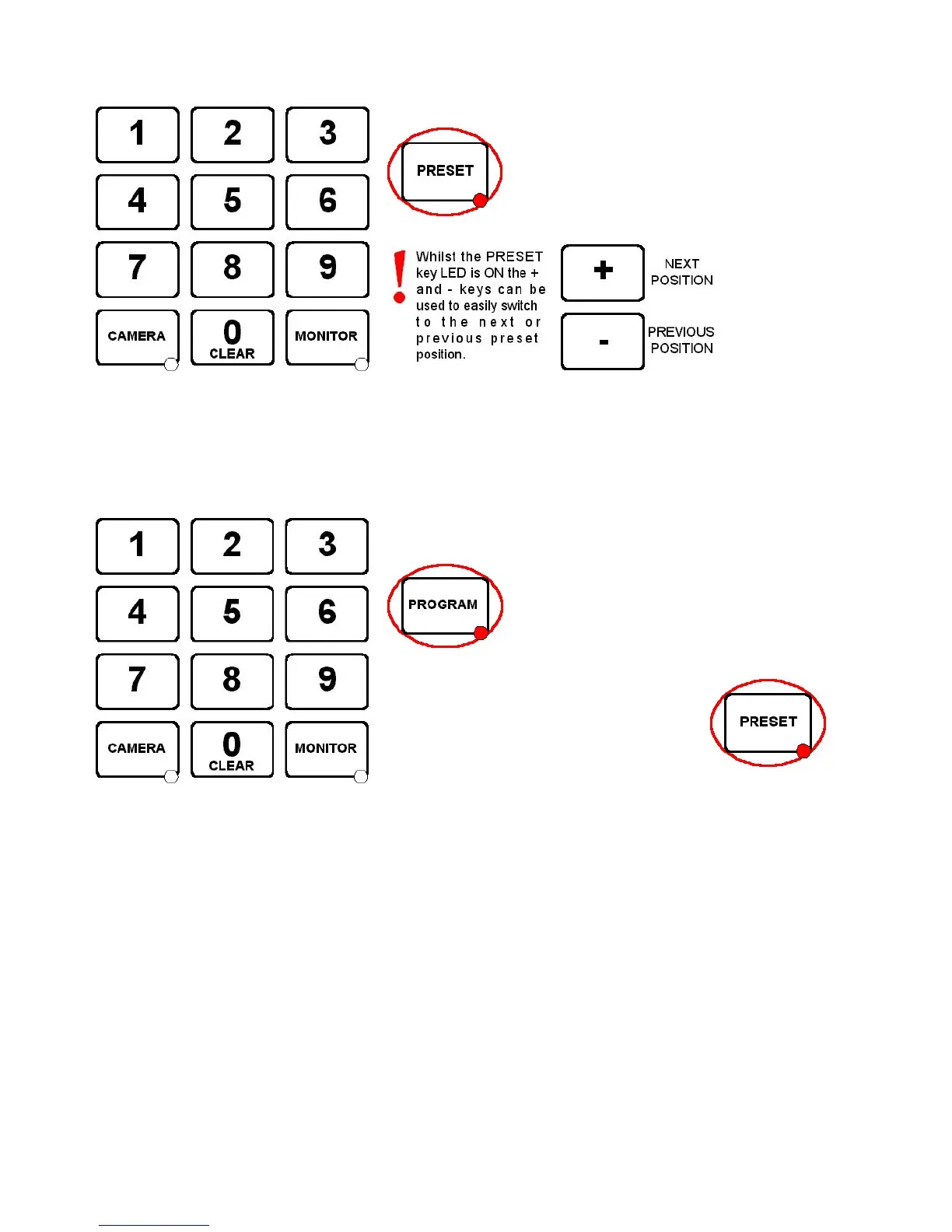

GOTO PRESET POSITION
Use the number keys followed by the PRESET key.
Preset positions are only available on moving cameras that are equipped for presets. Most will accept presets 1 – 16
although the TX1500 supports preset positions up to 99. This should be checked with your installing company.
PROGRAMMING A PRESET POSITION
Press the PROGRAM key to turn the PROGRAM key LED ON. The unit is
now in preset programming mode.
If the LED doesn’t light then this keyboard has been
prevented from programming presets by the
installation company.
Use the number keys followed by the PRESET key
to program the new preset position.
To Next Page
