TX1500 Manual V3.5 Dec 07 Page 3 of 40 TX1500 MATRIX
UNPACKING
Inspect the packaging for signs of damage. If damage has occurred, advise the carriers and/or the suppliers
immediately. Unpack the units carefully and check that all the items are present and correct.
SAFETY PRECAUTIONS
All normal safety precautions as laid down by British Standards and the Health and Safety at Work Act (or the
relevant National safety legislation if installing in a country outside the U.K.) should be observed, and
servicing should be referred to qualified service personnel.
SYSTEM COMPONENTS
Each complete system will comprise of at least the following:
1 x TX1500 video matrix enclosed in a 19” sub rack.
1 x TX1500/KBD system keyboard or TCommand Touch Screen keyboard
2 x RJ45 straight patch cables
2 x RJ45 breakout boxes with self adhesive mounting pad
2 x 9Vdc 500mA power supply (1 for the matrix and 1 for the keyboard)

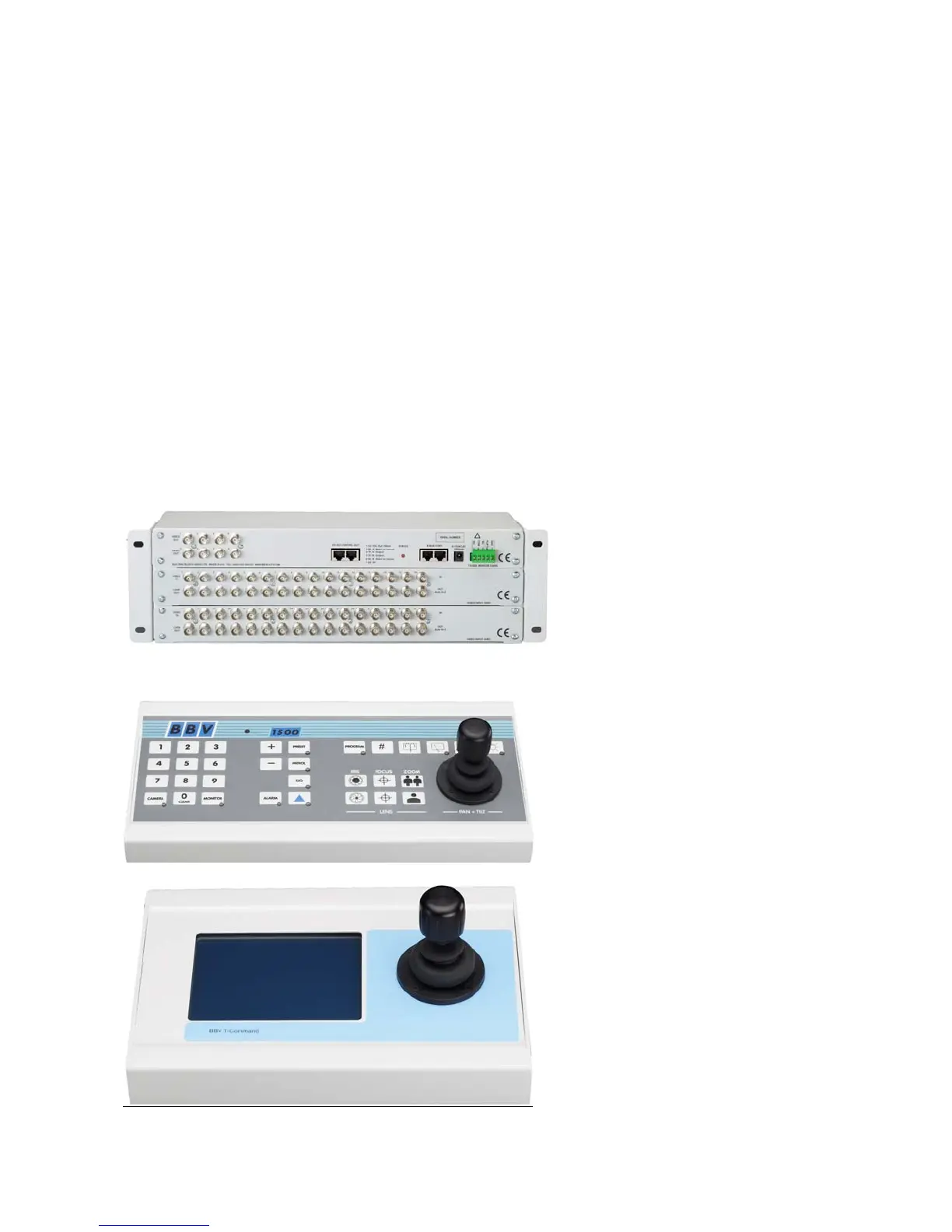

TX1500/32/8 matrix
Standard TX1500/KBD System Keyboard
Optional T Command Touch Screen Keyboard
