BCM RX35Q - Installing the CPU

18

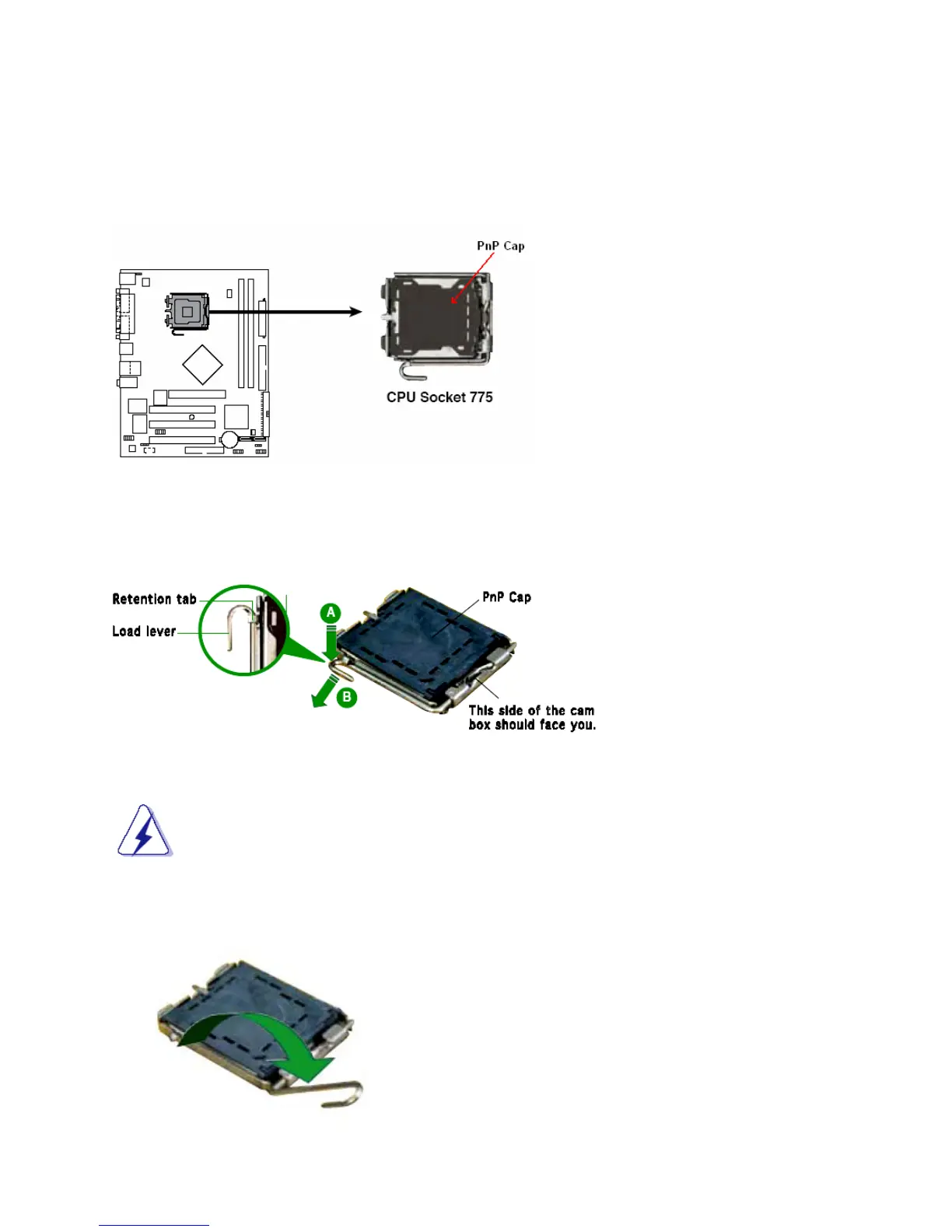

1.6.1 Installing the CPU
To install a CPU
1. Locate the CPU socket on the motherboard
2. Press the load lever with your thumb (A) and move it to the left (B) until it is released from the retention
tab.
To prevent damage to the socket pins, do not remove the PnP cap unless you have
installed the CPU.
3. Lift the load lever in the direction of the arrow to a 135° angle
