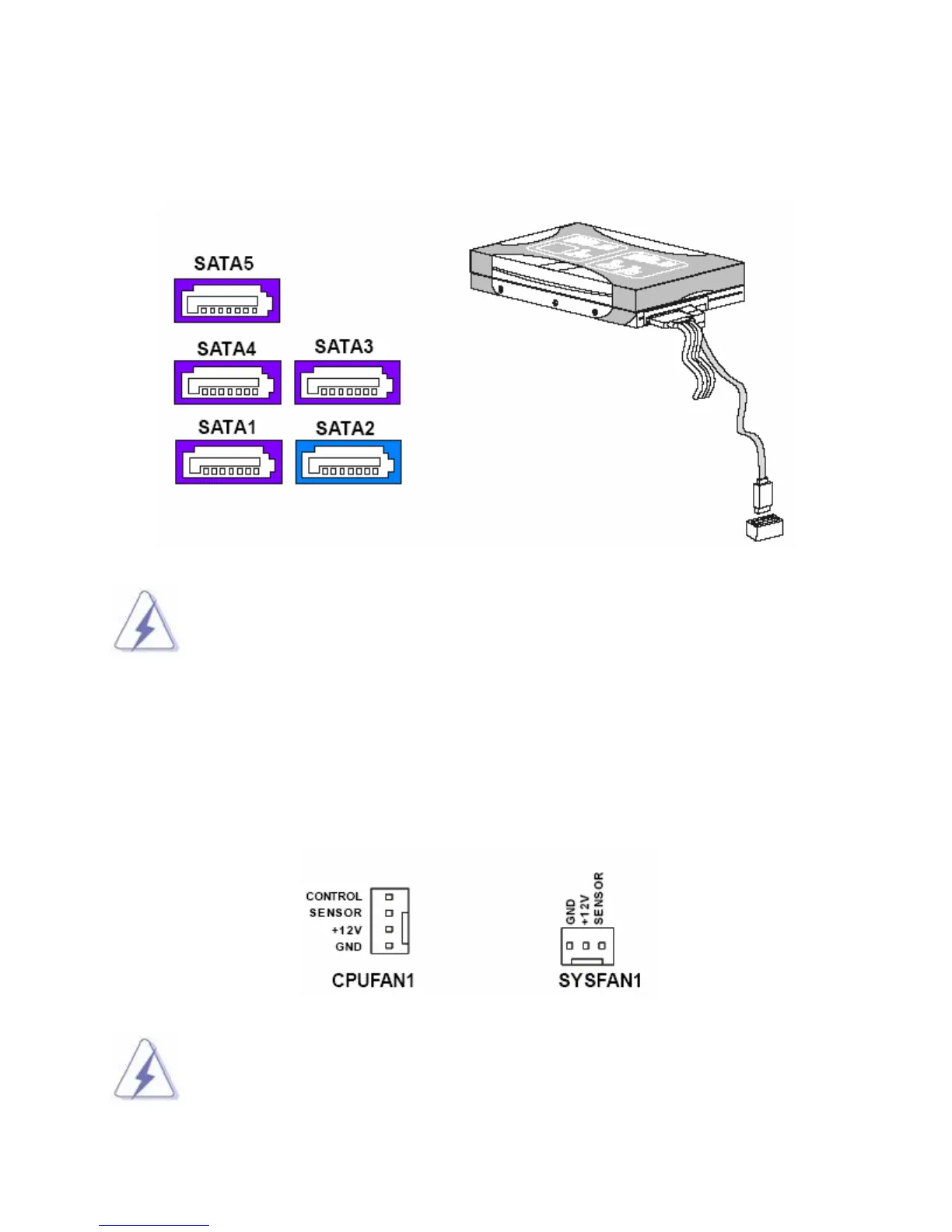

1.10.3 Serial ATA Connectors:
SATA1, SATA3, SATA4, SATA5
(Through Intel ICH9)
SATA2 (Through Marvell 88SE6111)
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise, data loss may
occur during transmission.
1.10.4 Fan Power Connectors: CPUFAN1, SYSFAN1
The fan power connectors support system cooling fan with +12V. When connecting the wire to these fan
connectors, please note that the red wire is designated as “Power” and should be connected to “+12V” pin;
the black wire is designated as “Ground” and should be connected to “GND”. In order to take the advantage
of System Hardware Monitor, be sure to use the fan which is specifically designed with speed sensor.
Please refer to the recommended CPU fans at processor’s official website or consult
the vendor for proper CPU cooling fan.
