35

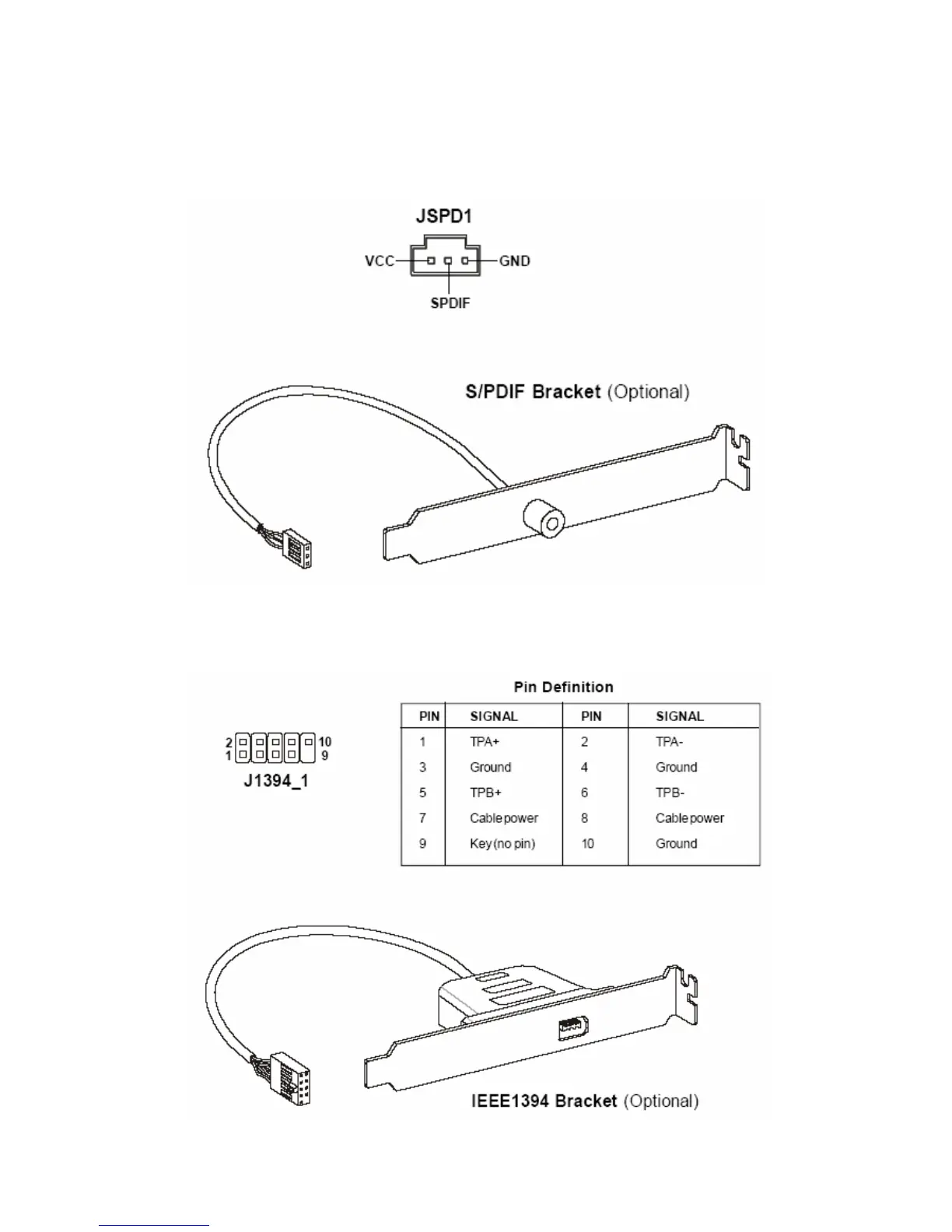

1.10.10 S/PDIF-Out Connector: JSPD1
This connector is used to connect S/PDIF (Sony & Philips Digital Interconnect Format) interface for digital
audio transmission.
1.10.11 IEEE1394 Connector: J1394_1
This connector allows you to connect the IEEE1394 device via an optional IEEE 1394 bracket.
