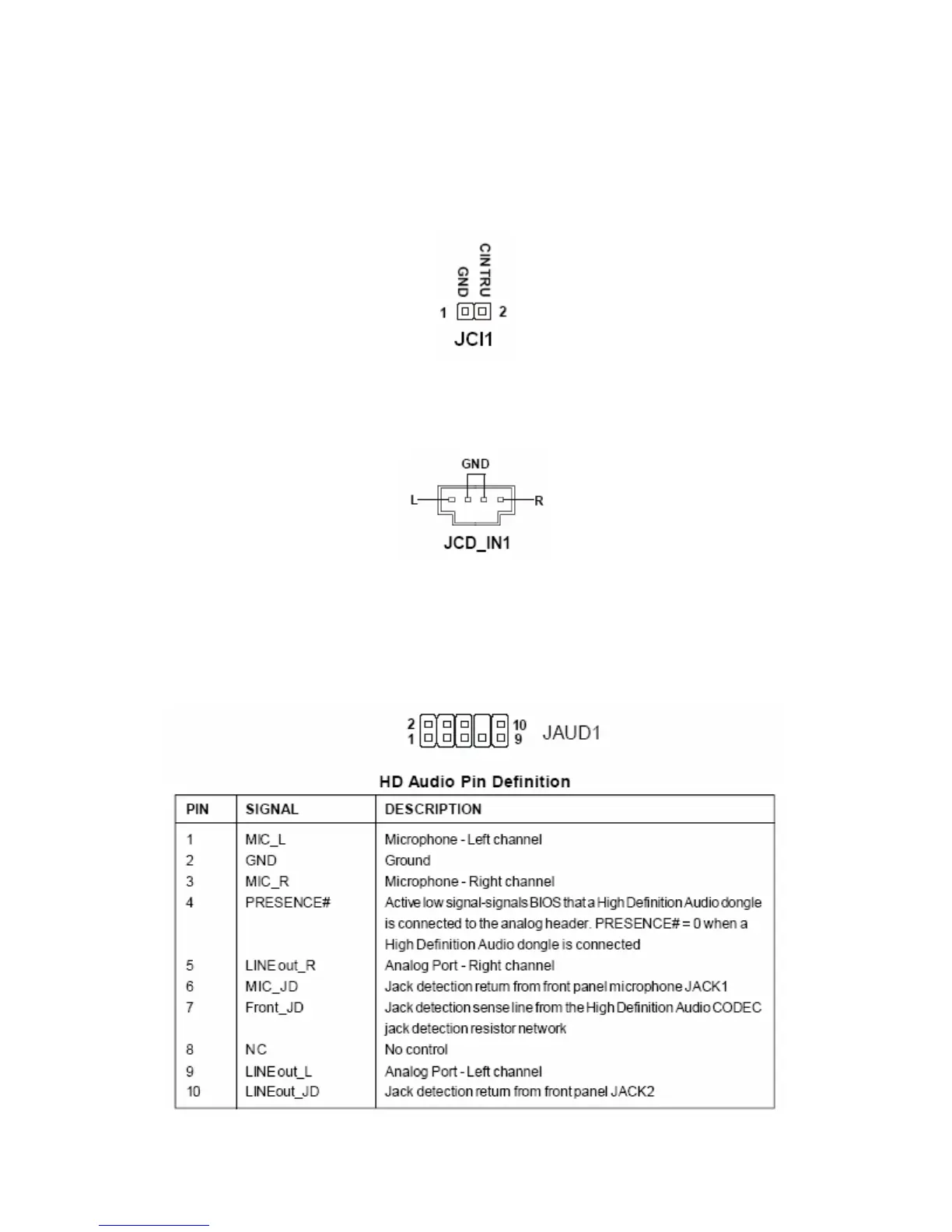

1.10.5 Chassis Intrusion Switch Connector: JCI1

This connector connects to a 2-pin chassis switch. If the chassis is opened, the switch will be short. The

system will record this status and show a warning message on the screen.

To clear the warning message, you must enter the BIOS and clear the record.

1.10.6 CD-In Connector: JCD_IN1

This connector is provided for external audio input.

1.10.7 Front Panel Audio Connector: JAUD1

This connector allows you to connect the front panel audio and is compliant with Intel® Front Panel I/O

Connectivity Design Guide.
