BCM RX35Q - Page 21

21

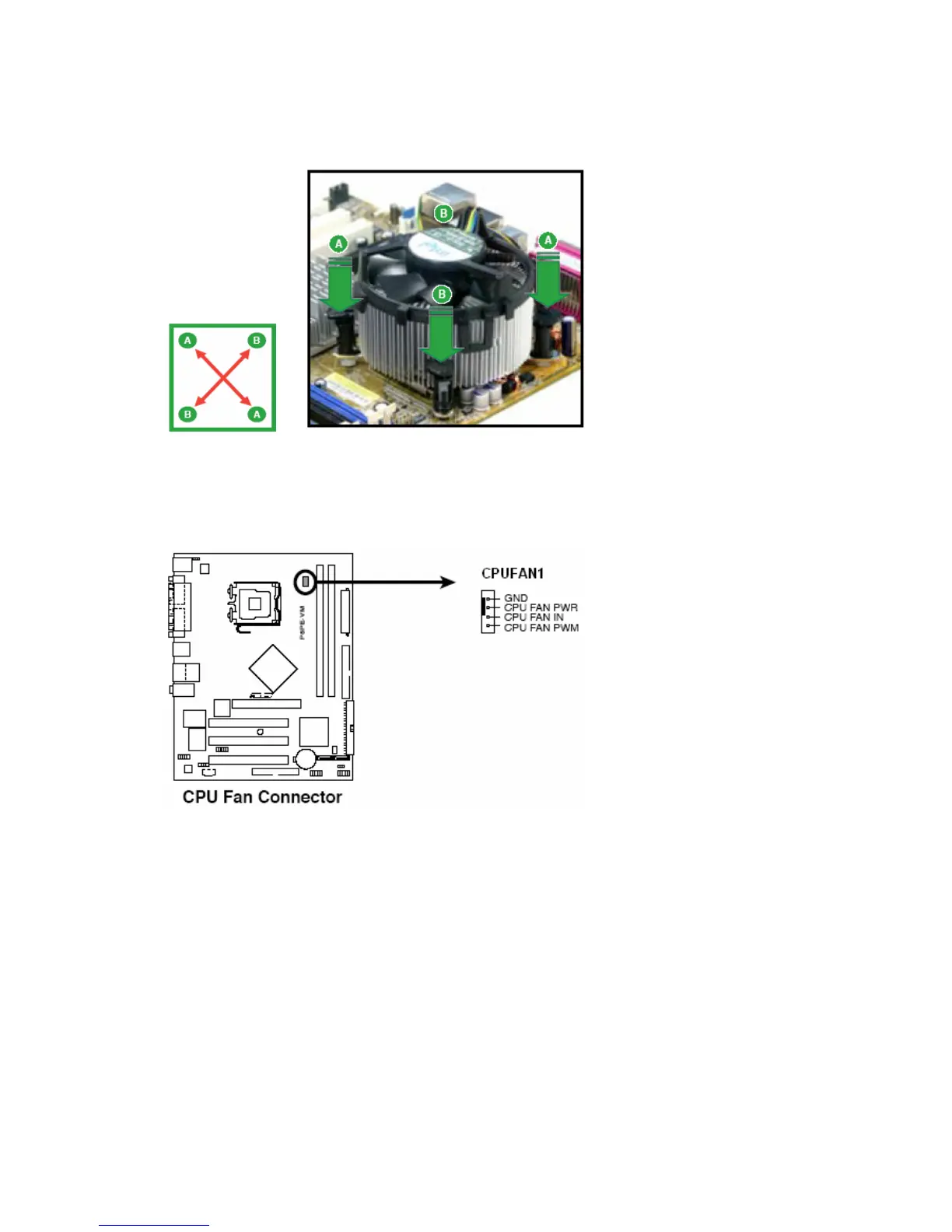

2. Push down two fasteners at a time in a diagonal sequence to secure the heatsink and fan
assembly in place
.
3. Connect the CPU fan cable to the connector on the motherboard labeled CPUFAN1.
Do not forget to connect the CPU fan connector! Hardware monitoring errors can occur if you fail
to plug in this connector.
