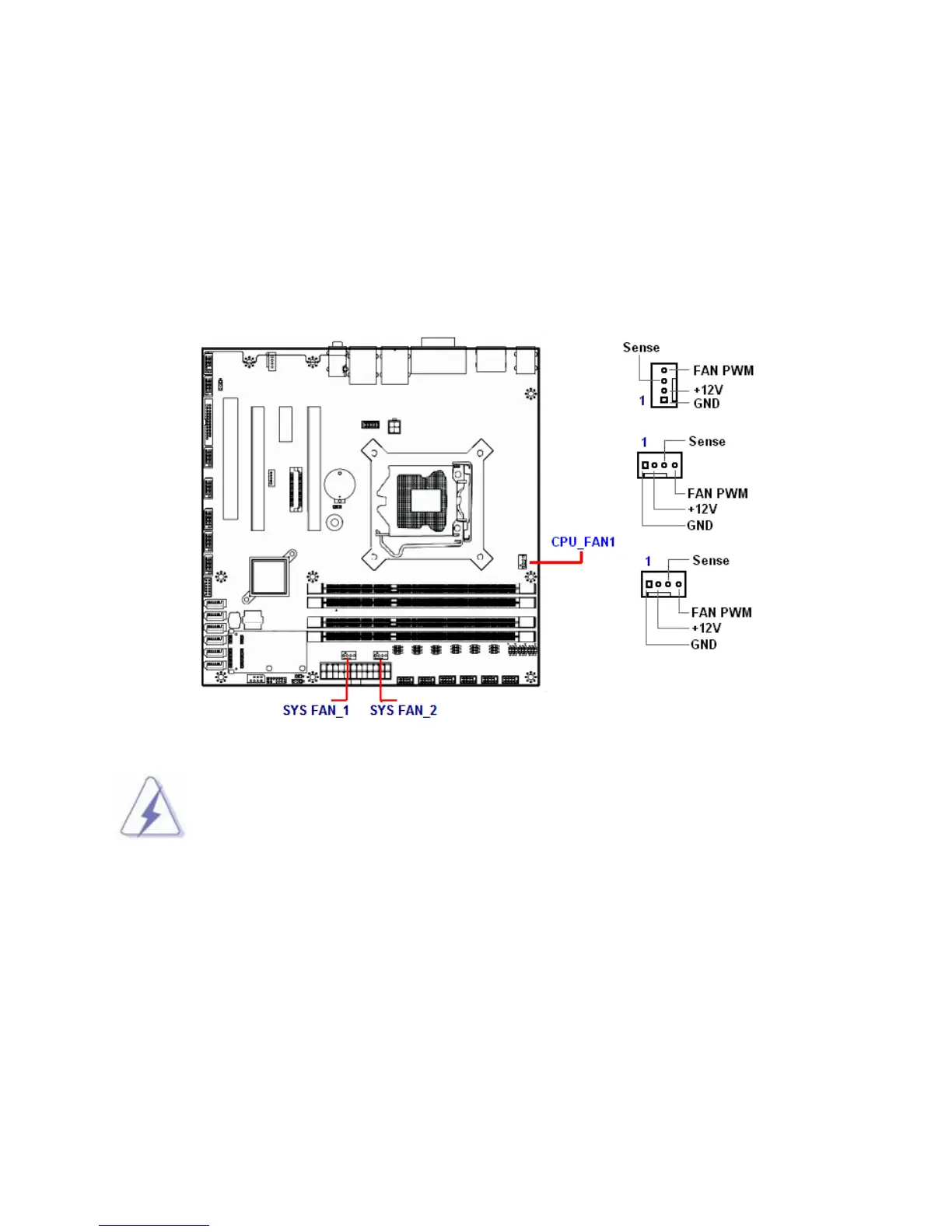

1.11.2 Fan Power Connectors: CN7, CN3, CN4
The fan power connectors support system cooling fan with +12V. When connecting the wire to these fan
connectors, please note that the red wire is designated as “Power” and should be connected to “+12V” pin;
the black wire is designated as “Ground” and should be connected to “GND”. In order to take the
advantage of System Hardware Monitor, be sure to use the fan which is specifically designed with speed
sensor.
Please refer to the recommended CPU fans at processor’s official website or consult
with the vendor for proper CPU cooling fan.
