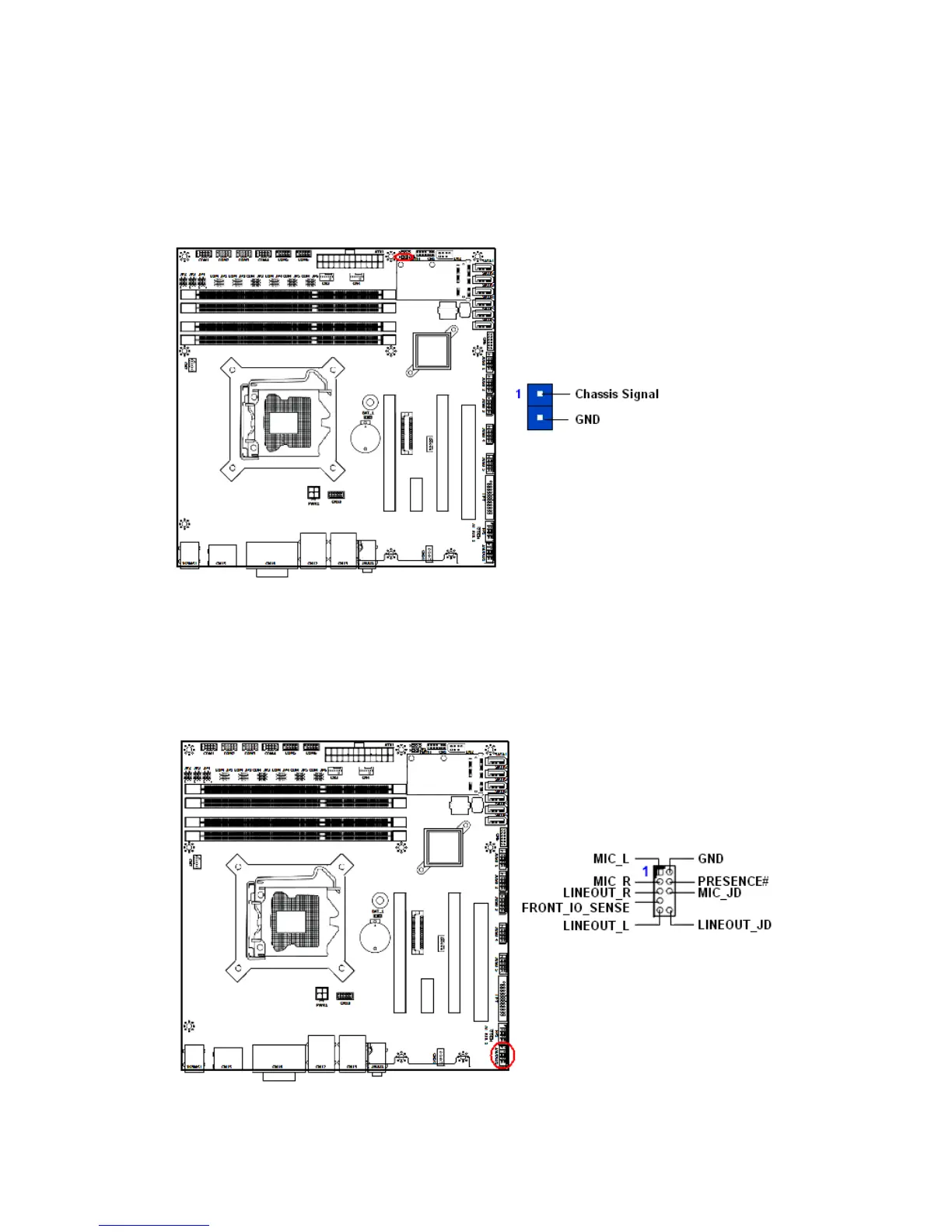

1.11.3 Chassis Intrusion Switch Connector: INTR1
This connector connects to a 2-pin chassis switch. If the chassis is opened, the switch will be short. The
system will record this status and show a warning message on the screen.
To clear the warning message, you must enter the BIOS and clear the record.
1.11.4 Front Panel Audio Connector: J_AUDIO1
This connector allows you to connect the front panel audio and is compliant with IntelĀ® Front Panel I/O
Connectivity Design Guide.
