User’s Guide18

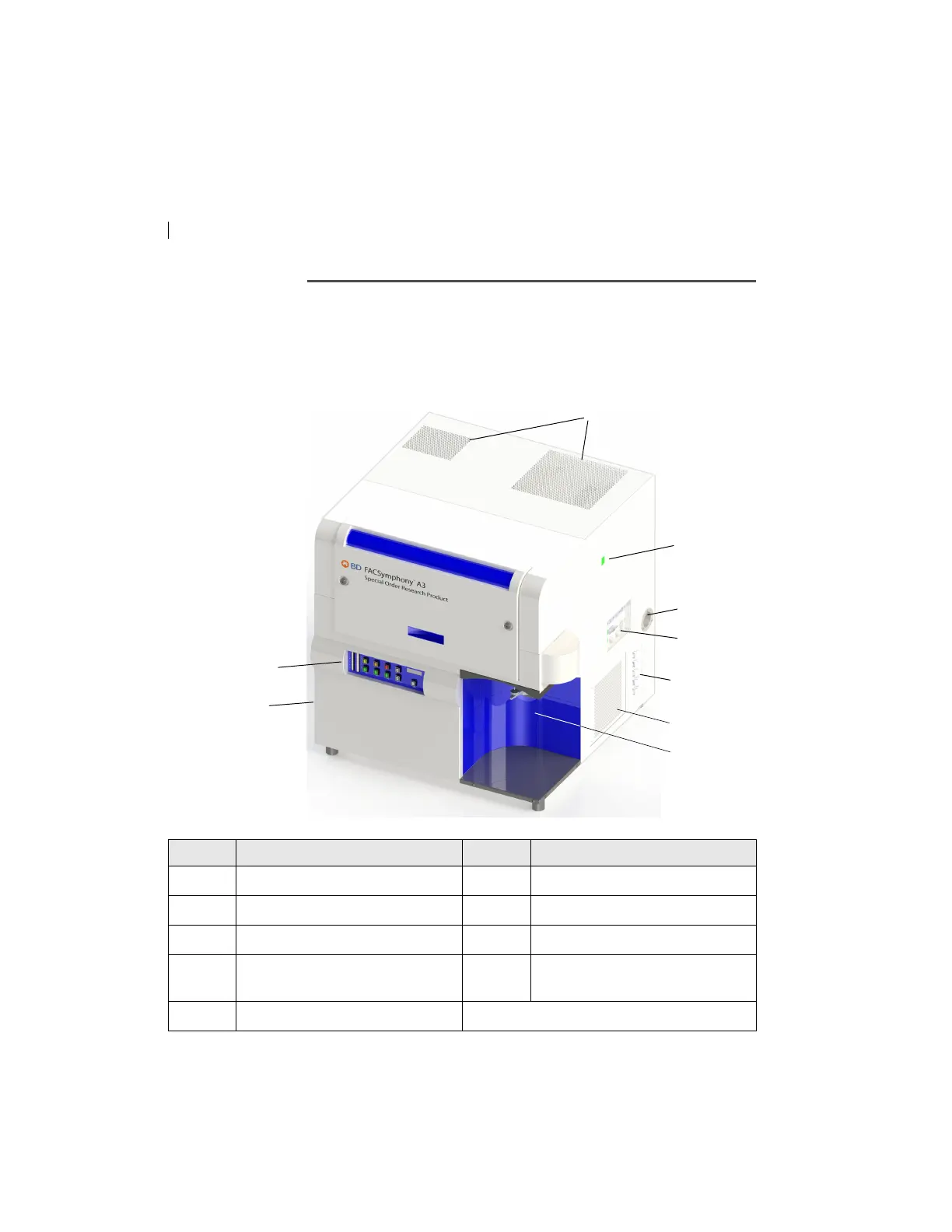

Components The following figures show the main components of each
instrument. Each component is described in detail in the following
sections.
BD FACSymphony A3
8
2
3
6
4
5
9
7
1
Number Component Number Component
1 Heat ventilation slots (top) 6 Sample injection port (SIP)
2 Control panel 7 Heat ventilation slots (side)
3 Power button 8 Air and fluidic ports
4 Electrical plug 9 Optics access door (decagon
or
cascade
detector arrays) left side
5 Fluidic sensors
