BD FACSymphony A3 - Page 19

Chapter 2: Introduction 19
BD FACSymphony A5
1
7
2
3
4
5
6
9
8

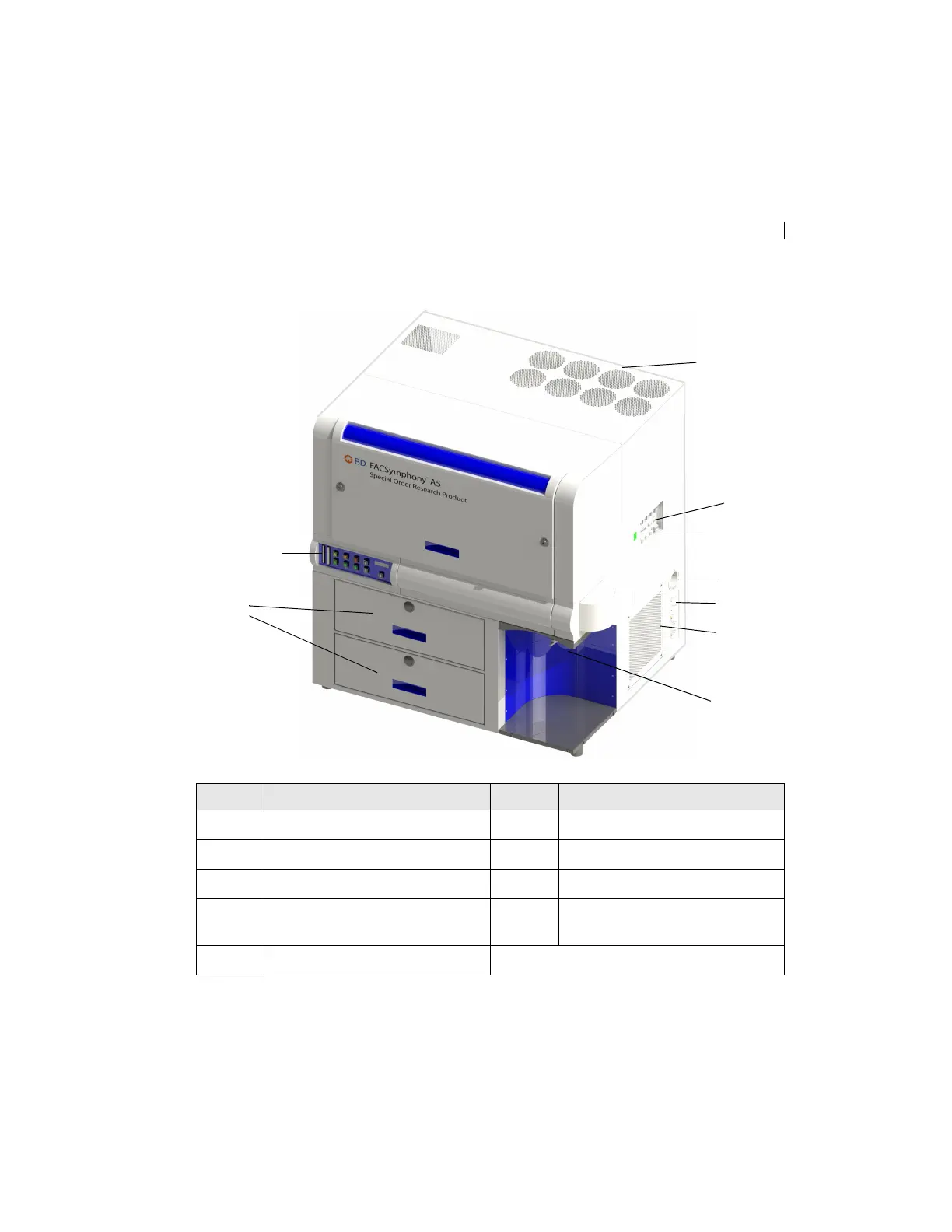

Number Component Number Component
1 Heat ventilation slots (top) 6 Sample injection port (SIP)
2 Control panel 7 Heat ventilation slots (side)
3 Power button 8 Air and fluidic ports
4 Electrical plug 9 Optics access doors (decagon
or
cascade
detector arrays)
5 Fluidic sensors
