C1
C2
3
x2
Page 6 of 12 75.5782.08 IXIO-ST 20230913

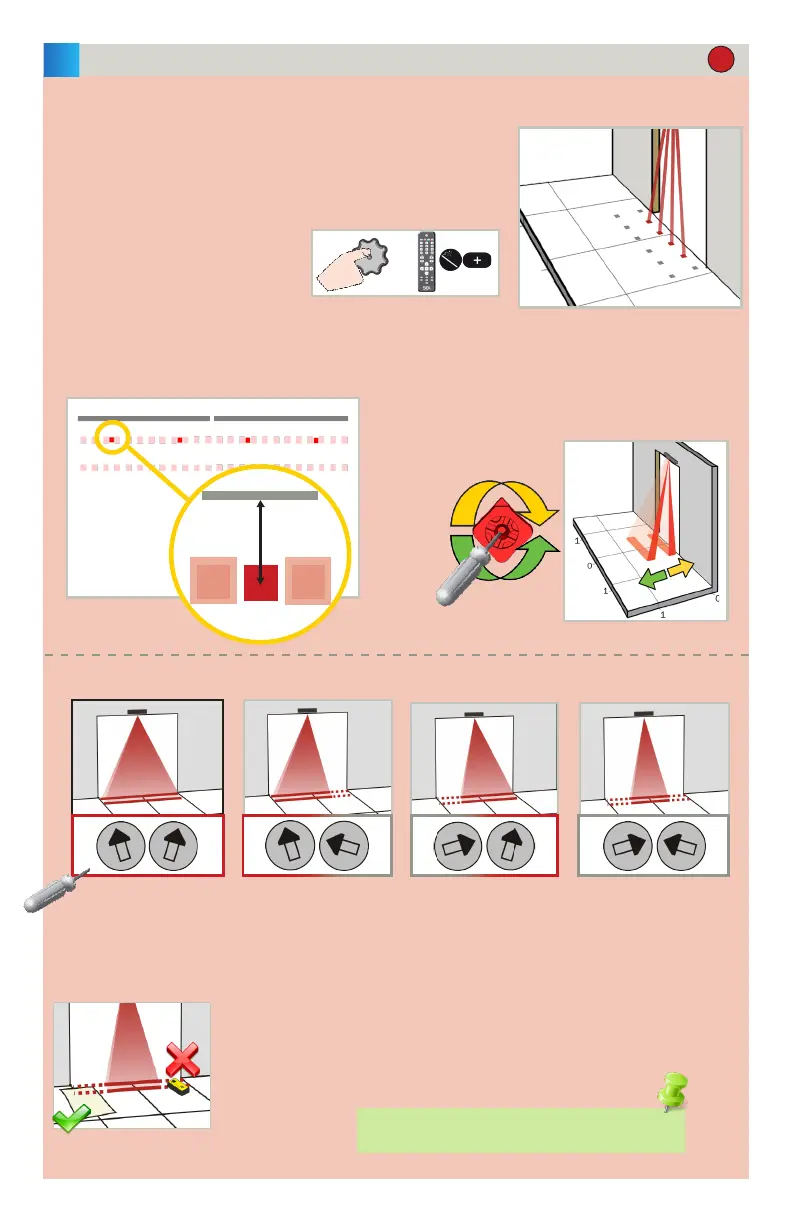

INFRARED SAFETY FIELD
If necessary, adjust the AIR curtain angle
(from -7° to 4°, default 0°).
Activate the visible spots to verify the position of the AIR curtain.
Visibility depends on external conditions. When spots are not visible, use
the Spotfinder to locate the curtains.
ANGLE
DOOR
max. 3 in
The distance between the inner curtain of the inside
door sensor and the inner curtain of the outside
door sensor should always be smaller than 8 in.
C1 = closest to sliding door
C2 = farthest from sliding door
Part of the detection field can be masked to reduce its width. The arrow position determines the width of the detection field.
The size of the detection field varies according to the mounting height and the settings of the sensor.
Wide setting has 1:1 ratio. For example, a 6-foot mounting height will project a 6-foot detection width at floor.
WIDTH
Always verify the actual detection field width by walk-testing according to ANSI 156.10.
Additional adjustments are possible by LCD or remote control
(see OVERVIEW OF SETTINGS).
OR
CLOSERCLOSER
AWAYAWAY
OU
x2
red LED = presence
detection
