Maintenance
C6920
43
Version: 3.2
1.
Remove the SSD from the PC by pulling forcefully on the protruding Beckhoff sticker (see fig. 27).
BECKHOFF
BECKHOFF

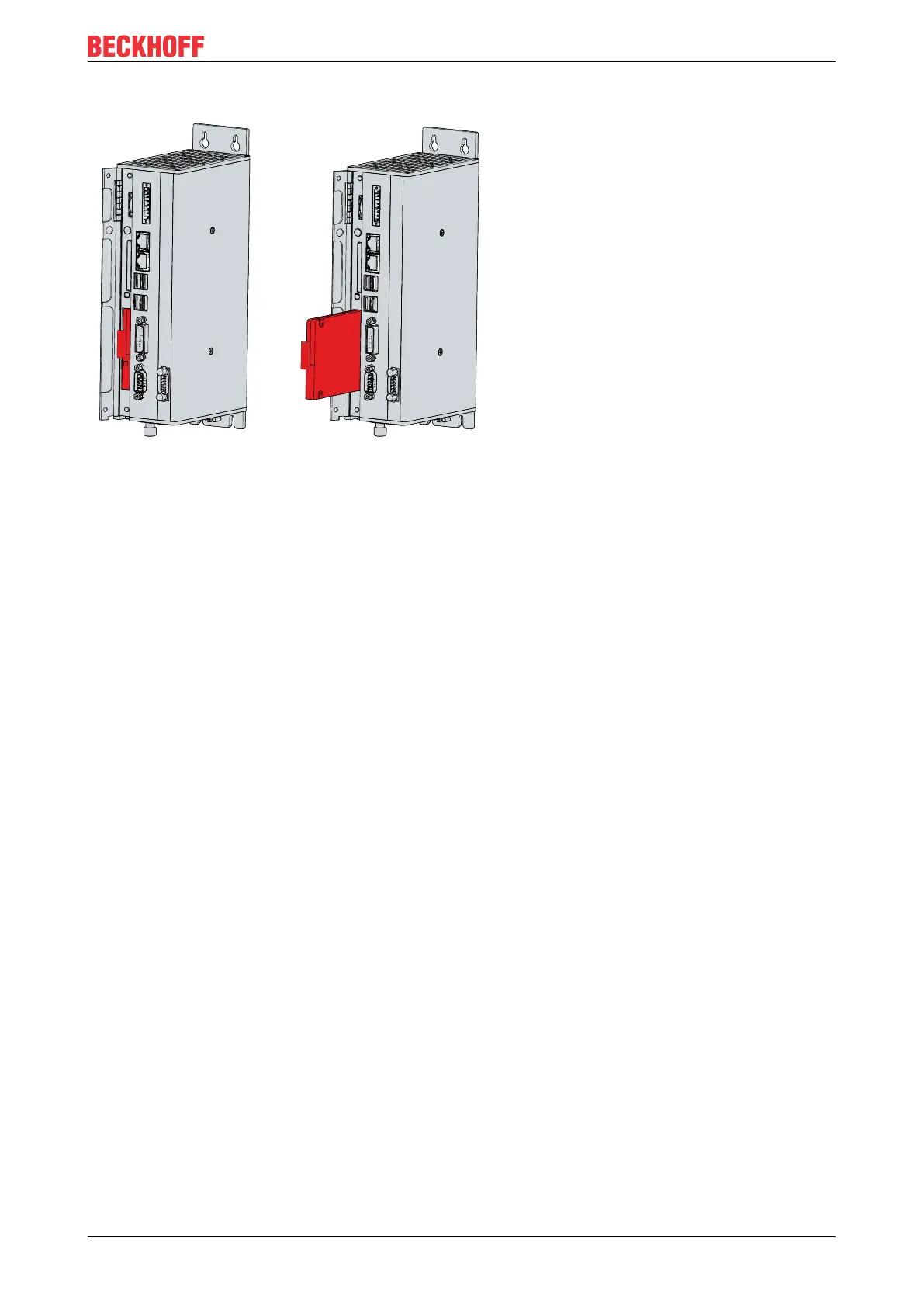

Fig.26: C6920_SSD replacement
2.
Insert the new SSD into the PC in the same orientation up to the stop.
ð
You have replaced the SSD.
