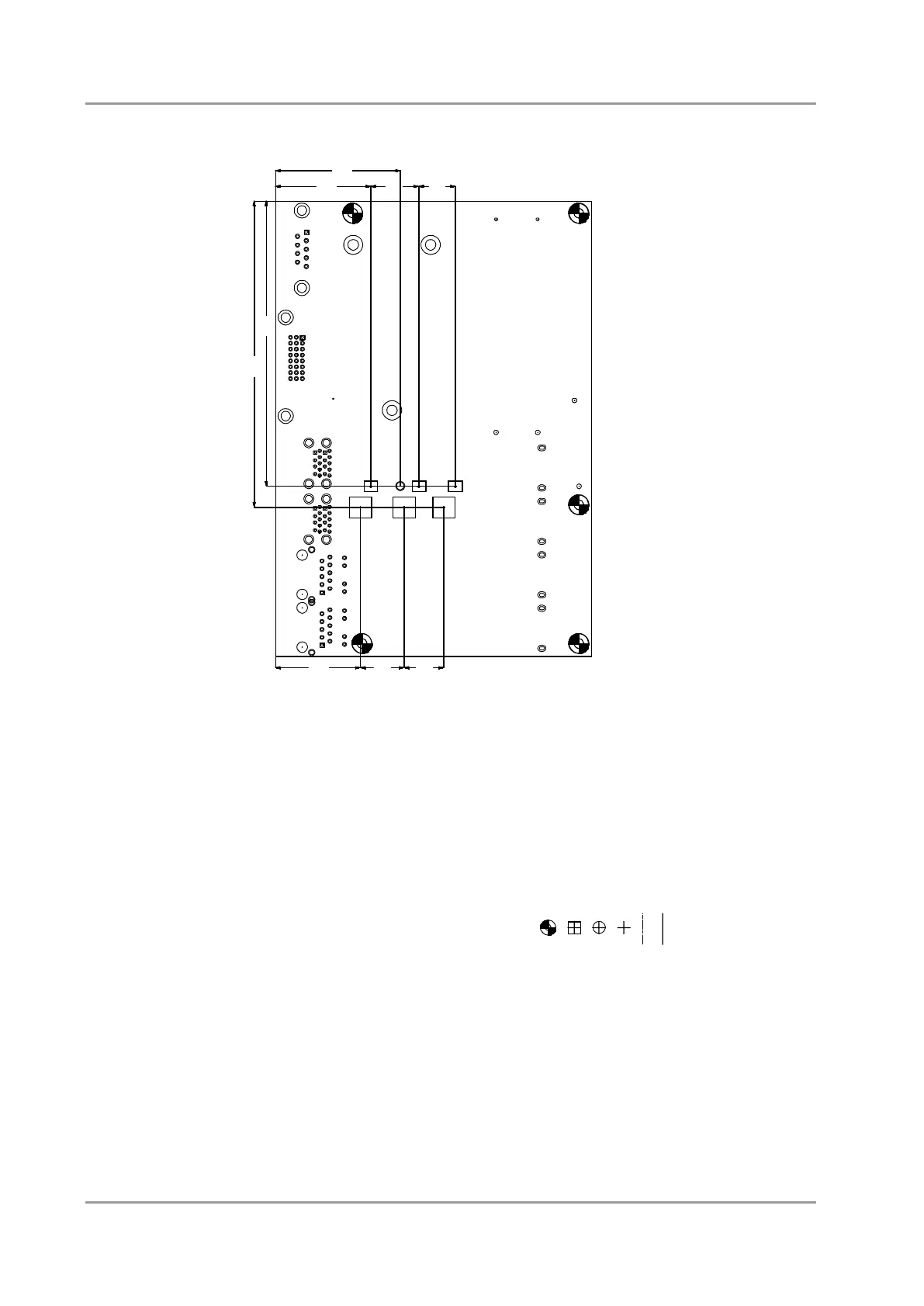

Chapter: Mechanical Drawings PCB: DIE Center
page 114 Beckhoff New Automation Technology CB3064-xxxx
7.3 PCB: DIE Center
Mounting Hole
Chip-DIE cooling
Electrical isolated cooling required
Center Point Cooling Area
Dotted Line = Chip outline
Solid Line = Cooling Area
1590
1213 609 466
3626
3895
H6: drill 98 mil,Pad 197mil
max. 8W
max. 8W
max. 8W
H6
dimension = mil
1080 555 505
