Chapter: Connectors Fan Connectors
page 34 Beckhoff New Automation Technology CB3064-xxxx
4.13 Fan Connectors
Three external fans (12V) can be connected to the board using a 2x5-pin connector. Monitoring signals
are available. For the monitoring to work the fans must provide a corresponding speed signal.
Manufacturer
Description
Mating Connector
FCI
98424-G52-10LF
90311-010LF

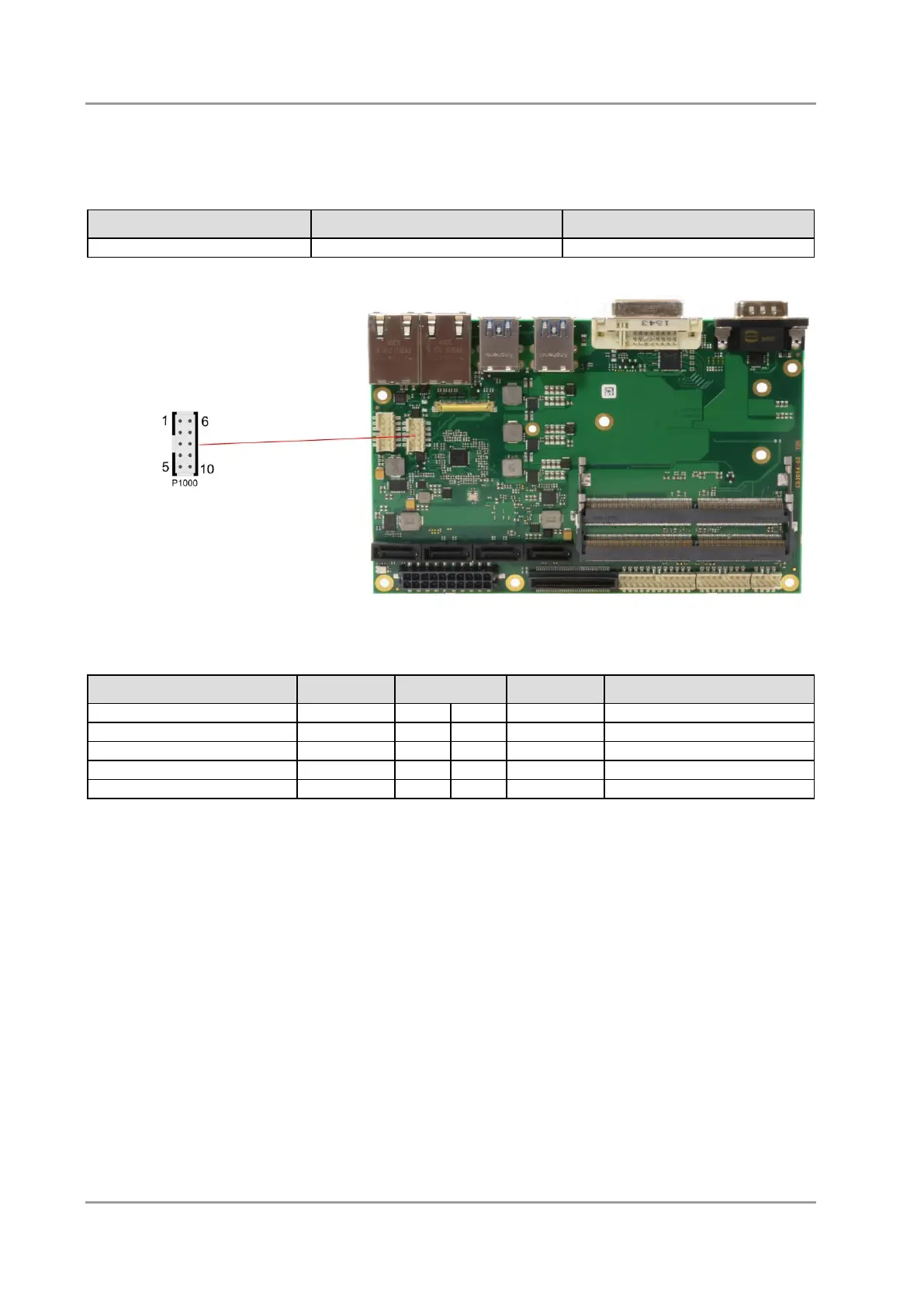

Pinout 2x5-pin connector:
Description
Name
Pin
Name
Description
FAN 1 ON
FANON1
1
6
FANON2
FAN 2 ON
12V
12V
2
7
12V
12V
FAN1 control
FANCTRL1
3
8
FANCTRL2
Fan 2 control
12V
12V
4
9
FANCTRL3
Fan 3 control
FAN 3 ON
FANON3
5
10
GND
ground
