Beckhoff CB3064 Series User Manual

System Chapter: Connectors
Beckhoff New Automation Technology CB3064-xxxx page 35
4.14 System
A number of signals for system control and for SMBus communication are provided through a 2x12-pin
connector. This connector combines signals for power button, speaker, and several LEDs such as a
suspend LED, and three additional LEDs which are driven by GPIOs. Of these three GPIO-LEDs, LED1
and LED2 are already provided with a series resistor. SMBus capable devices can also be connected.

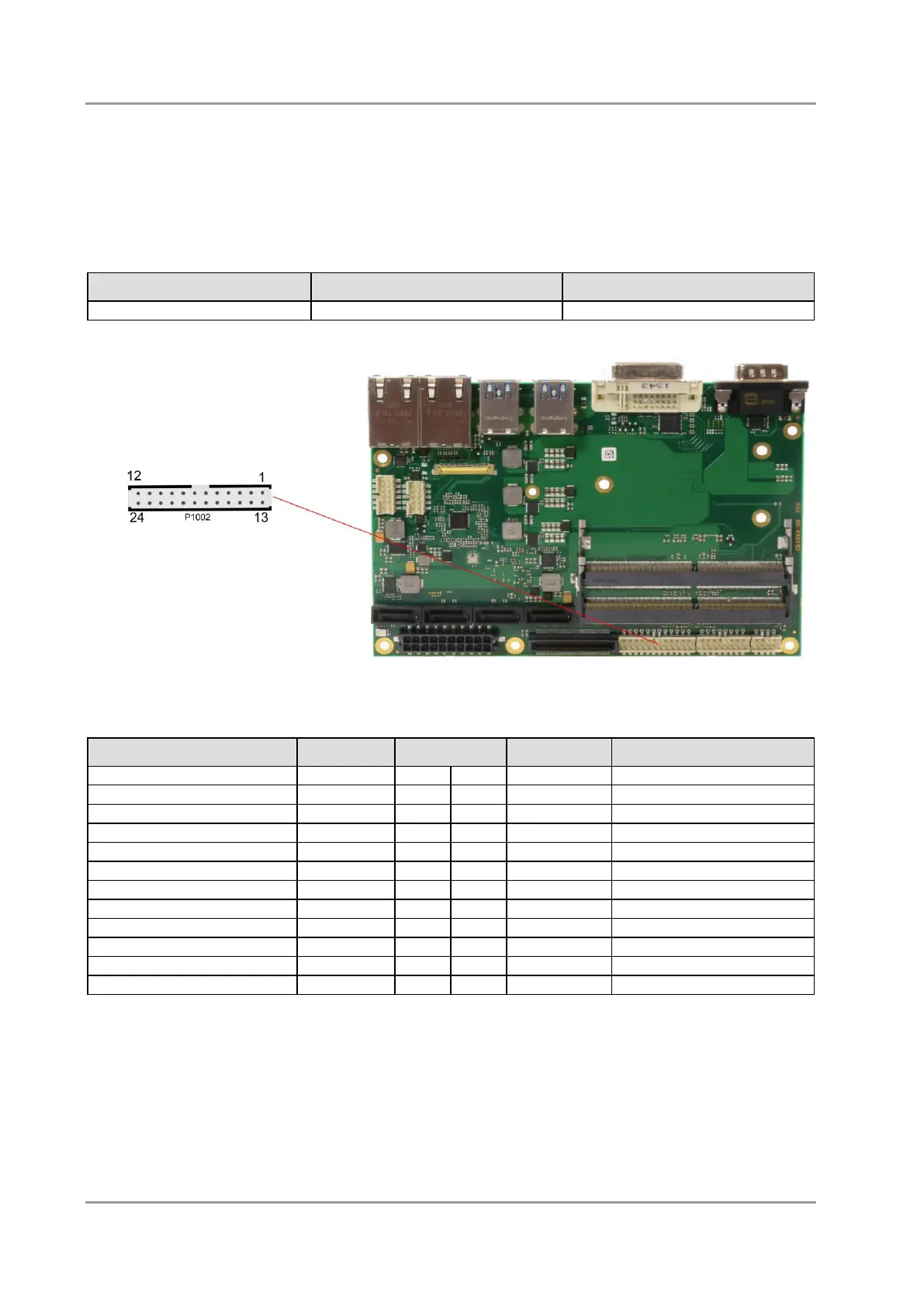

2x12-pin connector:
Manufacturer
Description
Mating Connector
Amphenol FCI
98424-G52-24LF
e.g. 89947-124LF
Pinout 2x12-pin connector:
Description
Name
Pin
Name
Description
Ground
GND
1
13
3.3V
Power supply 3,3V
Reset to ground
RSTBTN#
2
14
PWRBTN#
On/Suspend button
LED suspend / ACPI
S-LED
3
15
S3.3V
Standby power supply 3.3V
LED harddisk
SATALED
4
16
GPIOLED3
LED GPIO device 3
LED GPIO device 1
GPIOLED1
5
17
BATT
RTC battery
LED GPIO device 2
GPIOLED2
6
18
SMBALERT#
SMB alert
SMB clock
SMBCLKEX
7
19
SMBDATEXT
SMB data
Speaker
SPEAKER
8
20
SVCC
Standby power supply 5V
Not connected
N/C
9
21
N/C
Not connected
Ground
GND
10
22
VCC
Power supply 5V
Ground
GND
11
23
VCC
Power supply 5V
Ground
GND
12
24
VCC
Power supply 5V
