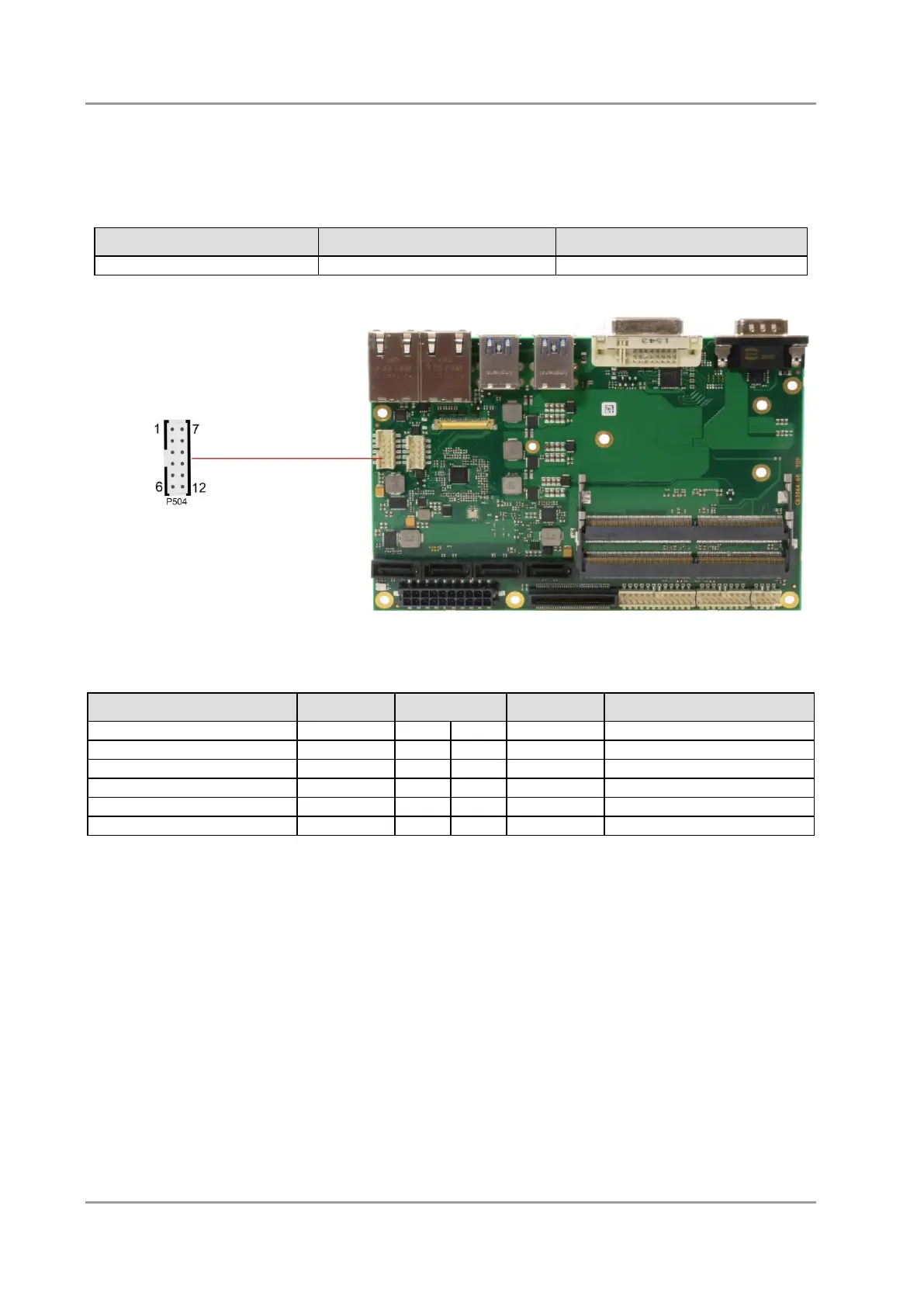

4.12 GPIO
The General Purpose Input/Output interface is made available through a 2x6-pin connector. To make use
of this interface the GPIO chip (PCA9535BS) must be programmed accordingly. Please refer to your
distributor for information on available software support.
Manufacturer
Description
Mating Connector
FCI
FCI 98424-G52-12LF
FCI 90311-012LF
Pinout GPIO connector:
Description
Name
Pin
Name
Description
5 volt supply
VCC
1
7
VCC
5 volt supply
GP input/output 10
GPIO10
2
8
GPIO14
GP input/output 14
GP input/output 11
GPIO11
3
9
GPIO15
GP input/output 15
GP input/output 12
GPIO12
4
10
GPIO16
GP input/output 16
GP input/output 13
GPIO13
5
11
GPIO17
GP input/output 17
ground
GND
6
12
GND
ground
