SATA Interfaces Chapter: Connectors
Beckhoff New Automation Technology CB3064-xxxx page 29

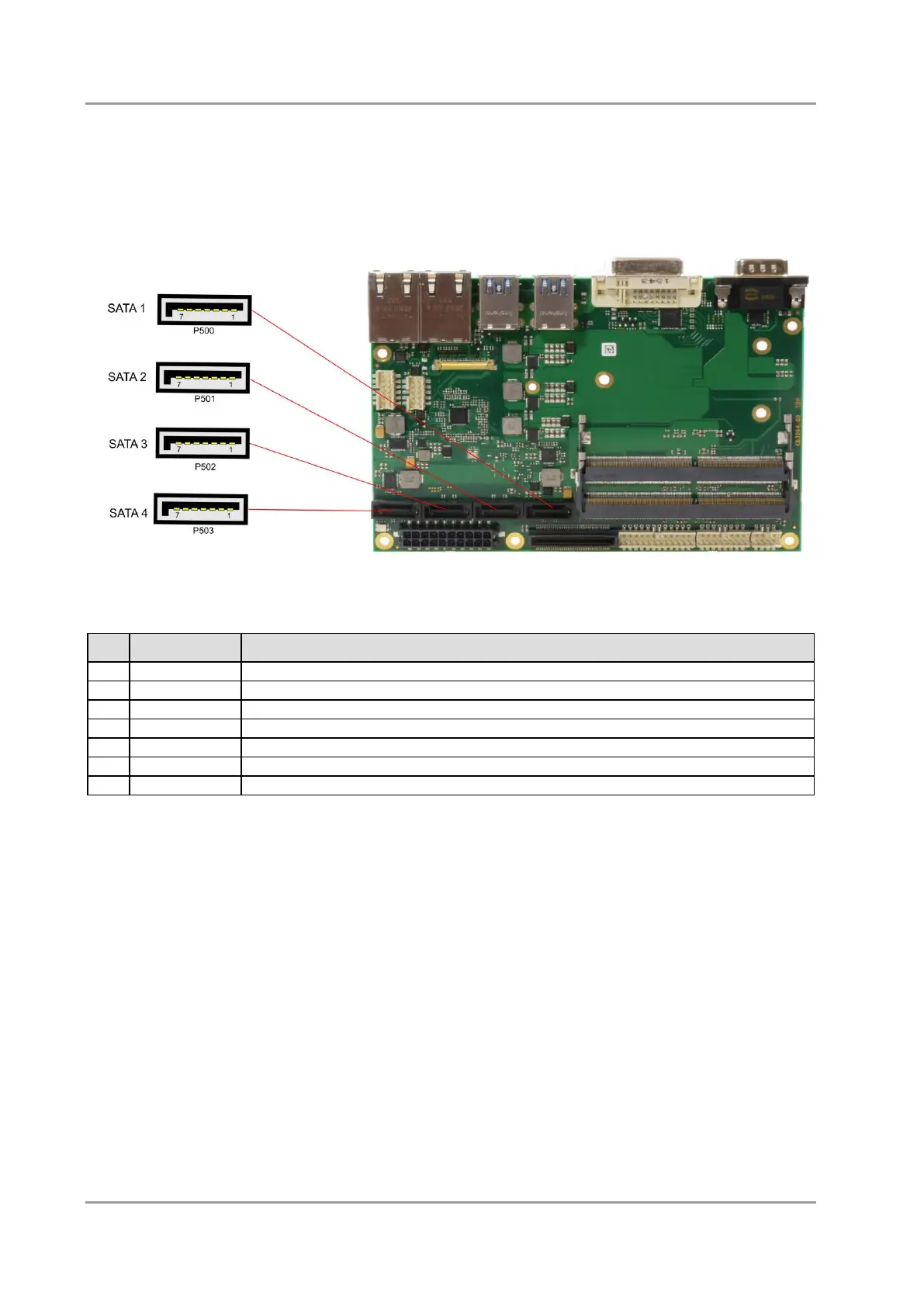

4.9 SATA Interfaces
The CB3064 provides four SATA interfaces which allows transfer rates of up to 6 Gb/s. The interface is
made available via a standard SATA connector and supports RAID 0/1/5/10.
The required settings are made in the BIOS setup.
Pinout SATA:
Pin
Name
Description
1
GND
ground
2
SATATX
SATA transmit +
3
SATATX#
SATA transmit -
4
GND
ground
5
SATARX
SATA receive -
6
SATARX#
SATA receive +
7
GND
ground
