Beckhoff CB3064 Series User Manual

DVI/HDMI/DisplayPort and USB3.0 Chapter: Connectors
Beckhoff New Automation Technology CB3064-xxxx page 23

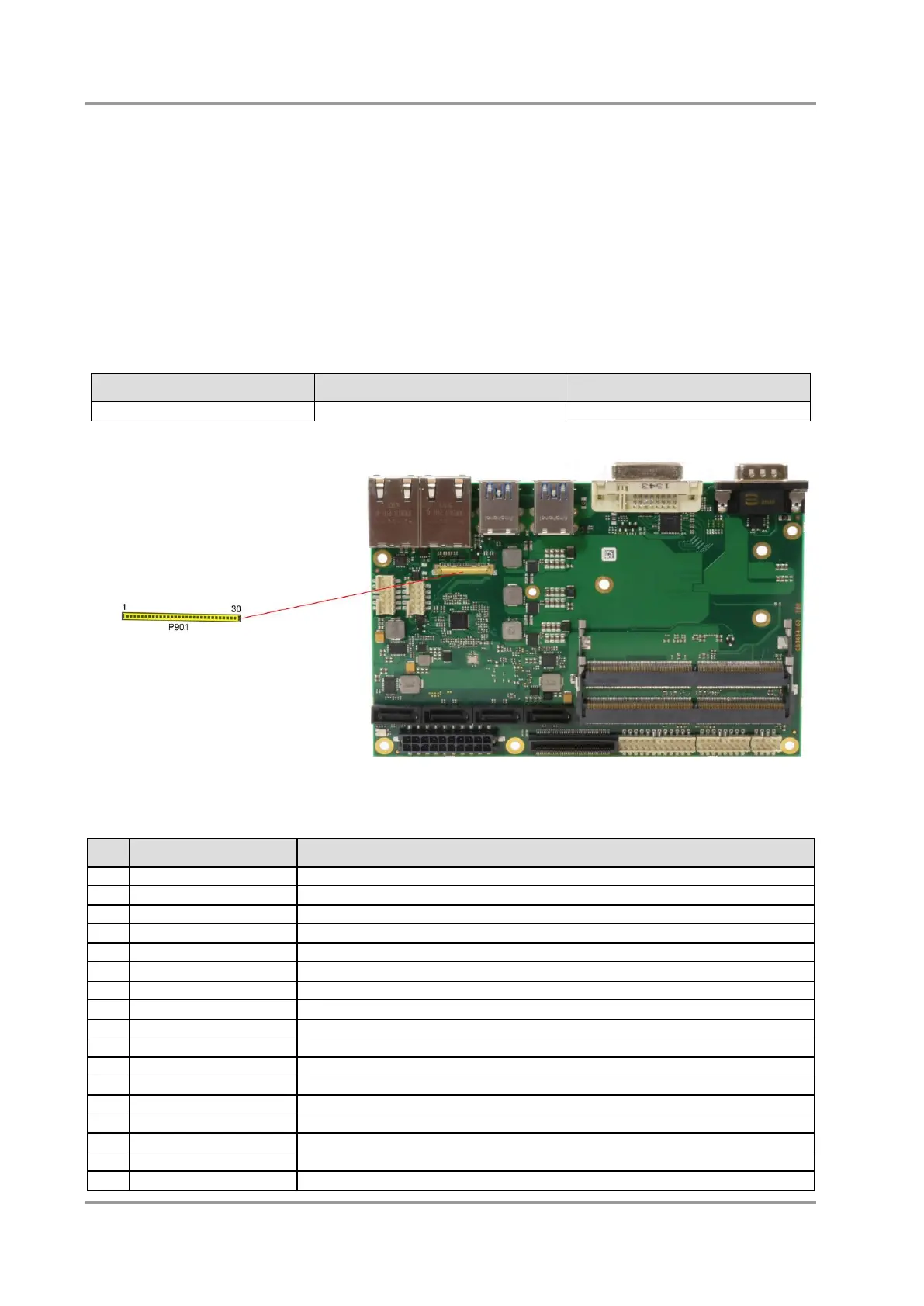

4.5 DVI/HDMI/DisplayPort and USB3.0
The CB3064 provides a second DVI interface which is realized as a 30-pin flat cable header. Analog VGA
is not available on this connector. However, an HDMI device or DisplayPort device can be connected.
This custom connector also carries an additional USB interface. The USB interface supports USB 3.0. It
provides up to 900 mA current and is protected by an electronically resettable fuse.
When cabling, please make sure that receive lines are always connected to the transmit lines and vice
versa.
Maximum current is 2 amperes for VCC combined (0.5A per contact), and 1 ampere for 3.3V (0.5A per
contact).
Please note that a custom cable design is required.
Manufacturer
Description
Mating Connector
I-PEX
20455-030E-12
custom design
Pinout 30pin connector DVI/HDMI/DisplayPort:
Pin
Name
Description
1
TMDS0#/DP2#
DVI Data 0 - / DP Lane 2 -
2
TMDS0/DP2
DVI Data 0 + / DP Lane 2 +
3
TMDS1#/DP1#
DVI Data 1 - / DP Lane 1 -
4
TMDS1/DP1
DVI Data 1 + / DP Lane 1 +
5
TMDS2#/DP0#
DVI Data 2 - / DP Lane 0 -
6
TMDS2/DP0
DVI Data 2 + / DP Lane 0 +
7
TMDSCLK#/DP3#
DVI Clock - / DP Lane 3 -
8
TMDSCLK/DP3
DVI Clock + / DP Lane 3 +
9
N/C
reserved
10
SEL_DVI/DP#
DVI-DisplayPort Select
11
DDCK/DPAUX
EDID Clock / DP Aux +
12
DDDA/DPAUX#
EDID Data / DP Aux -
13
VCC
5V supply
14
GND
ground
15
HPD
hot plug detect
16
USBVCC
5V supply for USB
17
USBVCC
5V supply for USB
