Chapter: Connectors USB2.0 (internal)
page 26 Beckhoff New Automation Technology CB3064-xxxx
4.7 USB2.0 (internal)
The USB channel 9 to 14 are made available via two connectors.
Channel 9 to 12 are provided via a 2x8-pin connector, channel 13 and 14 are provided via a 2x4-pin
connector.
The USB channels support USB 2.0. You may note that the setting of USB keyboard or USB mouse
support in the BIOS-setup is only necessary and advisable, if the OS offers no USB-support. BIOS-setup
can be changed with a USB keyboard without enabling USB keyboard support. Running Windows with
these features enabled may lead to significant performance or functionality limitations.
Every USB interface provides up to 500 mA current and is protected by an electronically resettable fuse.

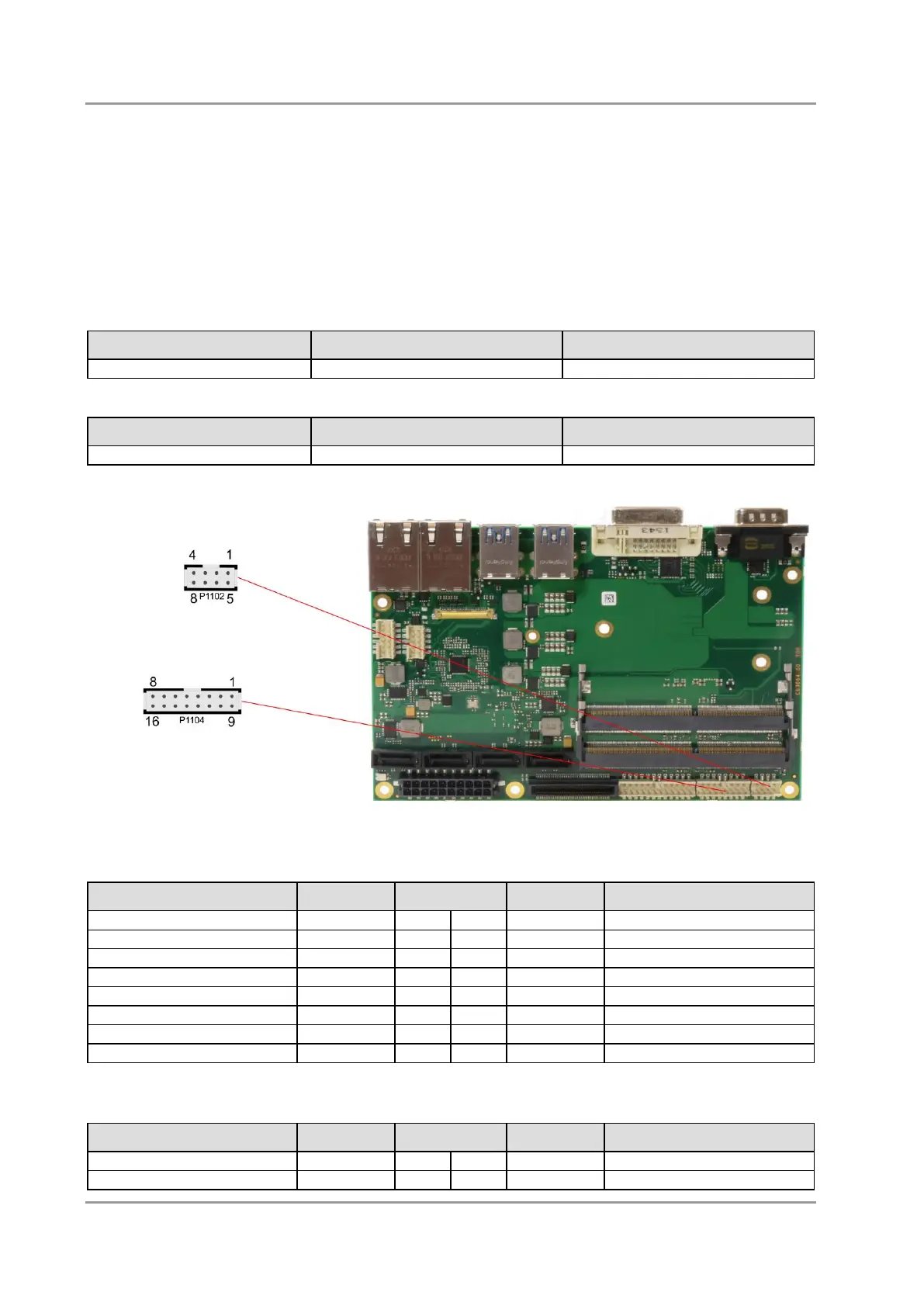

2x8-pin connector:
Pinout 2x8-pin USB connector:
Minus data channell USB11
Pinout 2x4-pin USB connector:
