Beckhoff CP2712 - Table 1 Legend Cp27 Xx Structure; Fig. 2 Cp27 Xx

To Next Page

To Previous Page

Product overview

CP27xx 11Version: 2.0

3.1 Structure

21 3 4

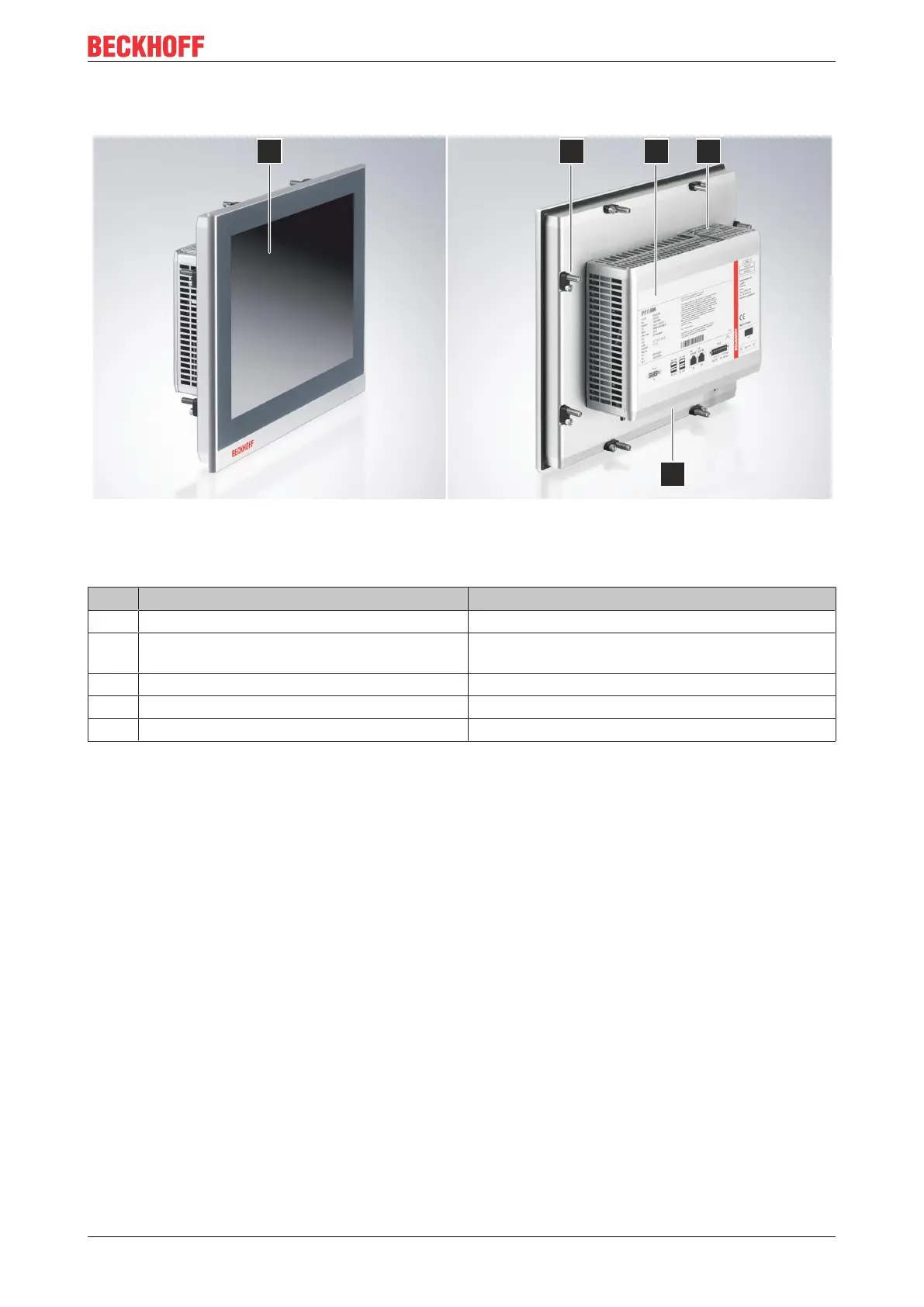

Fig.2: CP27xx_structure

Table1: Legend CP27xx structure

No. Component Description

1 Display and touch screen glass Operation of the panel PC

2 Clamping lever Mounting the panel PC in the panel of the control

cabinet

3 Name plate Information on the equipment of the panel PC

4 Access to battery and storage media Battery and storage media behind cover

5 Access to interfaces Interfaces on the underside

Optionally, you can order the following devices with a stainless steel front instead of an aluminum front. For

this you need to order the device itself and the ordering option below:

• CP2713 (ordering option stainless steel front: C9900-F942)

• CP2716 (ordering option stainless steel front: C9900-F945)

• CP2718 (ordering option stainless steel front: C9900-F946)

• CP2721 (ordering option stainless steel front: C9900-F948)

The following figure shows the structure of a stainless steel device.
