Product overview
CP27xx18 Version: 2.0
3.4 Name plate
The name plate provides information about the panel PC equipment. The name plate shown here serves
only as an example.
1
2
3
4
6
5
8
13
12
7
9
10
11
14
15 16
17
18
19
20
21
22
23
24
2526

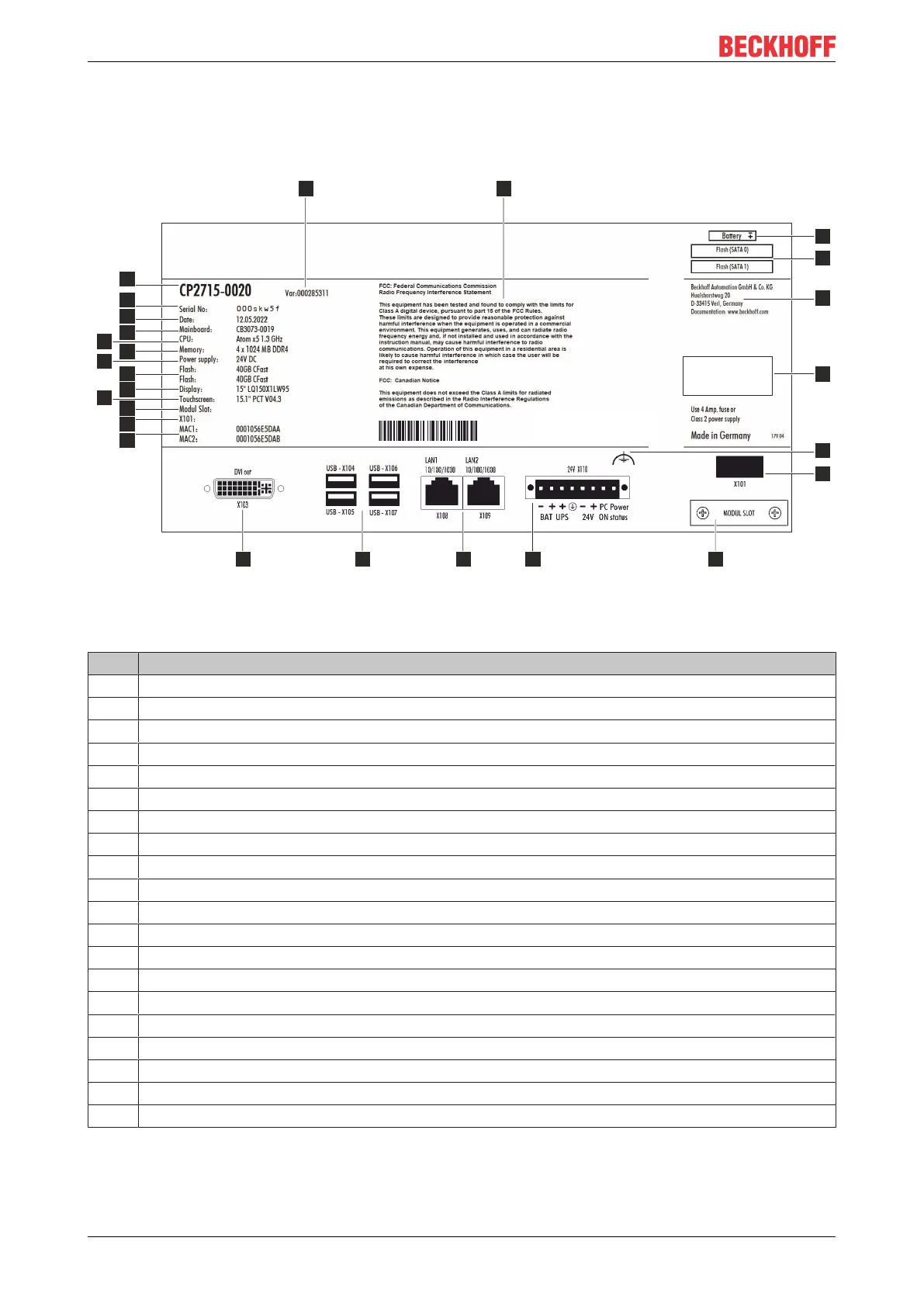

Fig.10: CP27xx_name plate
Table10: Legend CP27xx name plate
No. Description
1 Model: The last four digits indicate the device generation.
2 Serial number (BTN)
3 Date of manufacture
4 Mainboard
5 CPU
6 Main memory
7 Power supply
8 Storage media
9 Display
10 Touch screen
11 Optional slot for PCIe compact modules
12 Optional interface (X101)
13 MAC addresses of the Ethernet interfaces (X108, X109)
14 DVI interface (X103)
15 USB interfaces (X104 - X107)
16 Ethernet interfaces (X108, X109)
17 Connection of the power supply and protective earth of the panel PC (X110)
18 Module slot
19 Optional interface led out into the connection section (X101)
20 Grounding bolt for functional earthing of the panel PC
