Appendix

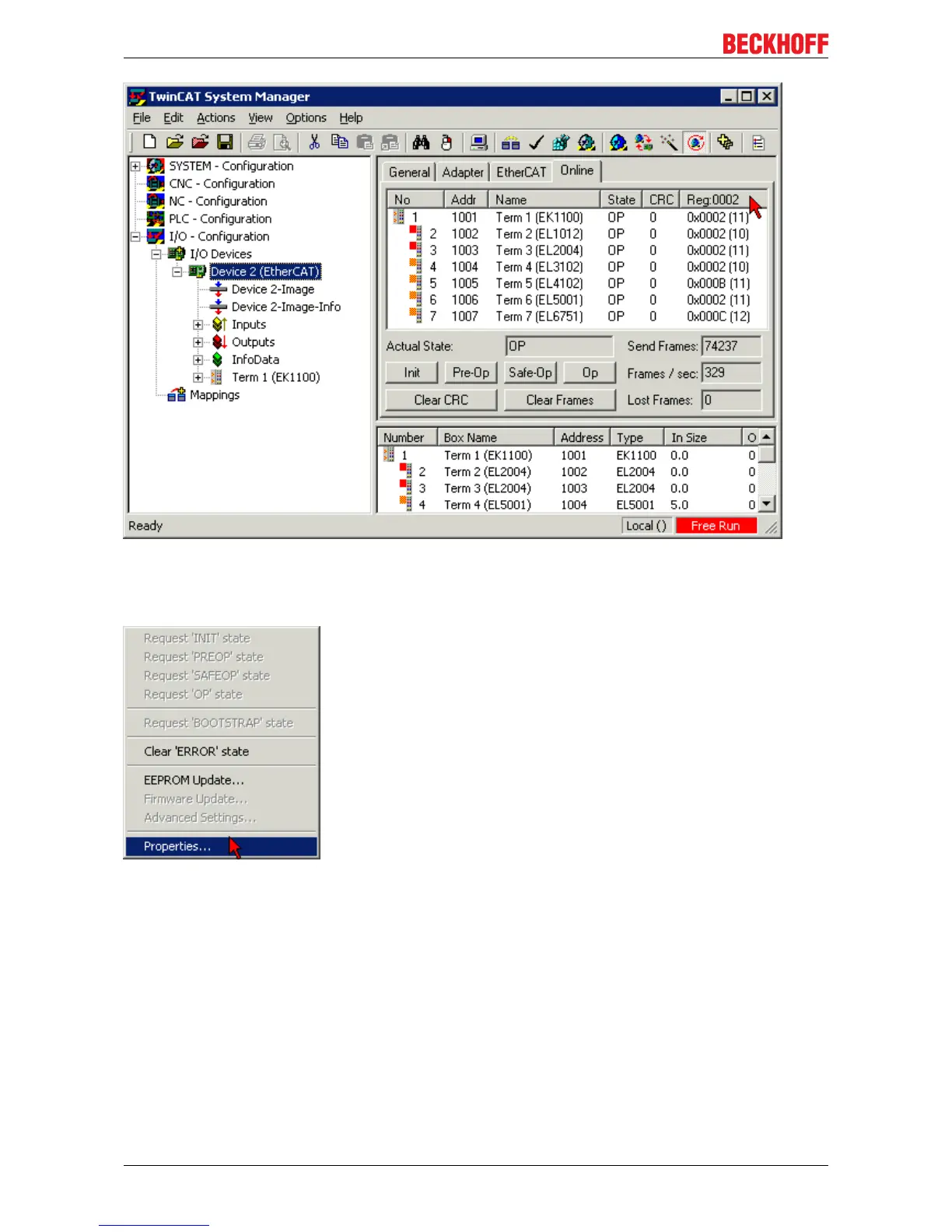

Fig.184: FPGA firmware version definition
If the column Reg:0002 is not displayed, right-click the table header and select Properties... in the context
menu.
Fig.185: Context menu Properties
The Advanced Settings dialog appears where the columns to be displayed can be selected. Under
Diagnosis/Online View select the '0002 ETxxxx Build' check box in order to activate the FPGA firmware
version display.
EL72x1-0010198 Version: 2.0
