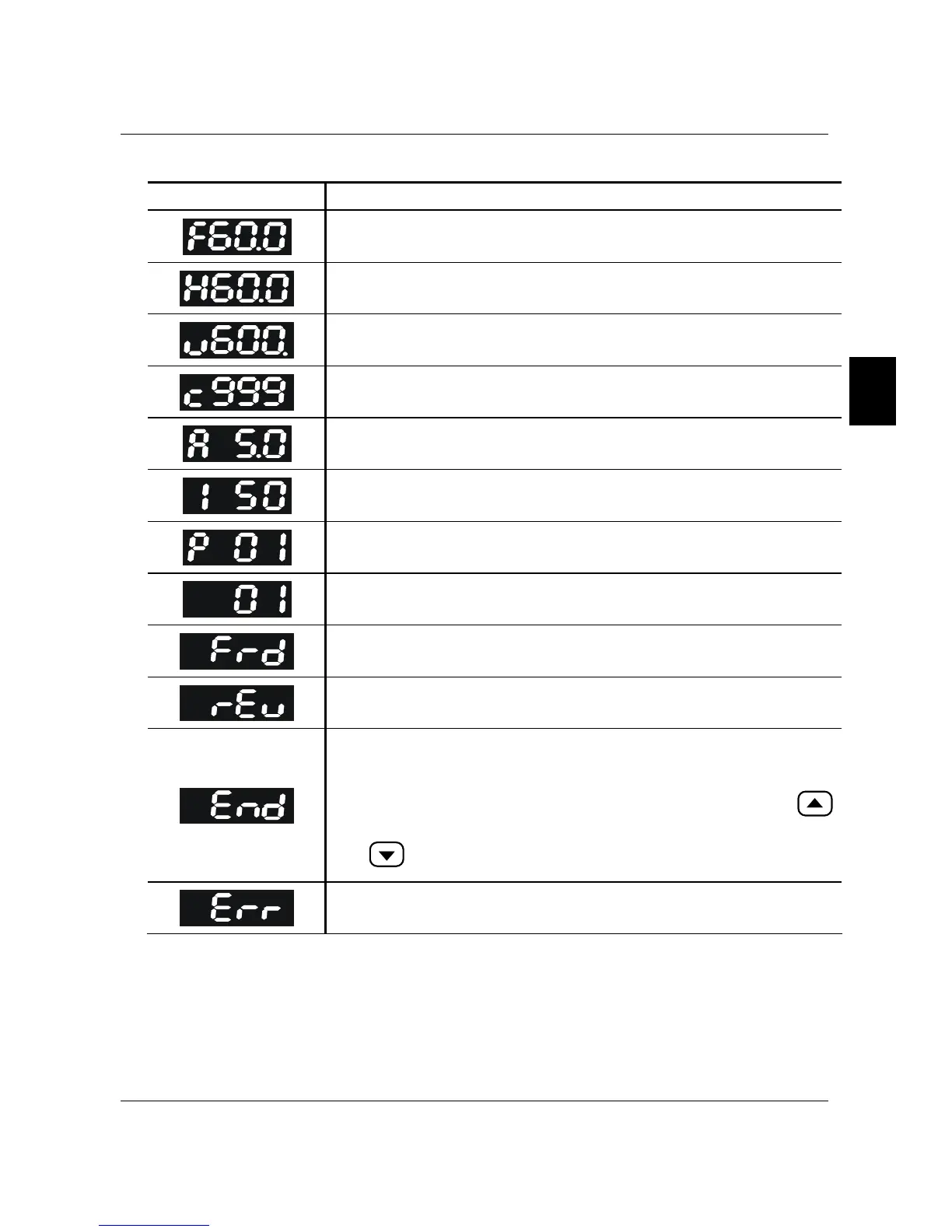

Explanations of Display Messages
Displayed Message
Descriptions
The AC drives Master Frequency.
The Actual Operation Frequency present at terminals U, V, and W.
The custom unit (v), where v = H x Pr.-65.
The counter value (c).
The output current present at terminals U, V, and W
The internal PLC process step currently being performed.
The specified parameter.
The actual value stored within the specified parameter.
The AC drive forward run status.
The AC drive reverse run status.
“End” displays for approximately 1 second if input has been
accepted. After a parameter value has been set, the new value is
automatically stored in memory. To modify an entry, use the
and
keys.
“Err” displays, if the input is invalid.
