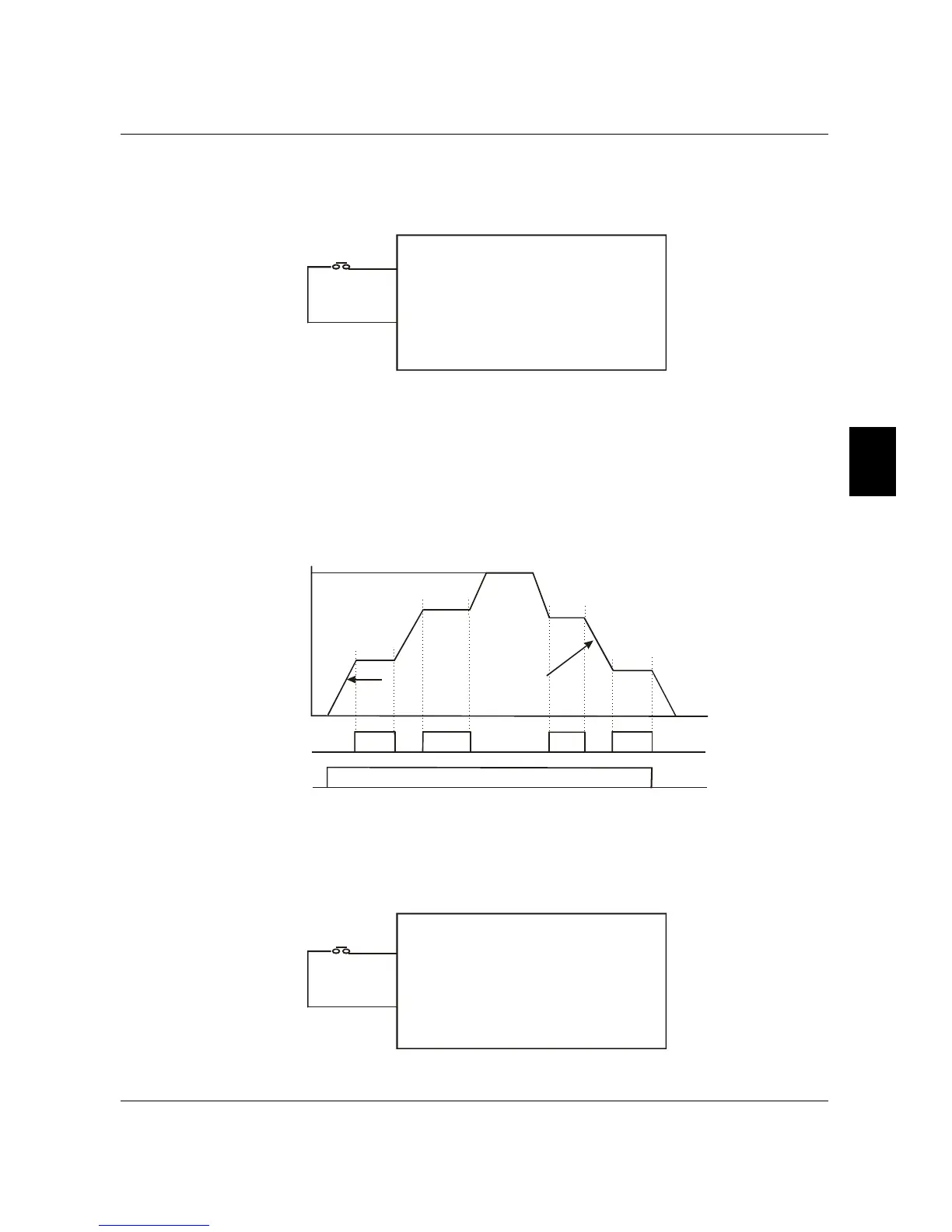

09 Jog Operation Control:
Parameter value 09 programs Multi-Function Input Terminal: M1 (Pr.38), M2 (Pr.39), M3
(Pr.40), M4 (Pr.41) or M5 (Pr.42) for Jog control.
GND
Mx "Close": Operation available
9 jog operation
command
Note: Jog operation programmed by 9 can only be initiated while the motor is stop. (Refer to
Pr.15, Pr.16.)
10 Accel/Decel Speed Inhibit:
Parameter value 10 programs Multi-Function Input Terminal: M1 (Pr.38), M2 (Pr.39), M3
(Pr.40), M4 (Pr.41) or M5 (Pr.42) for Accel/Decel Inhibit. After receiving this command, the
AC Drive stops accelerating or decelerating and maintains a constant speed.
Frequency
Master Frequency
Accel inhibit
Accel inhibit
Actual operation frequency
Decel
inhibit
Decel
inhibit
Time
Mx-GND
Operation
command
ON ON
ON ON
ON
OFF
11 First or Second Accel/Decel Time Selection:
Parameter value 11 programs a Multi-Function Input Terminal: M1 (Pr.38), M2 (Pr.39), M3
(Pr.40), M4 (Pr.41) or M5 (Pr.42) for selecting the First or Second Accel/Decel time. (Refer
to Pr.10 to Pr.13.)
GND
Mx "Close": 2nd Accel/Decel
Mx set 11
"Open": 1st Accel/Decel
