Freq.

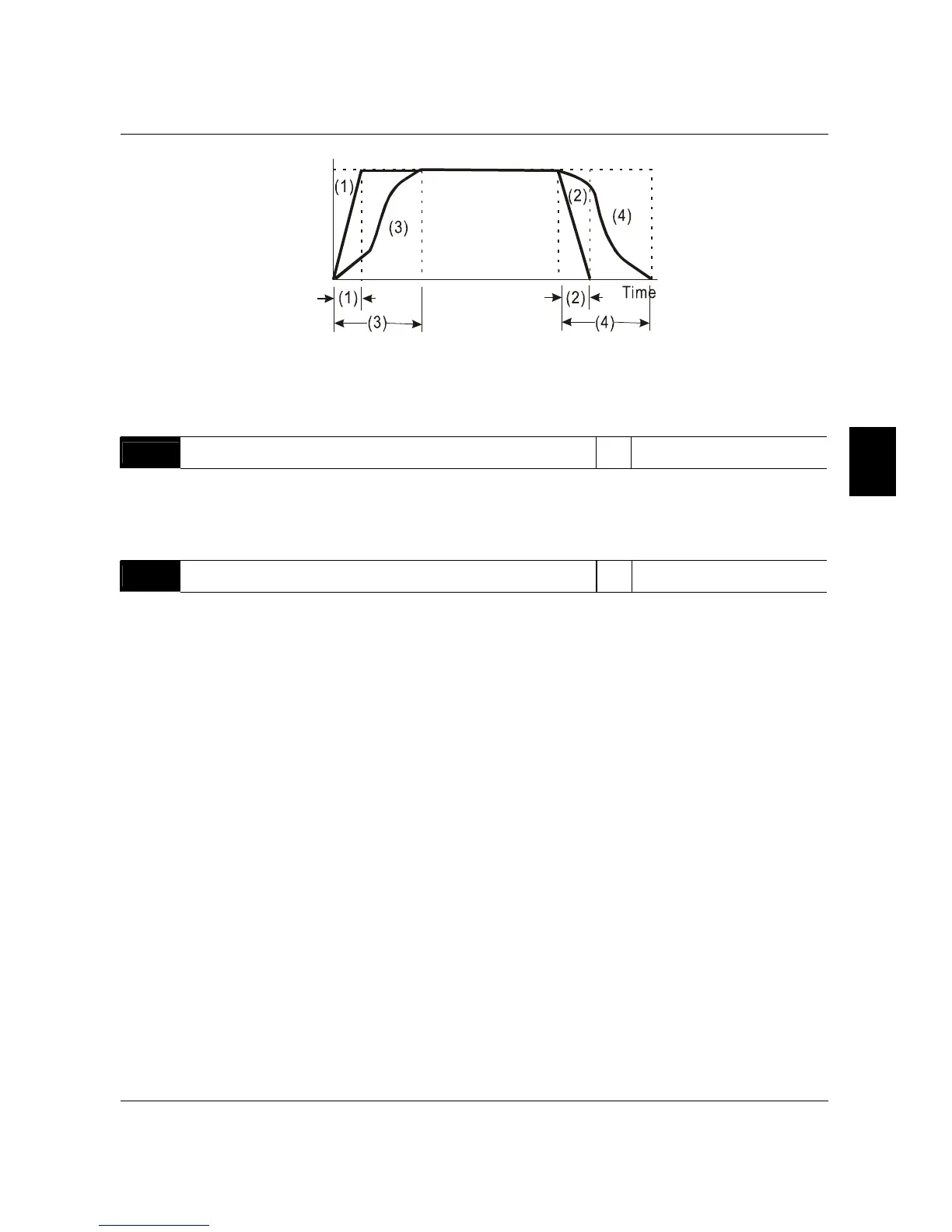

Acceleration/Deceleration characteristics
(1), (2) Disabling S curve
(3), (4) Enabling S curve
Pr.15
Jog Accel / Decel Time
a
Factory Setting: 1.0 sec
Settings 0.1 to 600.0 sec or 0.01 to 600.0 sec Unit: 0.1 or 0.01 sec
 This parameter sets the acceleration or deceleration time for Jog operation.
Pr.16
Jog Frequency
a
Factory Setting: 6.00 Hz
Settings 0.00 to 400.0 Hz Unit: 0.1 Hz
 When the JOG function is activated, the AC drive will accelerate from Minimum Output
Frequency (Pr.08) to Jog Frequency (Pr.16). Drive must be in “stop” status for the
operator to activate the JOG function. Likewise, during Jog operation, other commands
cannot be accepted through the keypad but FORWARD, REVERSE and STOP. The
JOG function can be remotely activated when the Jog terminal is closed, and if the Jog
terminal opens, the AC drive will decelerate from Jog Frequency to zero. The accel /
decel time is entered as Jog Accel / Decel Time (Pr.15). Multi-function Input terminals
(M1-M5) can also be used to initiate the JOG operation if so programmed.
