CHAPTER 1 RECEIVING AND INSPECTION
This B550 series AC drive has gone through rigorous quality control tests at the factory
before shipment. After receiving the AC motor drive, please check for the following:
Receiving
9
Check to make sure that the package includes an AC drive, the User Manual, and
rubber bushings.
9 Inspect the unit to insure it was not damaged during shipment.
9 Make sure that the part number indicated on the nameplate corresponds with the part
number of your order.

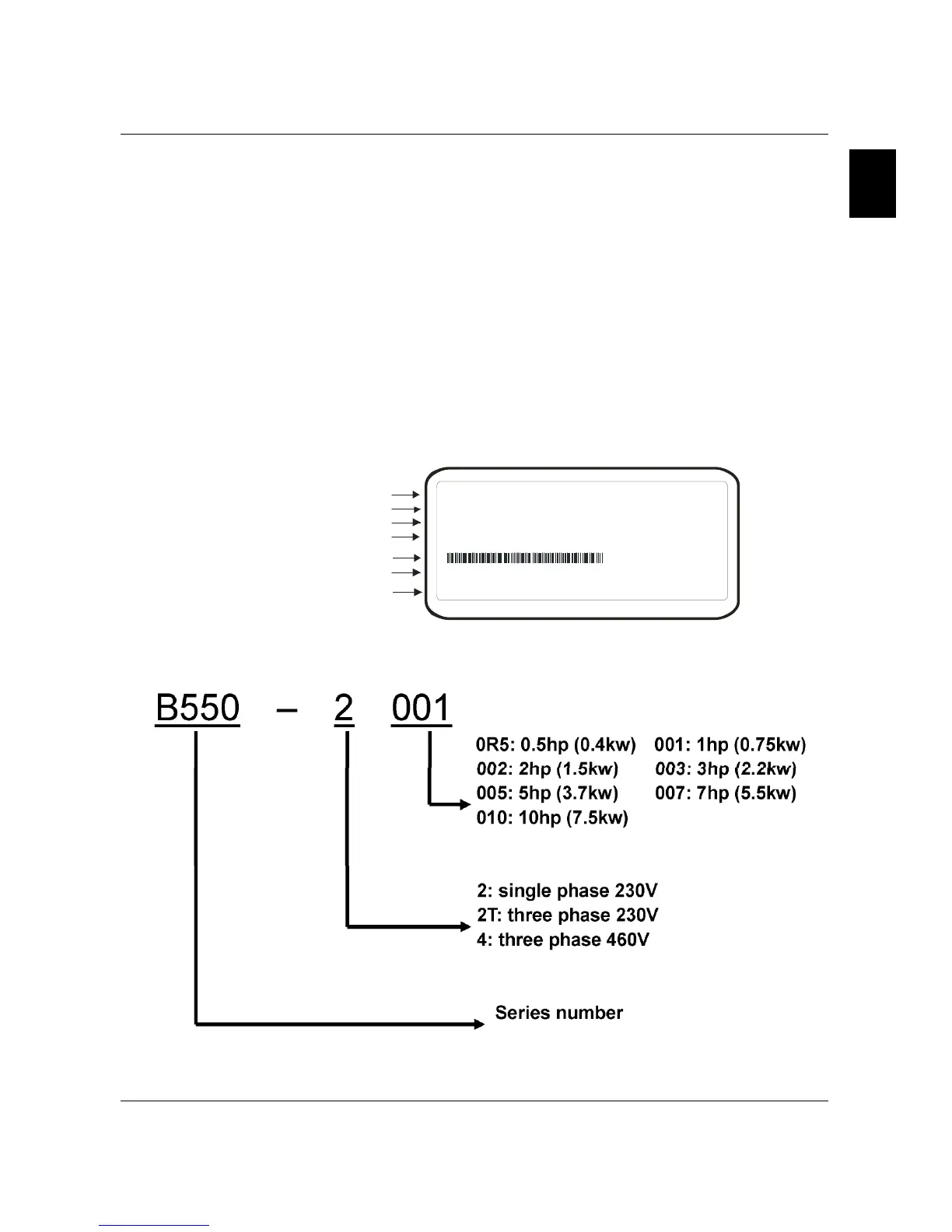

1.1 Nameplate Information: Example of 1HP 230V AC drive
MODE : B 5 5 0 - 2001
INPUT :3PH 200-240V 50/6 0Hz 6.0A
OUTPUT :3PH 0-240V 5.0A 1.9kVA 1HP
Freq. Ra nge :0.1~400Hz
007 M23A0T00112 30
Manufacturer:
AC Drive Model
Input Spec.
Output Spec.
Output Frequency Range
Bar Code
Serial Number
Software Version
1.2 Model Explanation
B550 Series sensorless vector frequency drive
