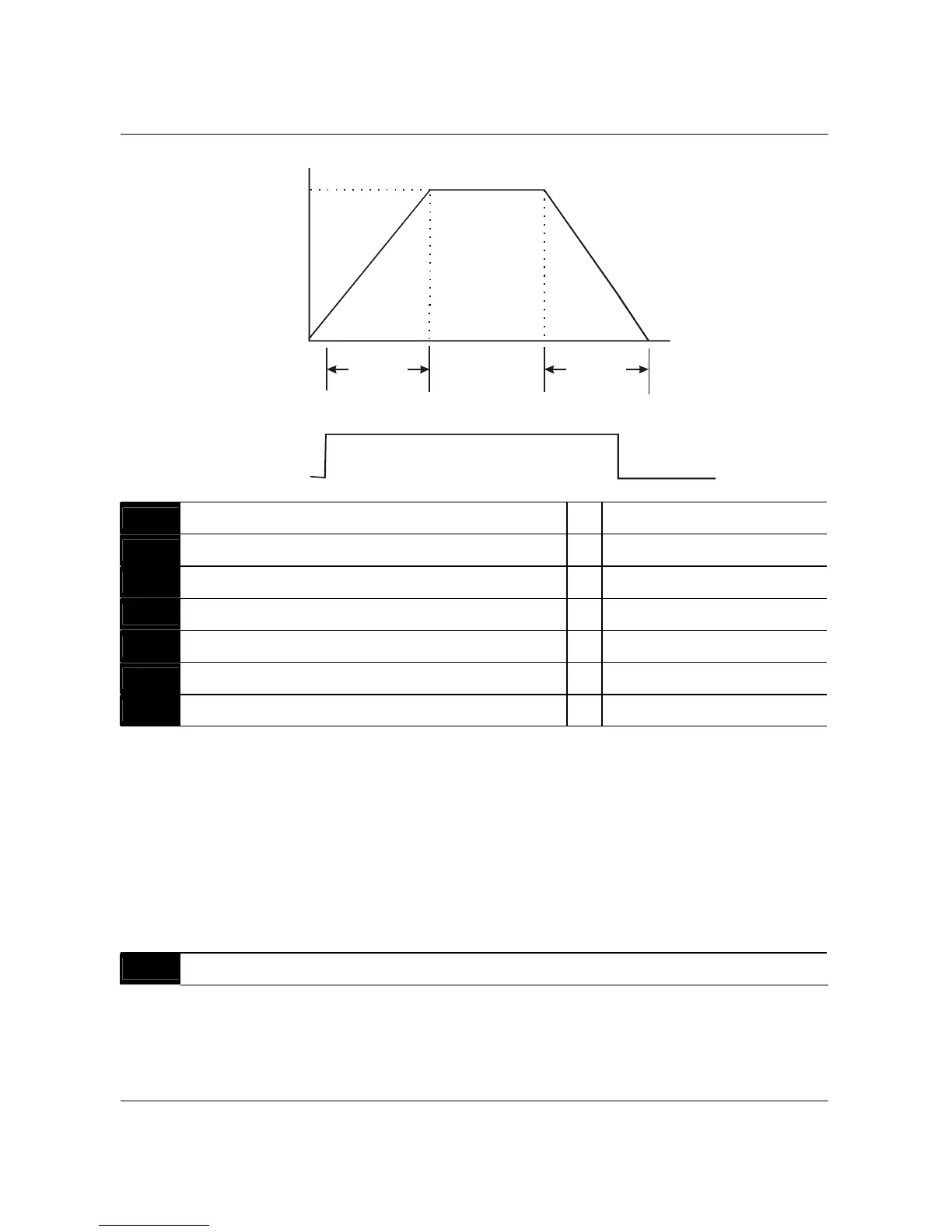

5-8
Frequency
Jog
Freq.
Pr.16
Acceleration Time
Deceleration Time
Time
Jog operation
command
ON
OFF
Pr. 15
Pr. 15
Pr.17
1st Step Speed Frequency
a
Factory Setting: 0.00 Hz
Pr.18
2nd
Step Speed Frequency
a
Factory Setting: 0.00 Hz
Pr.19
3rd
Step Speed Frequency
a
Factory Setting: 0.00 Hz
Pr.20
4th Step Speed Frequency
a
Factory Setting: 0.00 Hz
Pr.21
5th Step Speed Frequency
a
Factory Setting: 0.00 Hz
Pr.22
6th Step Speed Frequency
a
Factory Setting: 0.00 Hz
Pr.23
7th Step Speed Frequency
a
Factory Setting: 0.00 Hz
Settings 0.00 to 400.0Hz
Unit: 0.1 Hz
Multi-Function Input Terminals (refer to Pr.38 to Pr.42) are used to select Multi-Step
speeds. The desired speed frequencies are entered in Pr.17 to Pr.23. When the
associated multi-function input terminal is closed, drive will run at one of these specific
frequencies.
Multi-step speeds (Pr.17 to Pr.23), Pr.78, Pr.79, and Pr.81 to Pr.87; are used for multi-step
motion control, which is executed in an orderly manner, similar to a PLC program.
Pr.24
Reverse Operation Inhibition Factory Setting: 00
Settings 00 Enable REV operation
01 Disable REV operation
This parameter is used to disable motor rotation in reverse.
B550 Series sensorless vector frequency drive
