Beisler 100 - 3.4 Seam Images; 3.4.1 Sewing with Catch; 3.4.2 Sewing with Stitch Condensation; 3.4.3 Sewing with Stowing

2-14
Seam parameter 25 = 01 cm
When defining SP 23 (duration final roller) = 00 and NSP 23 = 00 sec., the
final roller won’t get active; the main clamp remains closed and drives without
clamp pressure to the insertion position.
Seam parameter 25 = 20 cm
Pic up parts with the main clamp until 20 cm before the insertion position.

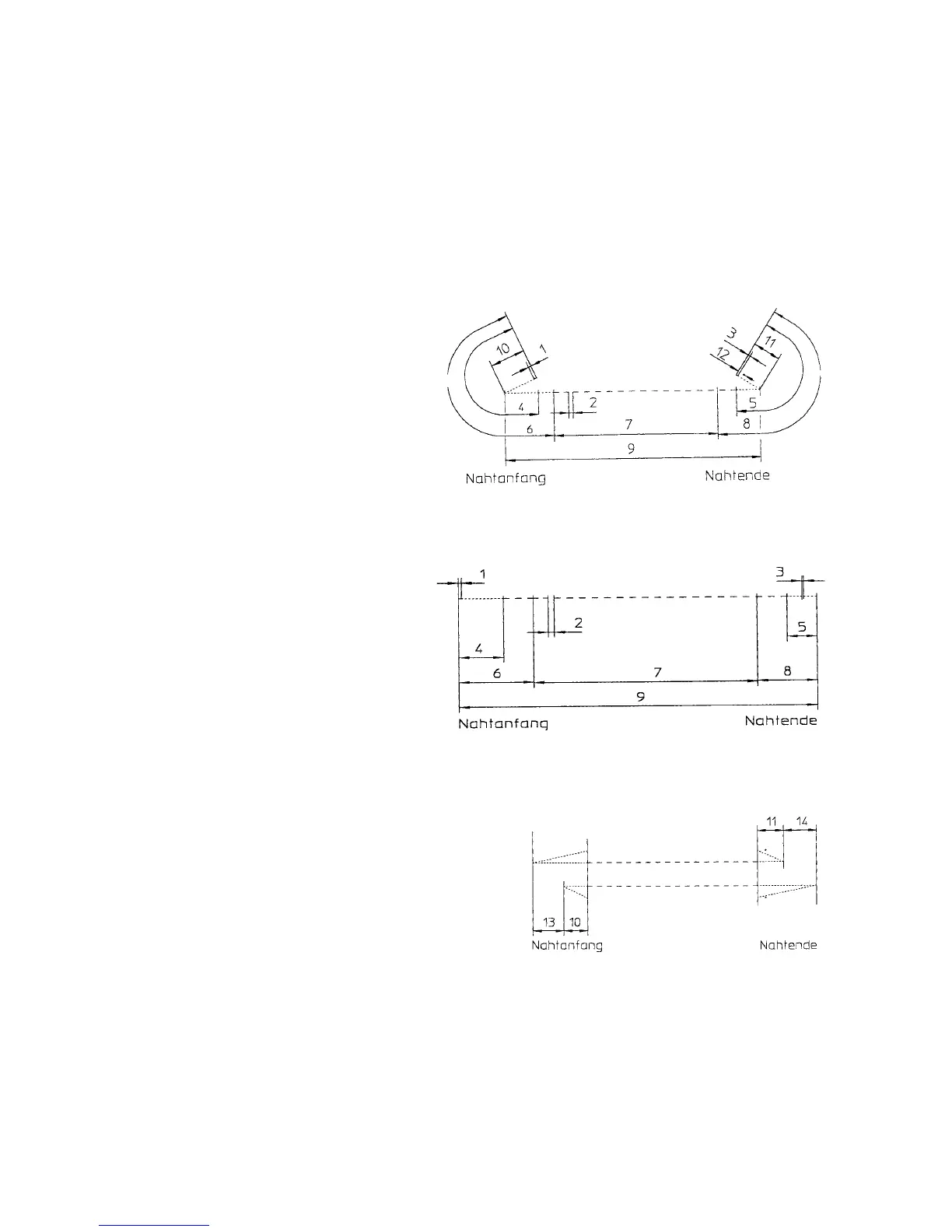

3.4 Seam images
3.4.1 Sewing with catch
3.4.2 Sewing with stitch condensation
3.4.3 Sewing with stowing
