1.11 Lateral clamp adjustment without
quick adjustments

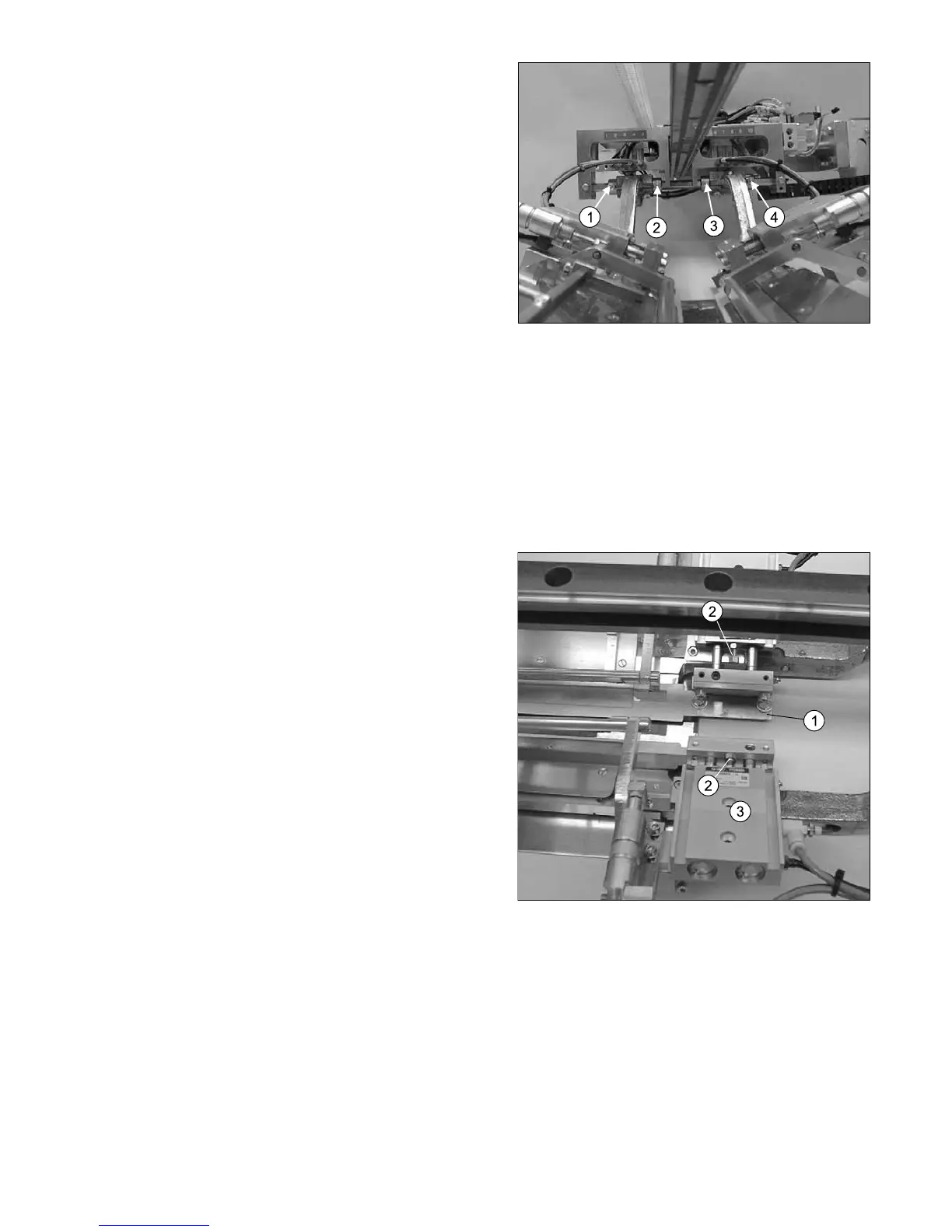

Mount the folder for the double piping. Adjust the inner
setting rings (2) (3) in a way that there is a distance of
1.5 mm between main clamp and sole.
Mount the folder for single piping. Move clamp and set-
ting rings (3) (4) to the outside until there is a distance of
1.5 mm between folder and sole.
Now block the lateral escape of the clamp arms by fi-
xing the setting rings.
1.12 Clamp adjustment double piping –
flap without quick adjustment
Here you will have to move one clamp arm with the set-
ting rings when changing between folder double or sin-
gle piping.
Loosen the setting ring (3) or (4) and move them toge-
ther with the clamp arm until there is a distance of 1.5
mm between double piping/flap and main clamp.
1.13 Adjust folding slide path
<power off> <release pressure>
The distance between the folding slide (1) driven in and
out must be 5 mm.
If required you can adjust the setting screw (2) at the
cylinder (3).
